New Stock BSV 3.5 bbl Brewhouse

Portland, OR

orCall (503) 222-7079

Description

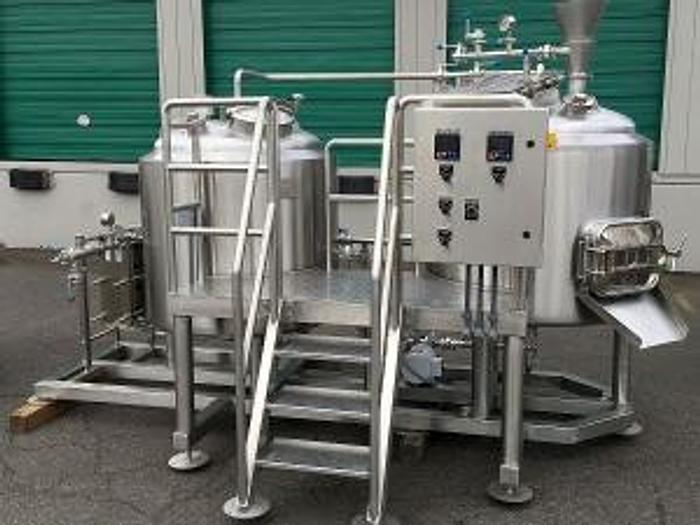

Item is a new stock BSV 3.5 bbl skid mounted brewhouse. The basic unit is quoted with the steam heating option but direct fired heating is also available and quoted below. Included are the following-

3.5 bbl mash/lauter tun, insulated and s/s clad, milled false bottom, open top for manual mixing, sparge ring - Closed top with manway door add $700

3.5 bbl steam heated brewkettle/whirlpool, insulated and s/s clad with dimple jacket for steam heating

Thomsen washdown brewhouse pump with vfd

Brewers skid, platform and ladder with brewhouse piping package

2sqMtr stainless heat exchanger with center plate for dual stage operation with glycol and water

Brewhouse control panel with digital controllers for temp control and dial controls for pump vfd

OPTIONS-
Seperate steam heated 7 bbl HLT or glycol chilled CLT, insulated and s/s clad with dimple jacket for temp control - $6500 each

HL or CL Pump - $1900

D/F heating option to include insulated and closed firebox and forced air burner (no ring burners) - $2900

Seperate insulated and s/s clad 7 bbl HLT with electric immersion heaters - $6200

Combination MLT/HLT, mounted on brewhouse skid with MLT built over the top of the HLT. HLT is either steam heated or electrically heated with immersion heater - $3700

Specifications

Model3.5 bbl BSV
ConditionNew
Stock Number6762
