Used CSI Central States Industrial skid mount CIP system

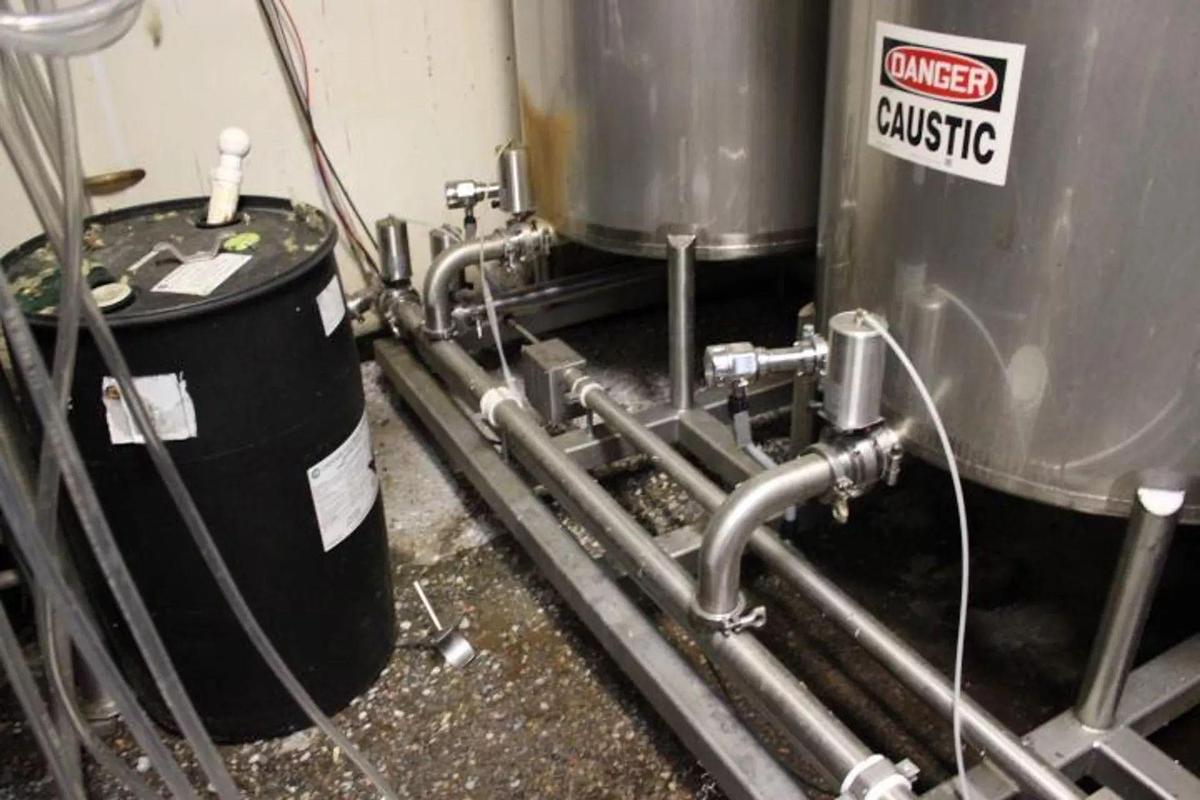

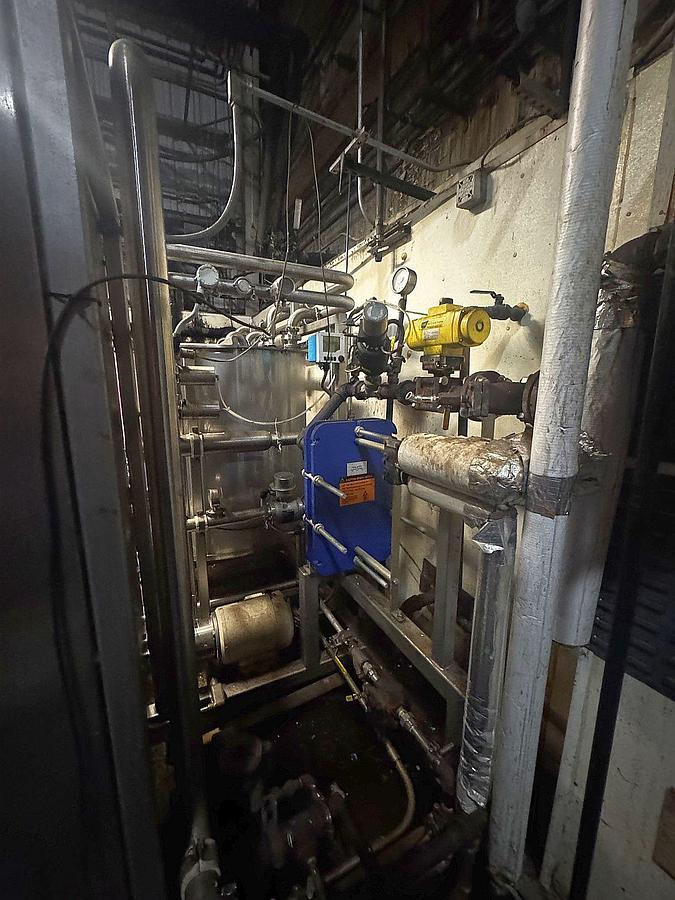

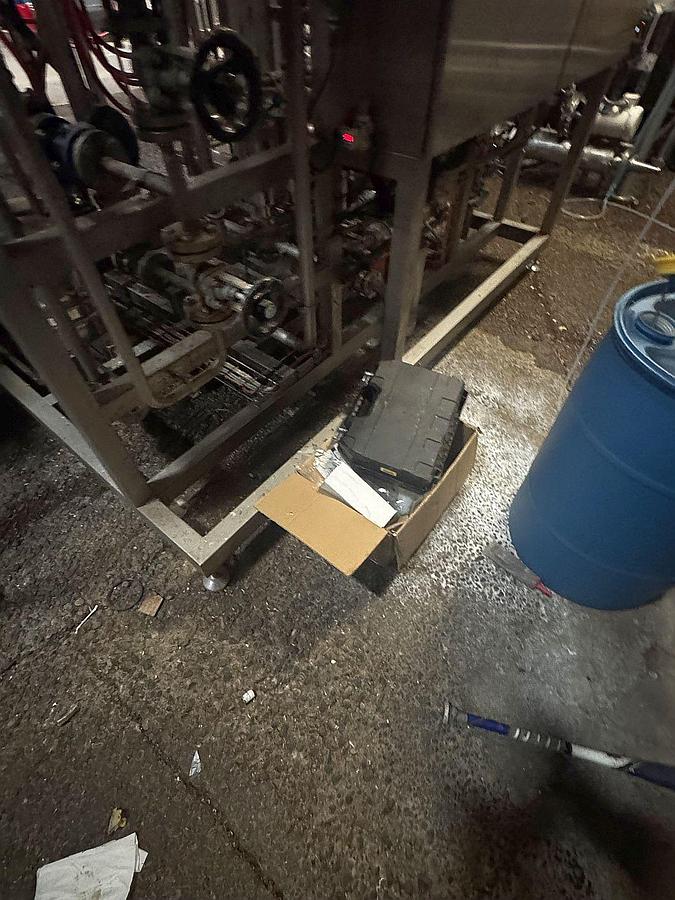

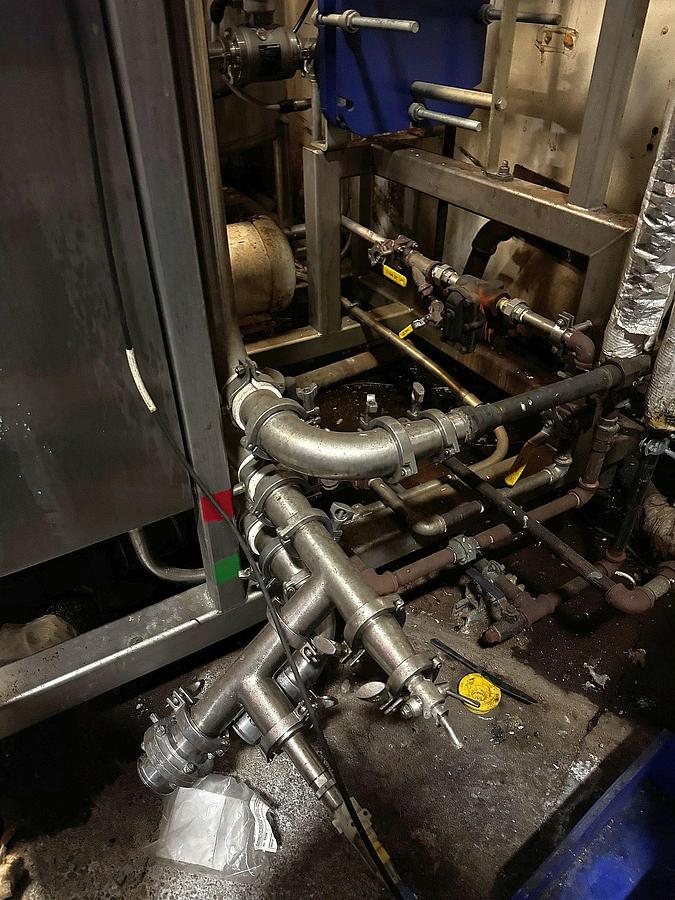

Item is a used CIA Central States Industrial skid mounted CIP system. The system was installed in approximately 2019/2020 in a medium sized craft brewery. The CIA system has the following unique features-

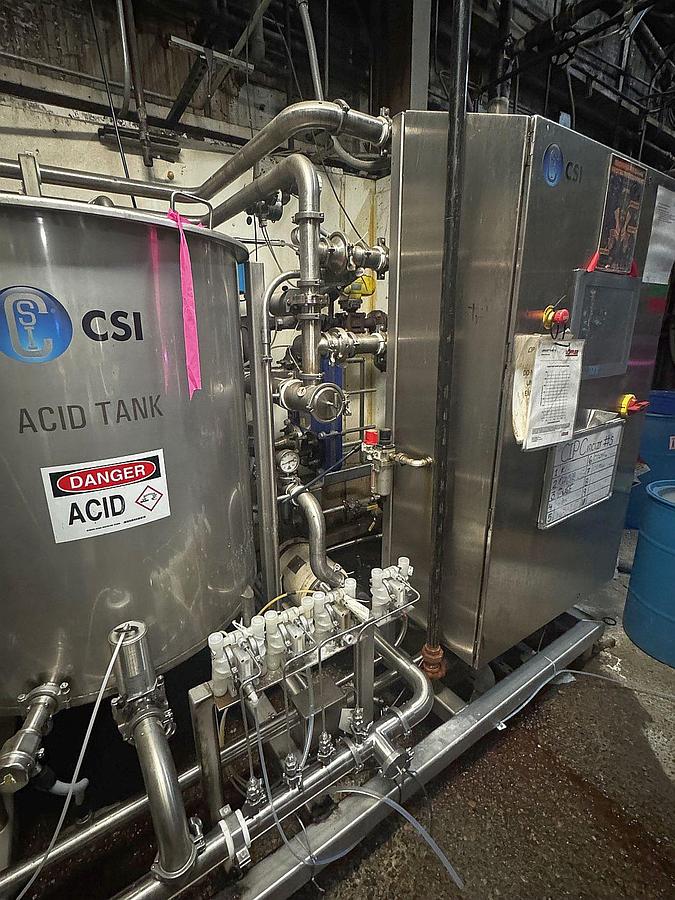

Central States Industrial (CSI) three-tank Clean-in-Place (CIP) system is a high-capacity, automated cleaning skid designed to sanitize processing equipment, piping, and vessels without disassembly. Compared to single- or two-tank setups, a three-tank configuration offers greater flexibility and efficiency by allowing the system to pre-heat and store multiple cleaning solutions simultaneously.

Core Components & Configuration

The three-tank system typically includes dedicated reservoirs for different stages of the cleaning cycle:

• Water/Rinse Tank: Used for pre-rinsing loose debris and final rinsing of cleaning agents.

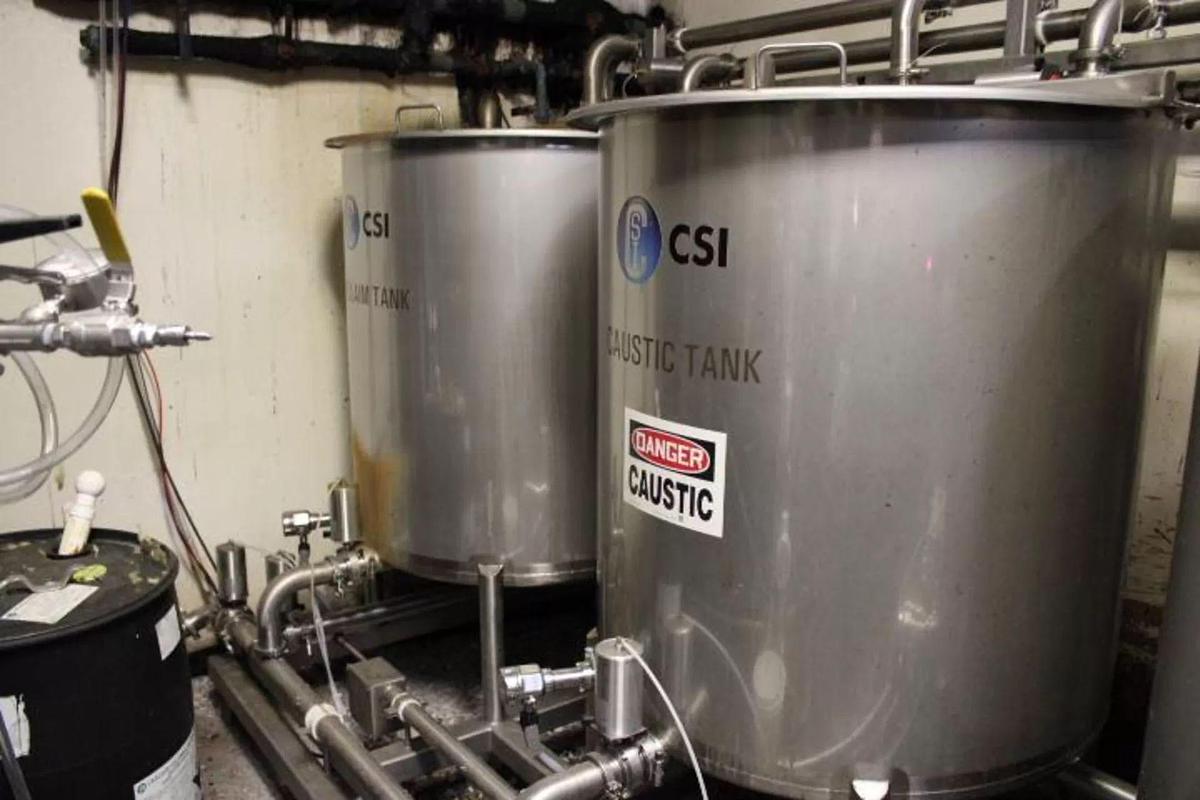

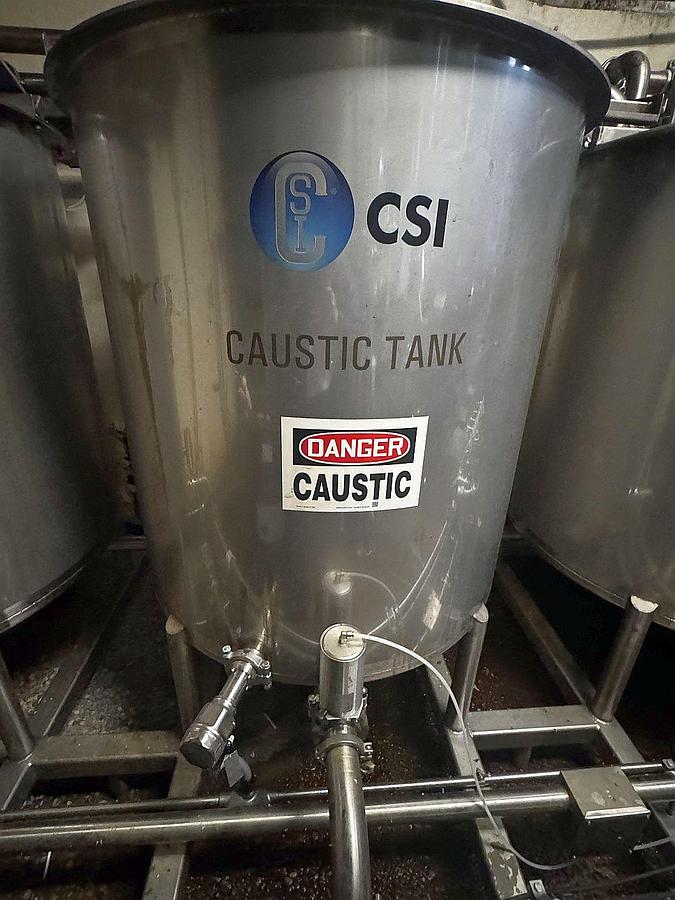

• Caustic Tank: Stores an alkaline detergent (typically 140–185°F) used to break down organic soils like fats and proteins.

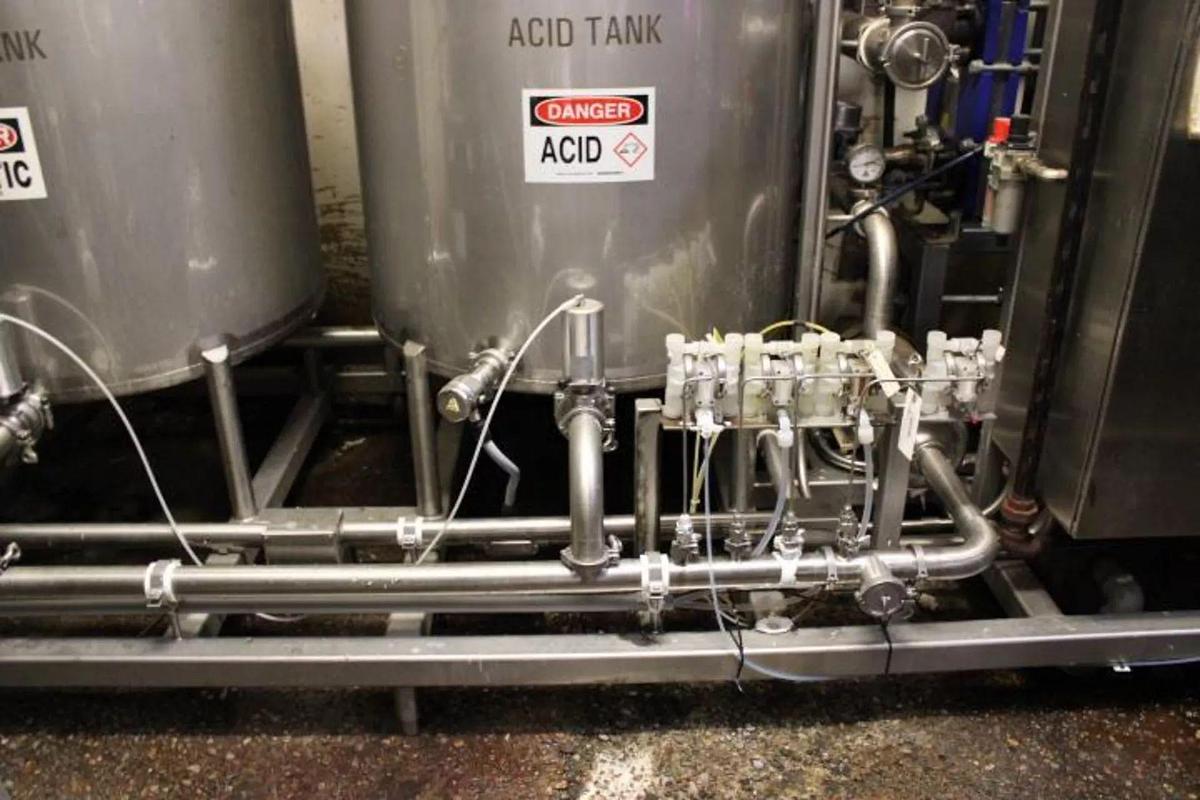

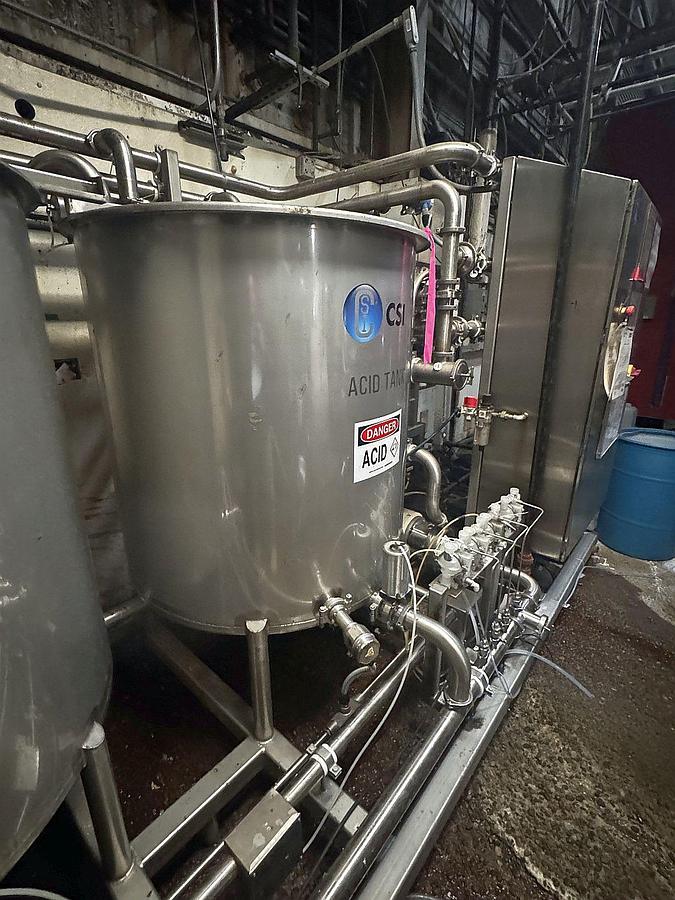

• Acid Tank: Stores acidic solutions (typically 130–150°F) to remove mineral scale and neutralize pH.

Key Features

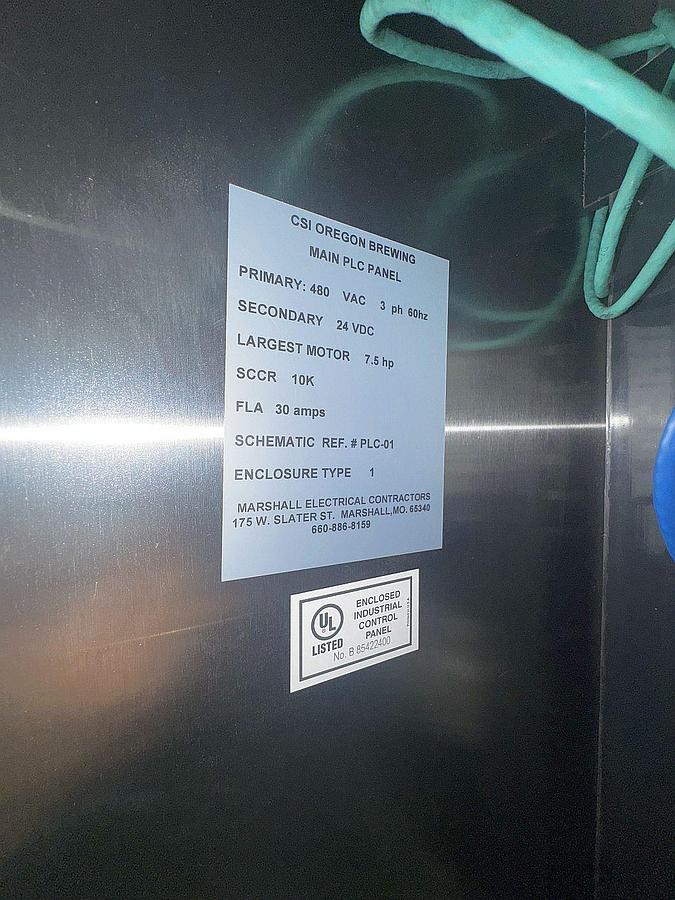

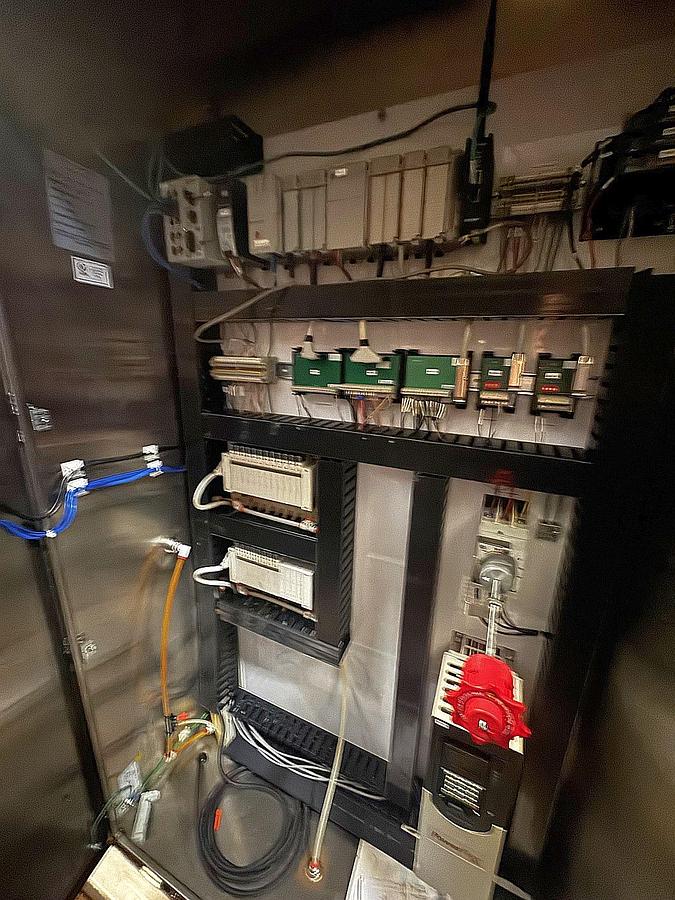

• CIP 2.0 Controls: CSI systems often utilize state-of-the-art Rockwell Automation/Allen Bradley technology to automate and track cycle analytics like temperature, flow, and chemical concentration.

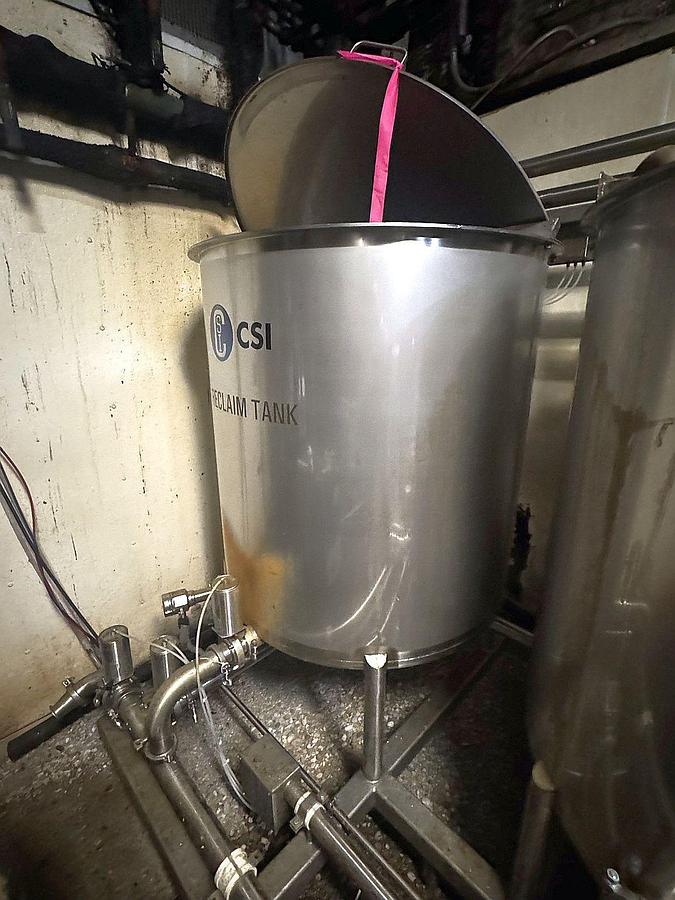

• Resource Recovery: The multi-tank design allows for the recovery and reuse of caustic and acid washes, significantly reducing water, chemical, and utility costs.
• Faster Turnaround: By having all solutions pre-filled and pre-heated, the system minimizes downtime between production runs.

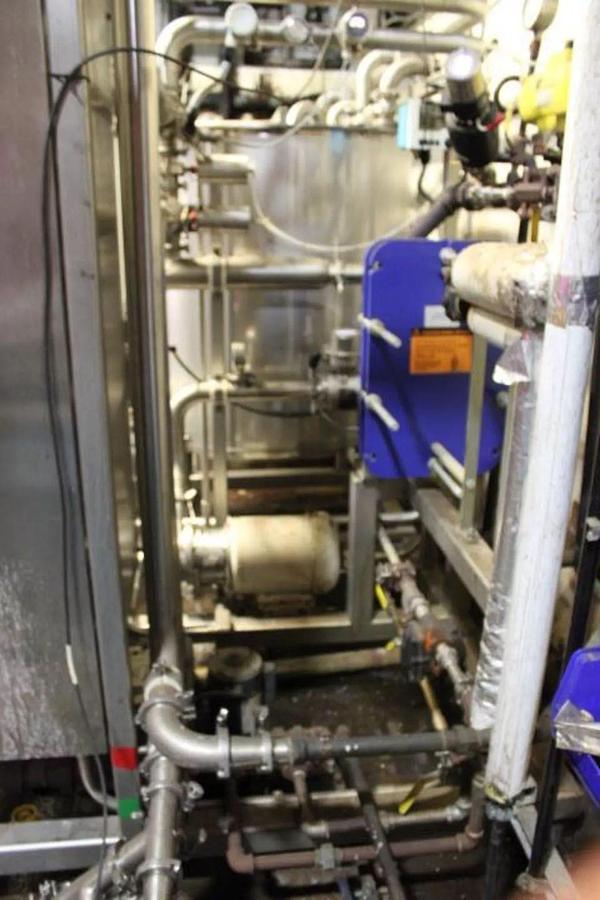

• Hygienic Design: Built with 316L stainless steel wetted parts and high-efficiency sanitary pumps, such as the Alfa Laval LKH series, to ensure thorough scrubbing and prevent contamination.

Typical Applications

These systems are primarily used in high-volume, regulated industries:

• Food & Dairy: Effective at removing stubborn milk scale and proteins.
• Beverage & Brewery: Used for rapid cleaning of large fermentation and storage tanks.
• Pharmaceutical: Provides the precise, repeatable cleaning and data logging required for regulatory compliance.
