3.5 bbl BSV Direct Fired Brewhouse

3.5 bbl BSV Direct Fired Brewhouse

Portland, OR

orCall (503) 222-7079

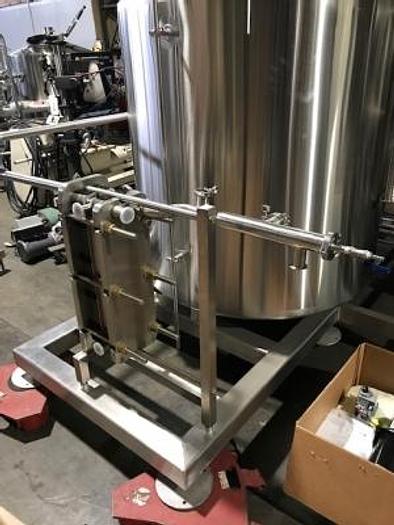

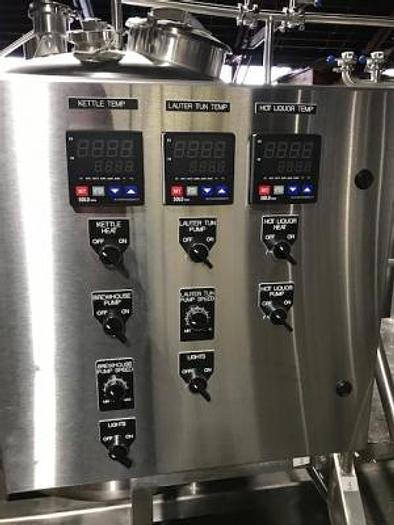

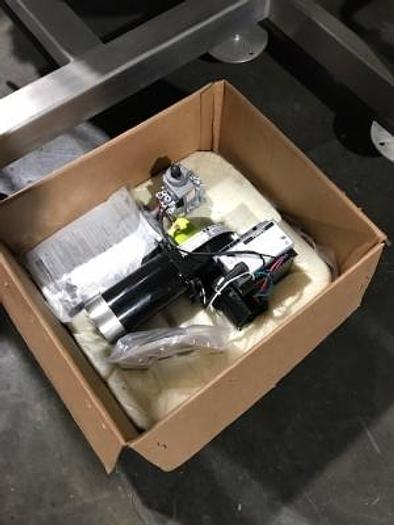

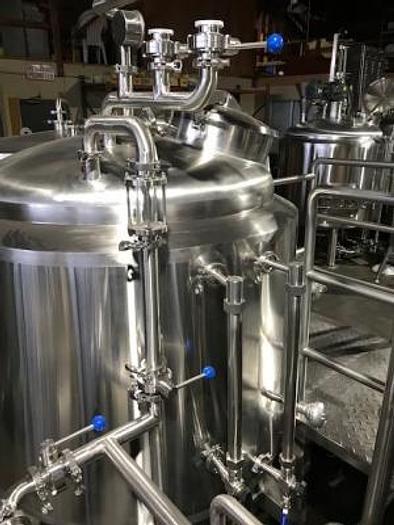

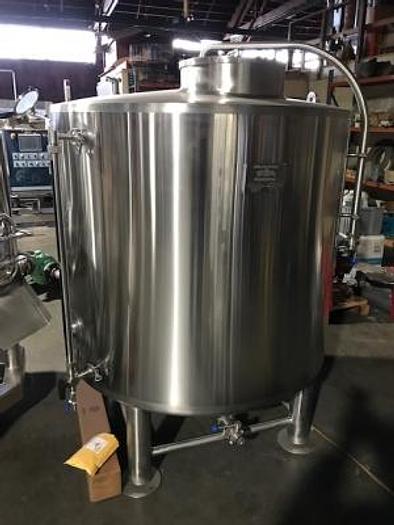

Item is a new stock BSV 3.5 bbl skid mounted brewhouse. This system is skid mounted and hard piped for easy installation. This is a scaled version of our popular skid mount 7 bbl system. Included are the following- 3.5 bbl mash/lauter tun, insulated and s/s clad, milled false bottom, dome top with hinged manway door, sparge ring, cip, tank light, grist hydrator, side door for spent grain removal 3.5 bbl direct fired brewkettle/whirlpool, insulated and s/s clad with enclosed insulated fire box and firebox vent, steam vent with condensate drip ring, MIDCO Economite forced air burner set up for natural gas (easy conversion to propane) Thomsen washdown brewhouse pump with vfd Brewers skid, platform and ladder with brewhouse piping package including water mixing station 2sqMtr stainless heat exchanger with center plate for dual stage operation with glycol and water Brewhouse control panel with digital controllers for temp control and dial controls for pump vfd, UL listed and manufactured in Oregon. Separate 7 bbl HLT, insulated and s/s clad with port for electric immersion heater (controls built into brewhouse panel), float control, top manway, overflow protection, site glass, recirc loop Thomsen washdown HLT pump


Stock Number7428
