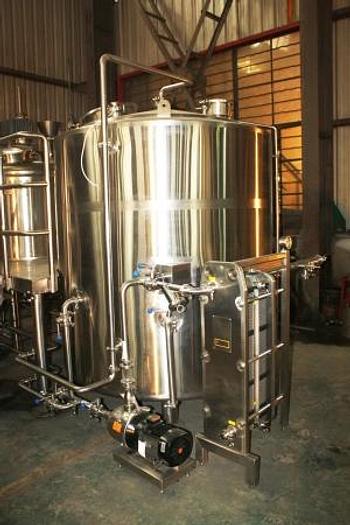

New Stock BSV 10 bbl Brewhouse

New Stock BSV 10 bbl Brewhouse

Portland, OR

orCall (503) 222-7079


Item is a new stock 10 bbl BSV Brewhouse. We utilize all stainless heat exchangers (dual stage) and Thomsen pumps with our BSV systems. We also use off the shelf components for our brewhouse control panels to insure limited downtime when components fail. Included with this system are the following items: 10 bbl insulate and stainless clad mash/lauter with milled false bottom, sparge ring, CIP 10 bbl brewkettle/whirlpool with insulation and s/s cladding, designed for steam heating, tangential inlet for whirlpool, side and bottom drain Thomsen (US) Kettle and wort pumps with VFD's 20 bbl insulated and steam jacketed HLT with HLT pump Complete brewhouse piping and brewers platform constructed of stainless steel Dual stage (glycol and water) stainless steel plate and frame heat exchanger, 5sqM Brewhouse control panel (UL Listed with stainless enclosure) with temp controls for kettle and hlt, along with controls for VFD's for pumps. OPTIONAL- -Direct heating option - includes forced air burner and insulated enclosed firebox with vent - Add $3100 -Immersion heaters for HLT - Add $1450 -motorized rake with VFD for MLT - ADD $3500 -Combi vessel option - modify system to include a combination MLT over HLT - DEDUCT $3500 -Skid mount option - $1800 (this does not include the seperate HLT) -Hopback - $1900 -Grant - $1500 -Free standing grist case - $3900 -20 bbl Cold liquor tank and pump - $12,300


Stock Number6766
