New Stock Letina 5285Gal/20,000L Closed Top Jacketed Storage Tank

New Stock Letina 5285Gal/20,000L Closed Top Jacketed Storage Tank

Portland, OR

orCall (503) 222-7079

Description

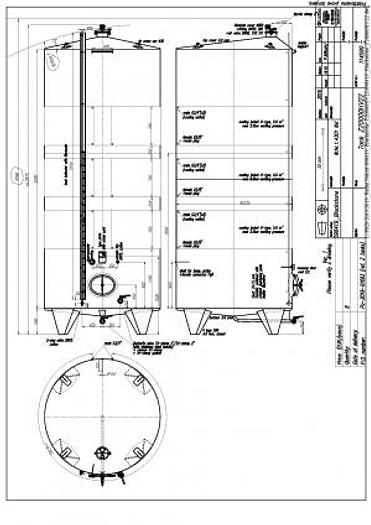

Item is a new stock Letina 20,000L (5280 Gallon) closed top jacketed storage tank with valves and fittings. Specifications are as follows: — volume approx. 20000 lit — coat diameter 2230 mm, height 5000 mm — total height approx. 5900 mm — 4 legs, height 500 mm, closed, adjustable M30 — anchors — conical centered bottom — conical off-centered top — manhole cover, dia. 200 mm — breath valve, DIN 50 — CIP pipe — spray ball, dia. 90 mm — butterfly valve, tri-clamp 2" — lifting lugs — ladder support — type plate with note card — thermometer, analog — sample tap, DIN 15 — level indicator, dia. 16 mm, scaled, open — manway door, oval, 440 x 340 mm, type CL — cooling jacket, 5 + 5 m2, max. 2.5 bar — cooling jacket, 1 + 1 + 1 m2, max. 2.5 bar — thermowell — partial discharge, butterfly valve, tri-clamp 2" — total discharge, butterfly valve, tri-clamp 2" — material AISI 304, BA, mirror inside, circle brushed outside

Specifications

ModelZ20000HV22
ConditionNew
Stock Number7328
