NS Letina 2450L (650Gal) closed top tank

NS Letina 2450L (650Gal) closed top tank

Location:Portland, OR

orCall (503) 222-7079

Description

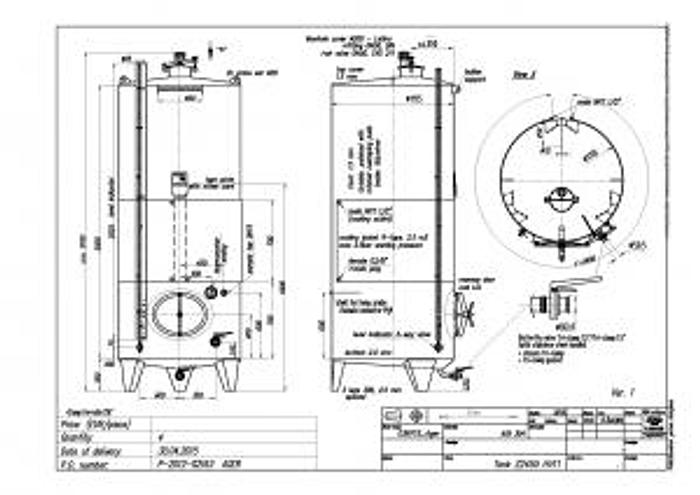

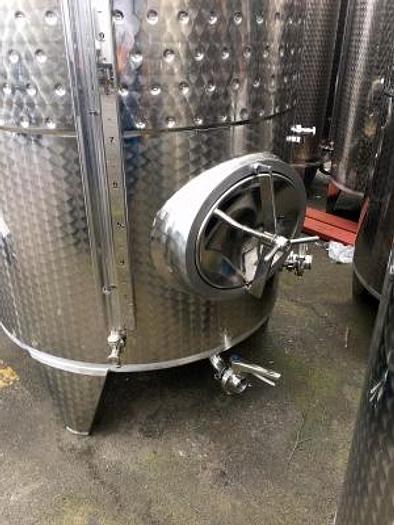

New Stock - Letina 2450L (650Gallon) closed top jacketed storage tank. Specifications as follows: - volume approx. 2450 lit - coat diameter 1116 mm, height 2500 mm - total height ca. 3100 mm - 3 legs, height 300 mm, opened - conical off-centered bottom and top - manhole cover, dia. 200 mm - breath valve, DIN50 - ladder support - type plate with note card - thermometer, analog - sample tap, DIN 15 - manway door, oval 440 x 340 mm, type CL - cooling jacket, 2.5 m2, max. 2.5 bar - thermowell - partial discharge, ball valve, tri-clamp 1.5" - total discharge, butterfly valve, tri-clamp 1.5" - material AISI 304, BA, mirror inside, circle polished outside

Specifications

ModelZ2450HV11
ConditionNew
Stock Number6865
