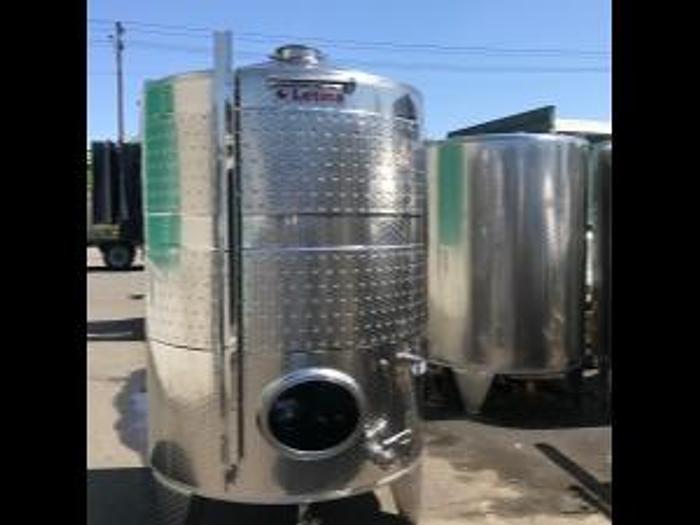

New Stock Letina 1100gal/4150L Closed Top Jacketed Storage Tank

New Stock Letina 1100gal/4150L Closed Top Jacketed Storage Tank

Location:Portland, OR

orCall (503) 222-7079

Description

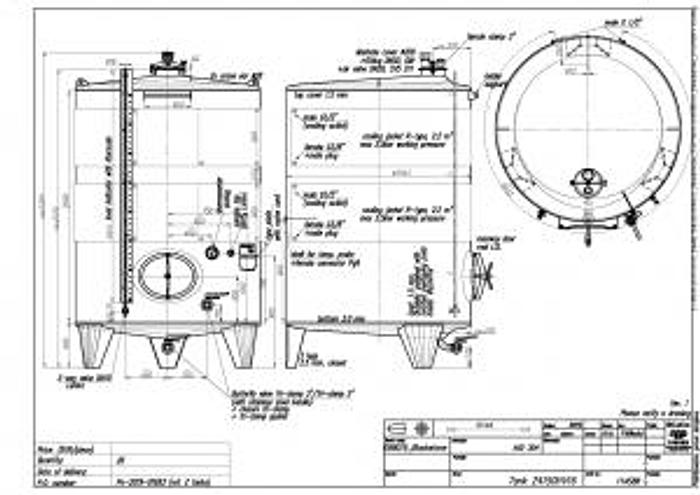

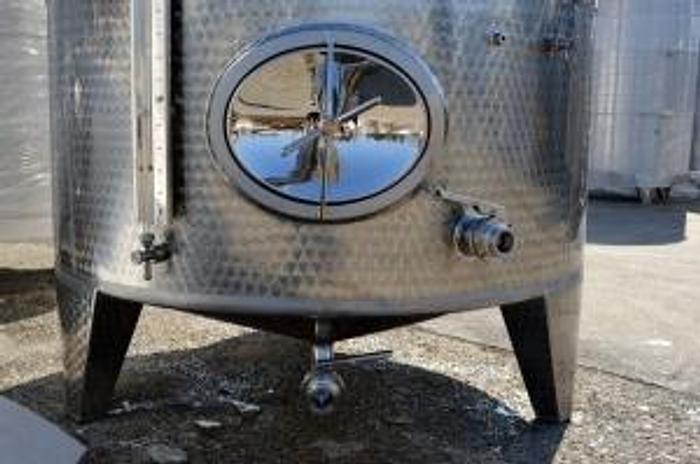

New Stock - Letina Inox 1100 gallon closed top jacketed storage tank. - volume ca. 4150 lit - coat diameter 1593 mm, height 2000 mm - total height ca. 2800 mm - 3 legs, height 400 mm, opened - conical off-centered bottom and top - manhole cover dia. 200 mm - breath valve, DIN50 - ladder support - type plate with note card - thermometer, analog - sample tap DIN 15 - level indicator, dia. 16 mm, scaled - manway door, oval, 340x330 mm, type CL - cooling jacket, 2 + 2 m2, max. 2.5 bar - thermowell - partial discharge, butterfly valve, tri-clamp 2 in - total discharge, butterfly valve, tri-clamp 2 in - material AISI 304, BA, mirror inside, circle polished outside

Specifications

ModelZ4150HV16
ConditionNew
Stock Number6512
