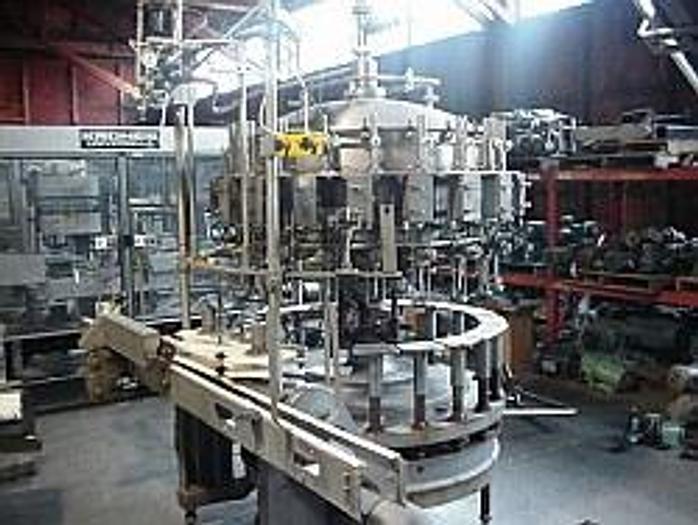

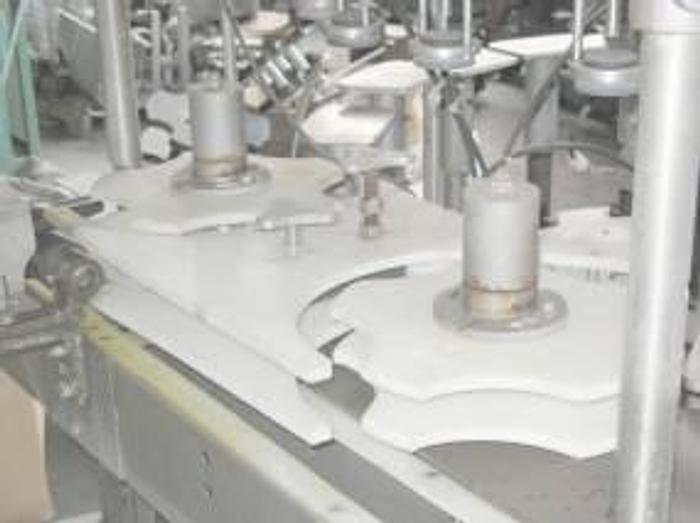

Horix Rotary Filler

Portland, OR

orCall (503) 222-7079

Description

Used Horix, model HA-20 Hytamatic filler. The machine was manufactured in 1980. This is a pressure filler utilizing a level sensing, no contact valve for highly accurate fills. Valve operation is pneumatic. Machine is equipped with no container/no fill and no container/no blow down capability. The pitch diameter is 48 inches and the machine is capable of filling a container of 6.5 inch diameter at each station. The machine was previously running maple syrup and a lemon concentrate at a major food company. Included with the machine is an extensive selection of spare maintenance parts and the manual. There are six sets of change parts which include two 12 oz., 15 oz., 24 oz., 32 oz., and a set for 2 liter. Machine operates from left to right and is currently set up for 460 volt 3 phase power.

Specifications

ModelHytamatic-20
ConditionUsed
Stock Number3144
Part numR-20-RH-527
