Pub 7 bbl brewery

Portland, OR

orCall (503) 222-7079

Description

Item is a 7 bbl Pub Manufacturing skid mounted brewsystem with support equipment. The system is currently in storage and ready for shipment. Included are the following:

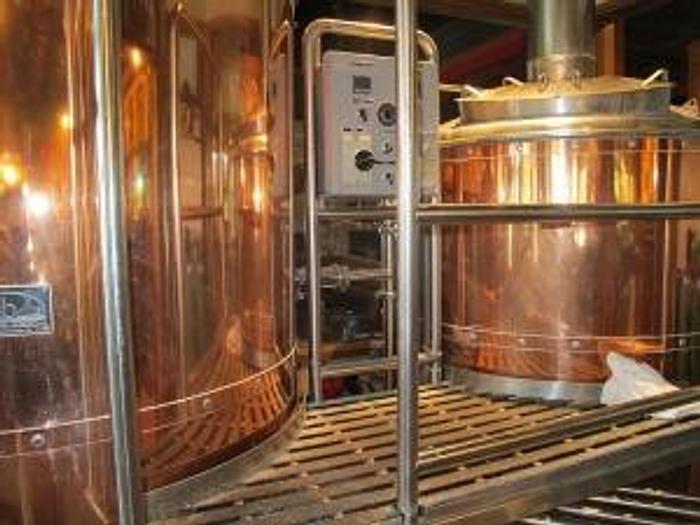

Copper clad skid mounted steam heated 7 bbl Pub brewsystem-

Steam heated kettle that sits on the right side of the brewhouse skid. The combination mash/lauter - hot liquor tank sits on the left side of the skid. The hot liquor tank is steam heated.

The brewer’s platform includes a control panel and valve manifold, transfer pump, and thermaline T4CH heat exchanger.

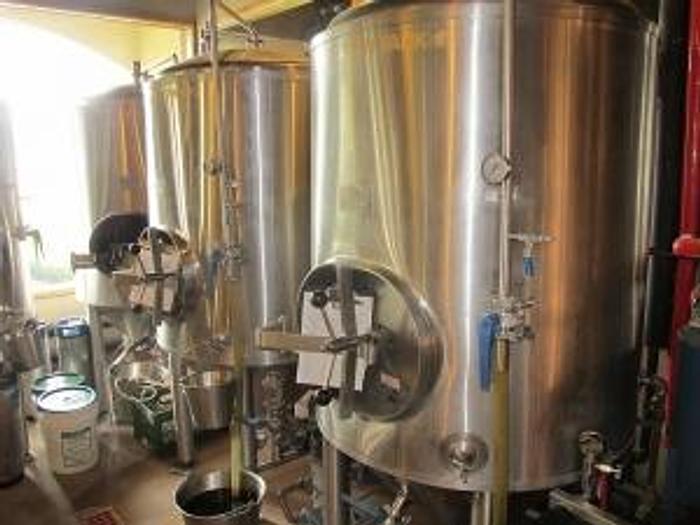

Four (4) Pub Brewing 7 bbl conical bottom fermenters, jacketed, insulated and clad with stainless steel and brass bands, single zone jacket, side manway, cip, prv, sample valve, and butterfly valves.

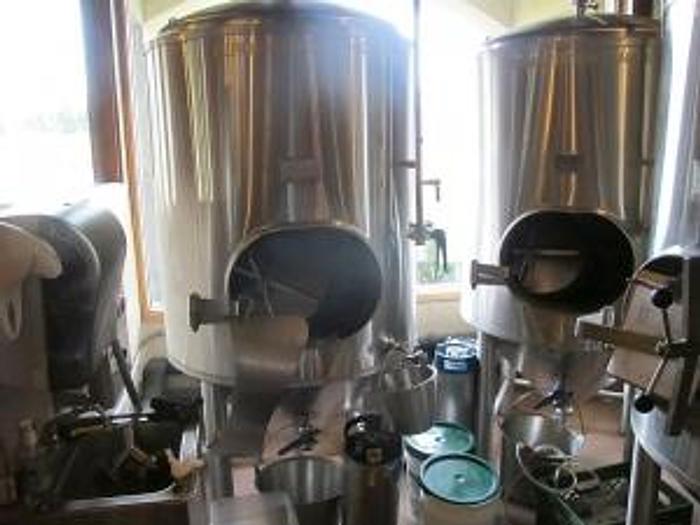

Seven (7) Pub Brewing 7 bbl single wall vertical serving vessels, butterfly valves, prv, cip, sample valves. Dome top dish bottom side manway.

Secondary Thermaline heat exchanger

Plate and frame filter with 20 plates

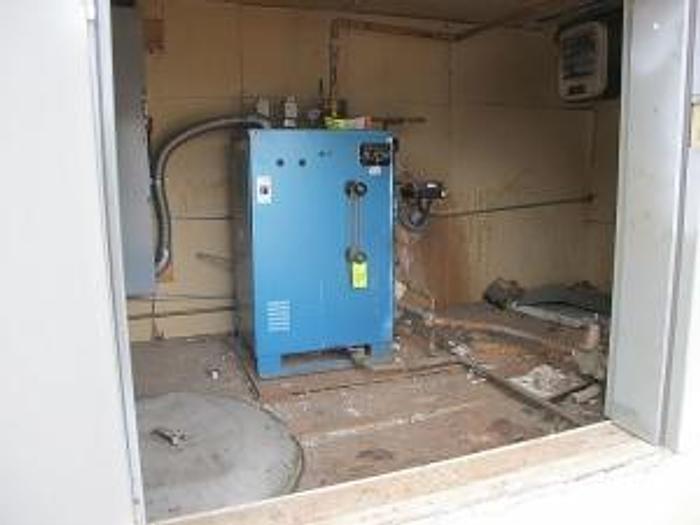

Sussman electric steam boiler

5hp glycol chiller - Heatcraft - packaged unit with reservoir and compressor built in to skid mounted system

Cellar temperature control panel

Misc brewers hose, clamps, fittings to include-
brewers hose
stainless buckets - 5 gal and 2 gal
Brewers paddle

Specifications

ConditionUsed
Stock Number6617
