New Stock BSV 7 bbl Brewhouse
No longer available
New Stock BSV 7 bbl Brewhouse
Portland, OR
Description

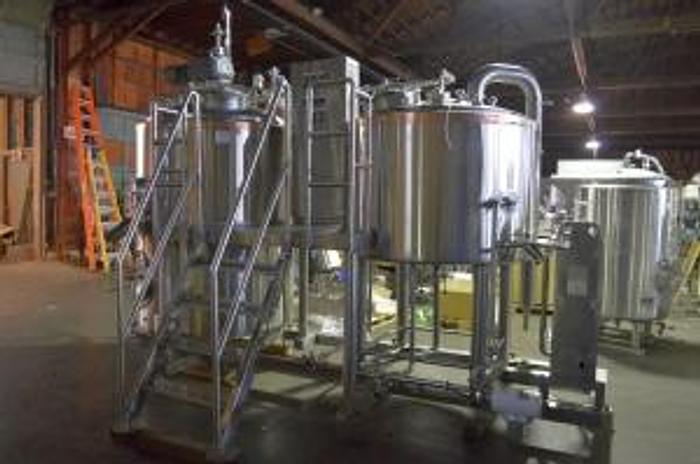

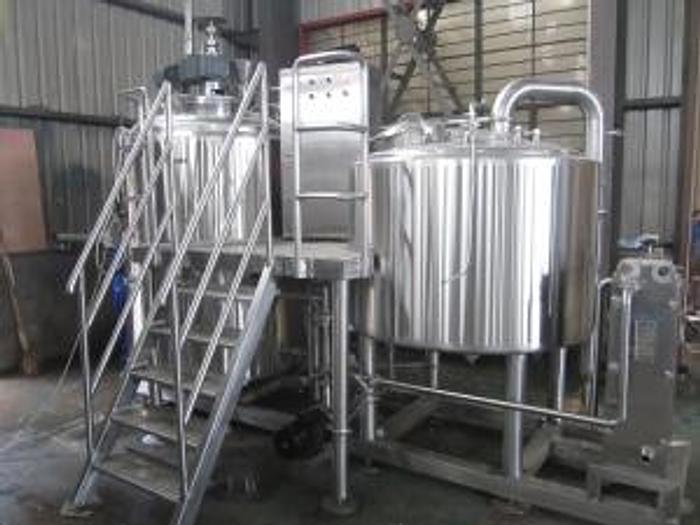

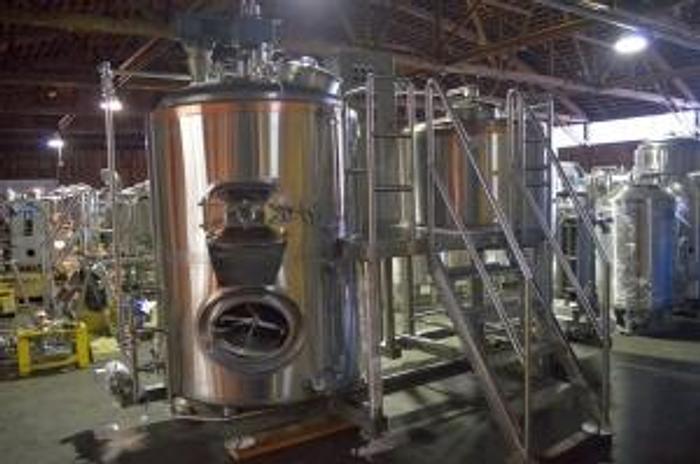

This item is our BSV 7 bbl skid mounted brewhouse. The system is offered as a steam heated system, however, we have also included the upgrade price for direct fired heating.
This is a standard 2 - vessel combi type system but a seperate HLT can also be ordered. Included are the following:
Combi Vessel
-7 bbl Mash/Lauter tun, insulated and s/s clad with milled screen, top manway door, side door for grain out, sparge ring, hydrator, tank light
-Hot Liquor Tank, insulated and s/s clad with dimple jacket for steam, side manway door
Brewkettle/ Whirlpool
-7 bbl with dimple jacket for steam, insulated and s/s clad, top manway door, tangential whirlpool inlet, tank light
Thomsen washdown Kettle and vorlauf pumps with VFD's
Brewer's platform, stairs, and complete brewhouse piping package
3sqMtr stainless heat exchanger with stainless end plated and center plate for dual stage operation - glycol and water
UL Listed brewhouse control panel with digital controllers and pump vfd's - built in Oregon
OPTIONS-
-Direct fired option - Forced air burner and insulated enclosed firebox for kettle with electric immersion heater for HLT - $3700
-Eliminate the combi tank and utilize a seperate 15 bbl HLT, non skid mounted, with pump and controls - $7500

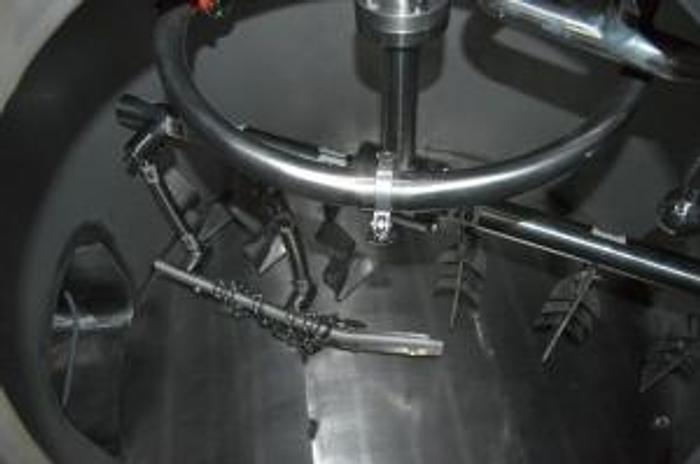

-Motorized rake with drive and vfd - $4900
-1000# capacity grist hopper mounted on legs - $3100
-Steam condensor for the Brewkettle - $1800
Specifications
Model | 7bbl Skid |
Condition | New |
Stock Number | 6761 |
