Used 4 bbl direct fired brewsystem

Used 4 bbl direct fired brewsystem

Portland, OR

orCall (503) 222-7079

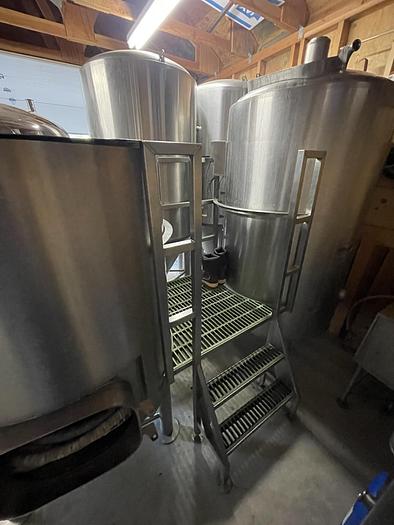

Item is a used brewsystem that was last in operation in a small brewpub. The brewhouse was built by Elliott Bay Brewing in the Pacific Northwest. This is a direct fired brehwouse with some really nice features including:

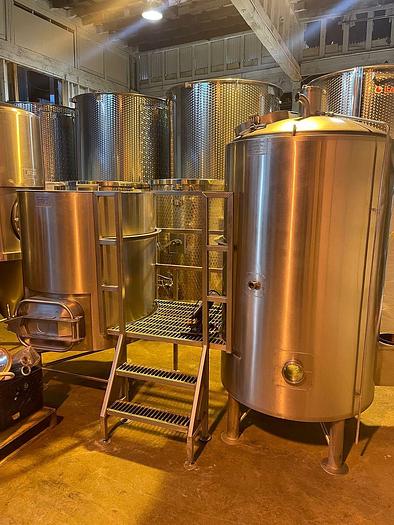

-Ellliott Bay 4bbl direct fired brewkettle/whirlpool - 7' tall x 42" OD, whirlpool inlet, CIP, digital temp controller, vent stack, internal trub dam, lifting eyes.

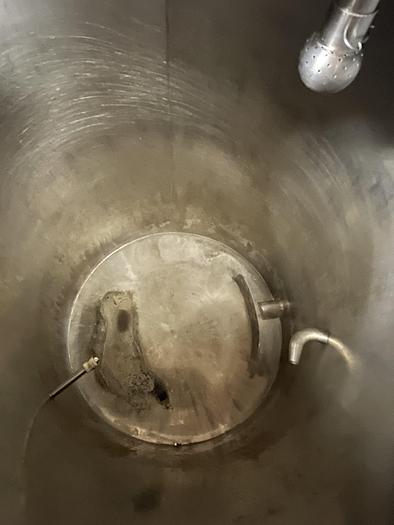

-Elliottt Bay 4 bbl MLT with false bottom and side door for grain out - open top with lid, perforated false bottom, sparge arm, 40" OD x 5" tall (42" straight side)

-Brewhouse platform, 41" deep x 3' wide x 62" tall (2' base)

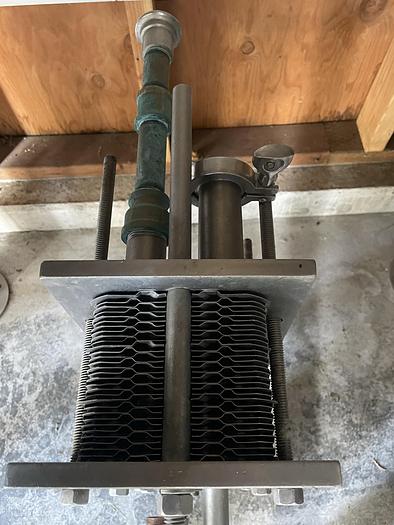

-Heat exchanger, Thermaline, single stage

-Brewhouse pump, centrifugla, 1ph

-(2) Instantaneous on demand hot water heaters

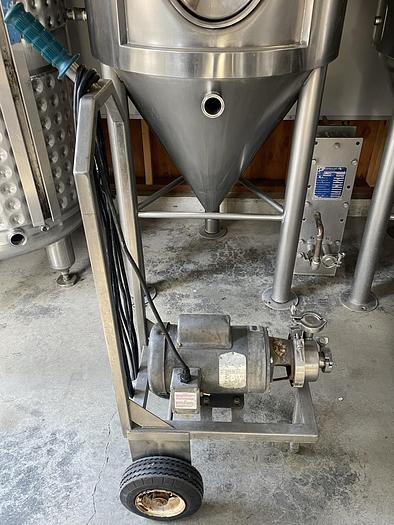

-Portable pump on cart - centrifugal, stainless, single phase

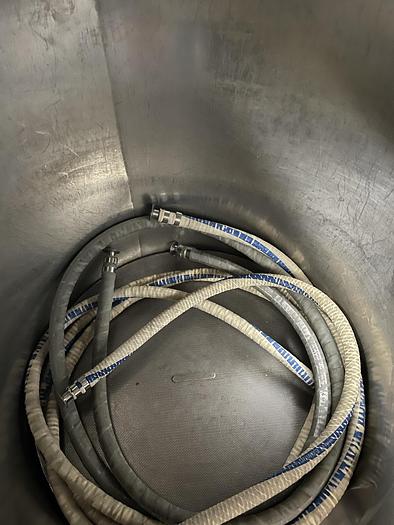

-Some miscellaneous brewers hose

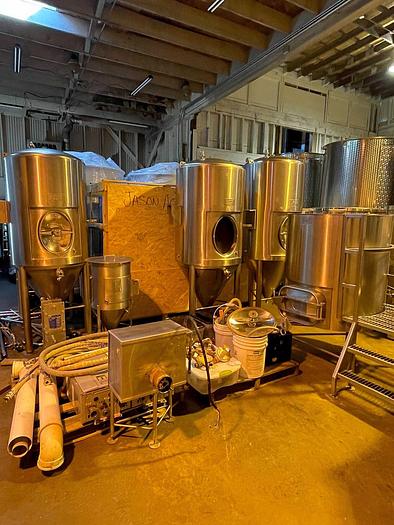

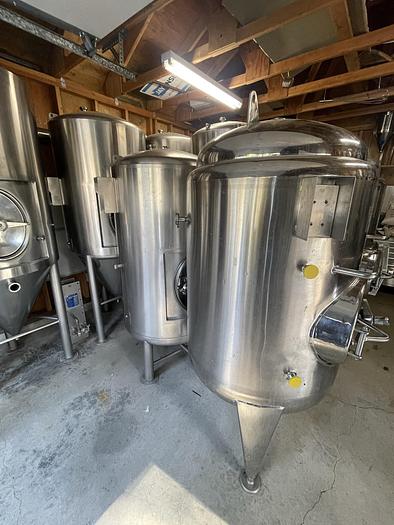

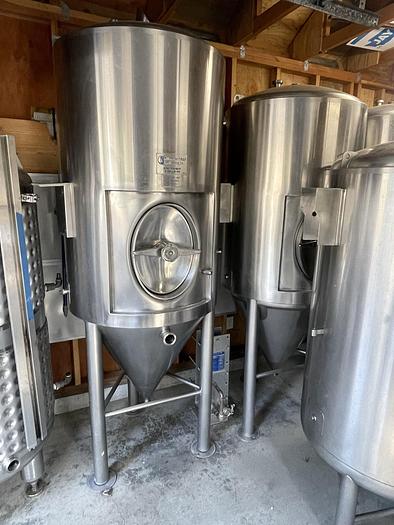

-(4) 4 bbl Elliott Bay, conical jacketed fermenters, 8' tall x 36" OD, racking port, CIP, PRV, side manway, single zone jacket

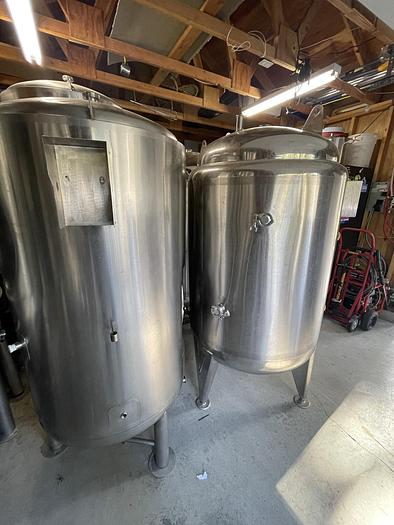

-(1) 4 bbl Elliott Bay jacketed brite tank, 78" tall x 34" OD, side manway, CIP, PRV, single zone jacket

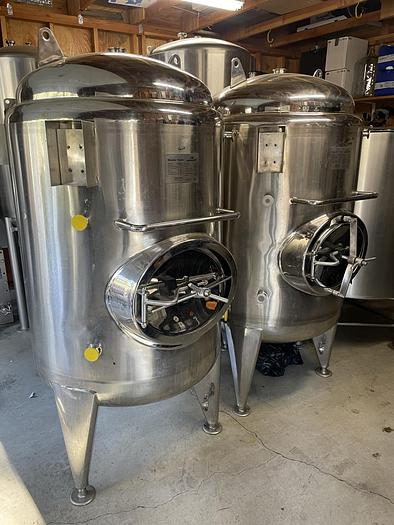

-(2) Glacier 4 bbl jacketed brite tanks, side manway, CIP, PRV, jacketed side wall, 78" tall x 38" OD

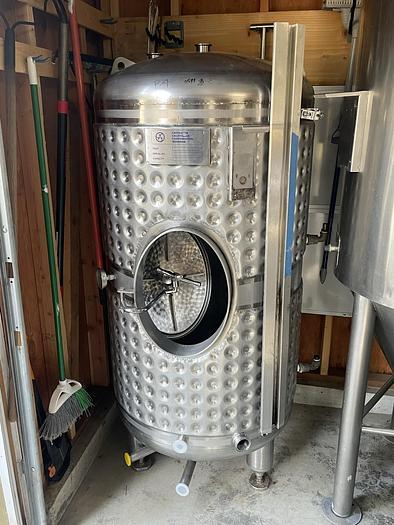

-(1) Criveller 5 bbl jacketed brite tank, side manway, full body dimple jacket (no insulation/cladding), stand pipe, CIP, PRV, 78" tall x 34" OD

-Forced air burner with stainless housing - set up for natural gas but can be converted to propane

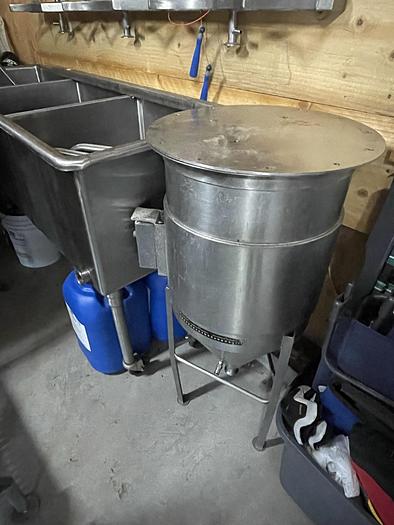

-Small open top conical fermenter (approx 1 bbl) - for use during CIP or could be repurposed for other uses

-Boxes of miscellaneous valves, fittings, tc clamps/gaskets, PRV's, etc.

-3 bin stainless sink for brewery use

The system was in use until approx 2020 and has been in dry storage since that time. It is a compact brewhouse that is designed to fit in a small space and utilizes hose for transfer and flow control. We can offer support equipment to make this a trunkey package. Inquire about a mill, chiller, and double batch tanks.


ManufacturerElliott Bay
Model4 bbl
Stock Number8037
