Used G&D 50 hp packaged glycol chiller

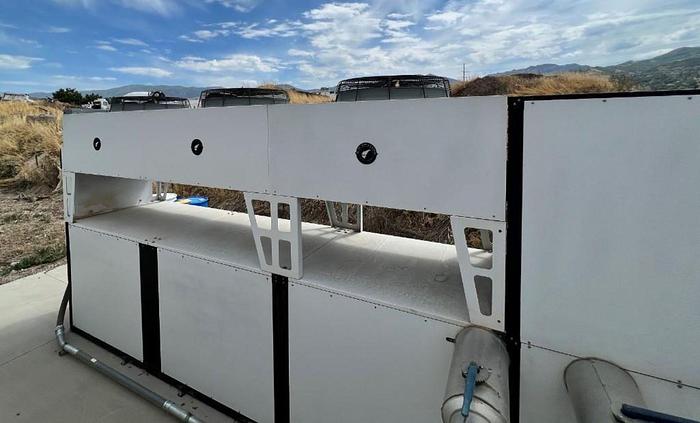

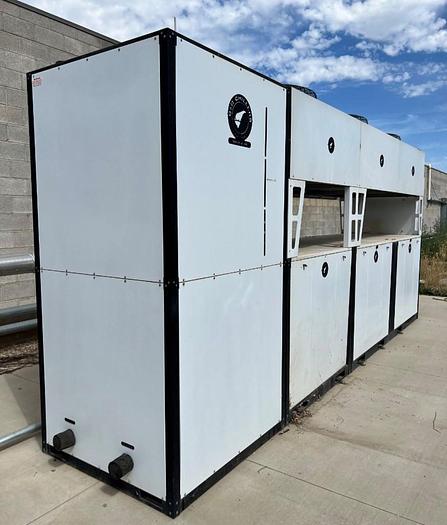

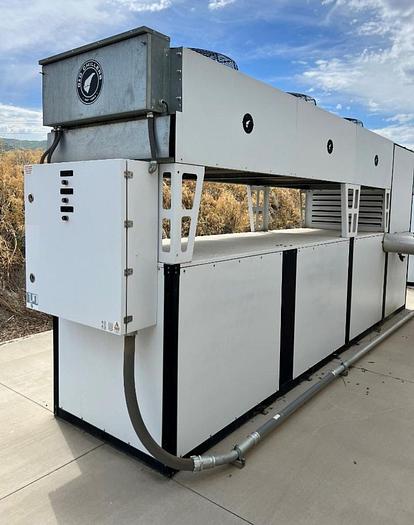

Item is a used G&D 50 hp chiller. This unit is a vertical air chille and is the ideal choice for high volume facilities. The GD-50H-2C contains two 25 HP semi-hermetic reciprocating compressors with capacity unloading. These are partnered with oversized air-cooled condensers to maximize efficiency and cooling capacity. This is a complete package and turnkey unit, including an oversized stainless steel reservoir, process and chiller pumps, compressors, and condenser.

This unit was built new in 2018 and has seen limited use. It remains in excellent condition. This machine is offered with factory inspection and service prior to delivery to the buyer. New cost for this unit is almost $90,000 and we have priced this machine at a sizable discount.

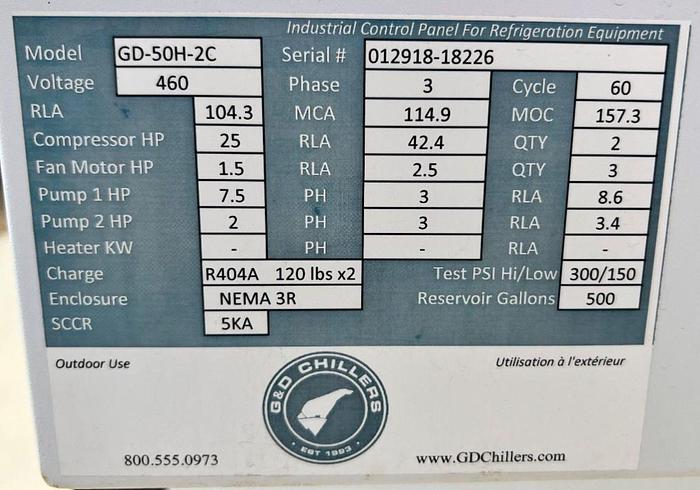

Key Specifictions-

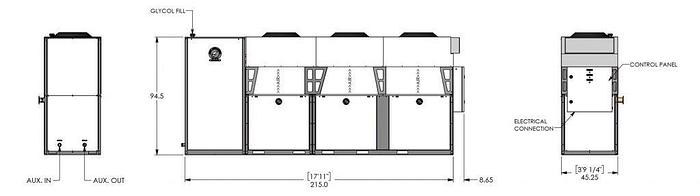

(WxLxH): 45” x 221” x 108”

Tank Volume: 465 Gallons

Process Pump: 7.5 HP

Chiller Pump: 7.5 HP

GPM @ 25PSI: 230 gpm

Operating Weight: 9300 lbs

Connection size - 3"

Features-

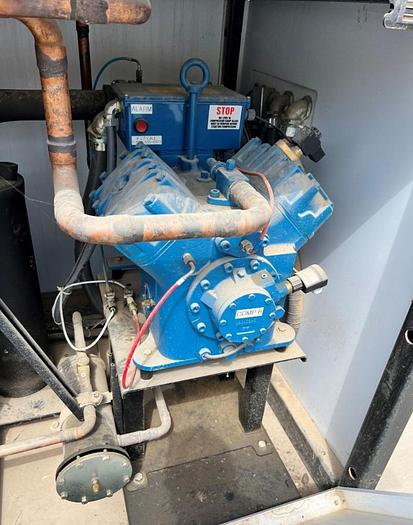

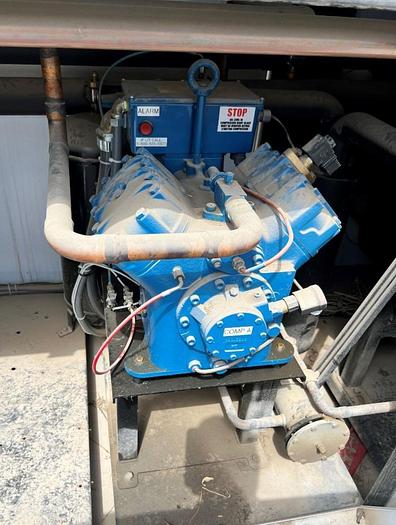

High efficiency semi-hermetic compressors with unloaders

Industry leading high efficiency brazed plate HX

Air or water cooled condenser

Suction accumulators

Liquid receivers with service valves

Removable core filter dryers

High/low pressure switches

Oil failure control

Fan cycling controls

Crank case heater

Stainless steel glycol reservoir

Chiller pump

Process pump

Temp and pressure gauges

Union and ball valve for pump isolation

All insulated copper piping

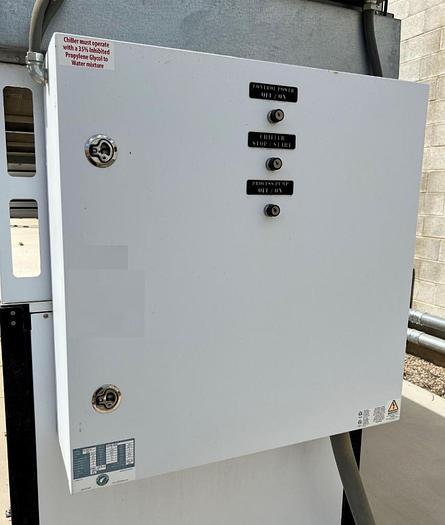

Complete NEMA 3R Enclosure

Single point electrical connection

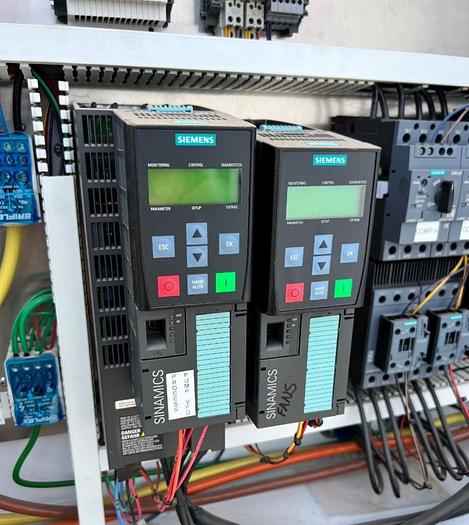

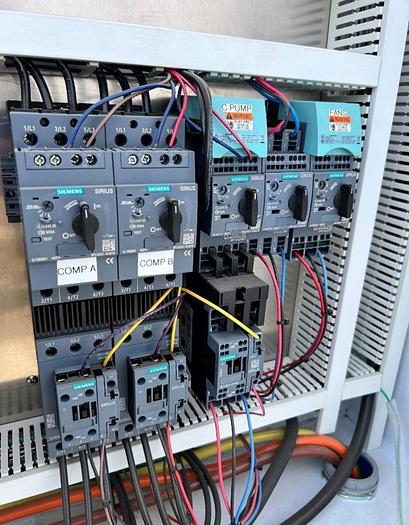

Circuit breakers and motor starts

Phase and voltage monitoring protection

Motor overload protection

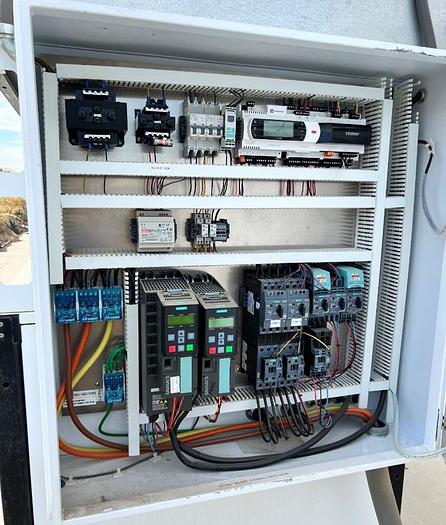

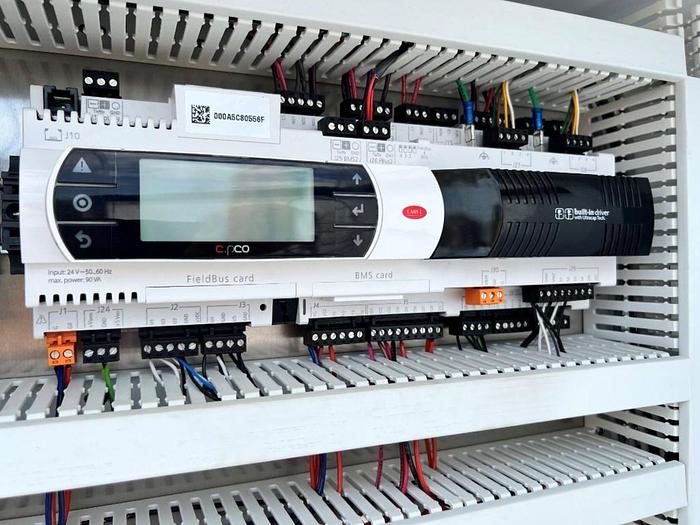

Microprocessor controller with communication capabilities

Freeze stat

Flow switch
