Used 9' Bi-Flow Accumulation Table

Used 9' Bi-Flow Accumulation Table

Available quantity: 1

Portland, OR

orCall (503) 222-7079

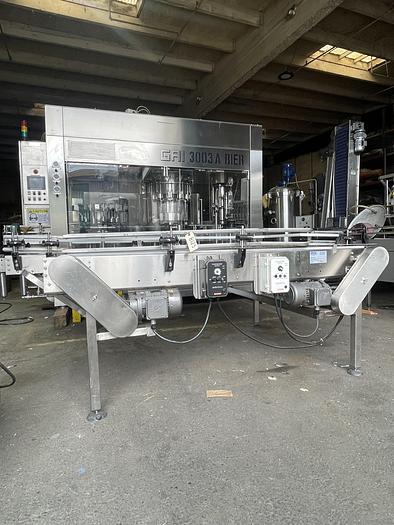

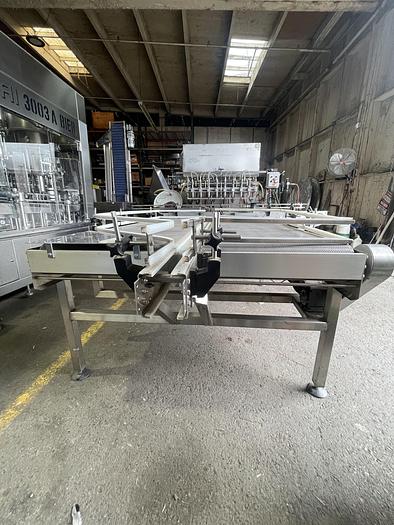

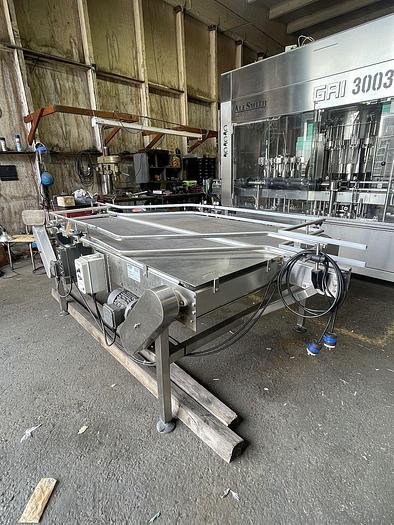

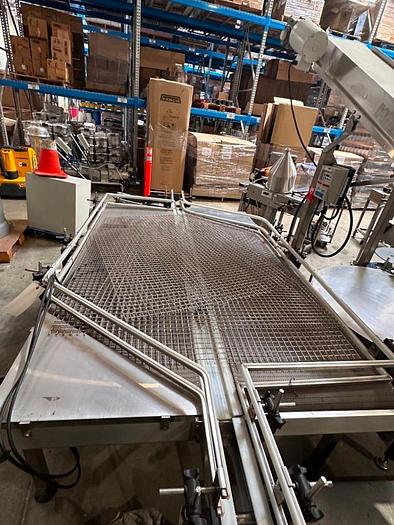

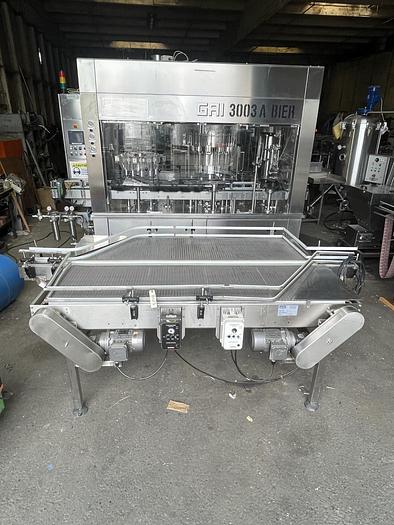

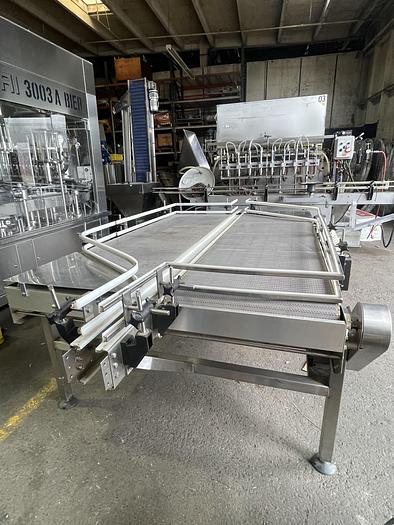

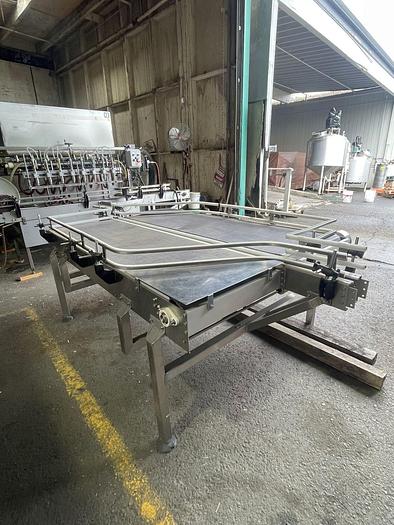

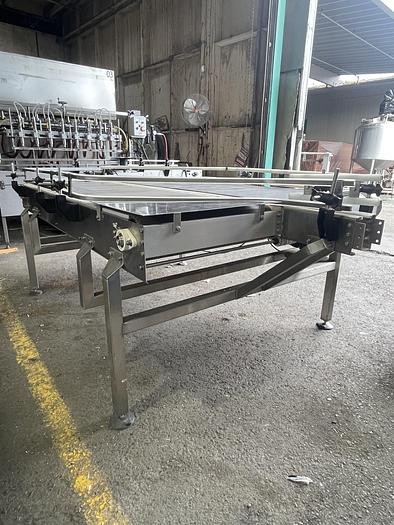

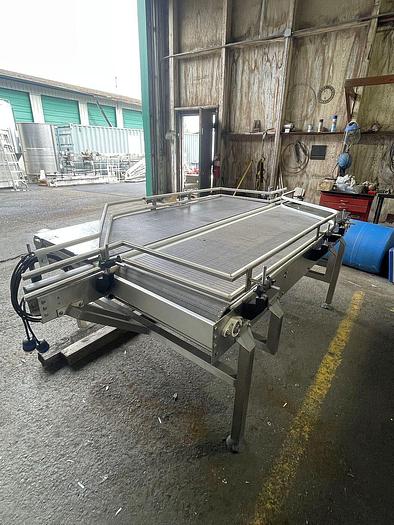

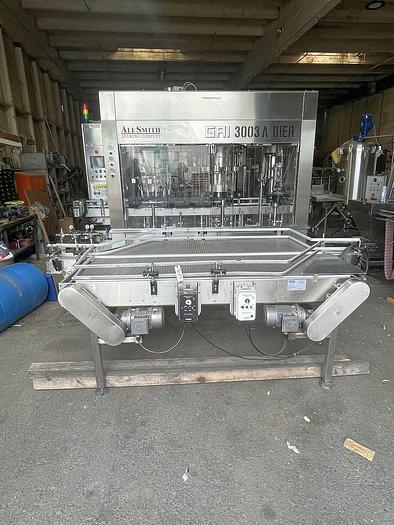

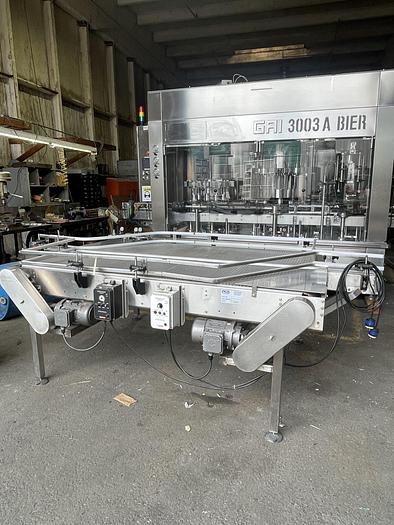

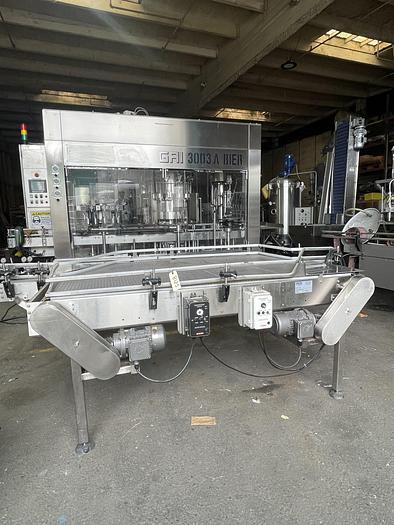

Item is a used bi-flow, inline accumulation table. This machine is designed with a 4 1/2" center belt that is powered external to the machine. The mat-top belts on each side of the center belt are approximately 2' wide. The right side, mat top belt travels in the same direction as the center belt. The left side mat top belt travels in the reverse direction toward the infeed end of the table allowing for recirculation of containers to prevent clustering. The two matt top belts are are powered with .75 HP NORD inverter duty motor gear boxes and are equipped with VFD's to provide independent speed control for each belt. The inverter drives are 120 volt/single phase input with 220 volt/3 phase output. Dimensions of the deck are approximately 7' long x 54" wide with one foot conveyor stubs at the infeed and discharge ends. This machine is constructed with HD stainless frame and legs.


ManufacturerPacific Conveyor Systems
Stock Number8125
