Inline Filling Systems Inline 4 Head Filler

Inline Filling Systems Inline 4 Head Filler
Location:Portland, OR
Available quantity:1
or
Call (503) 222-7079
Description

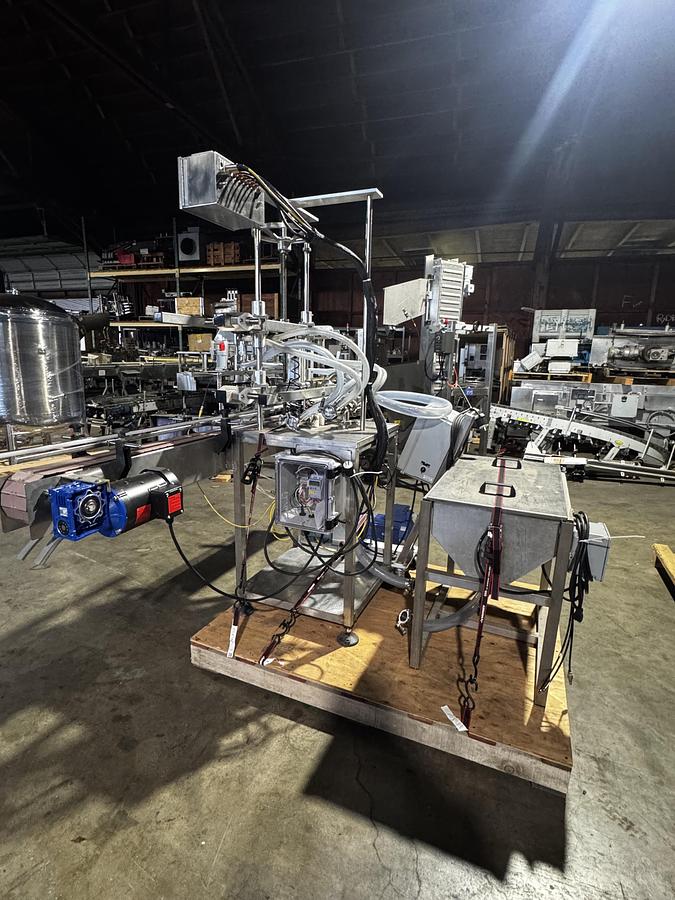

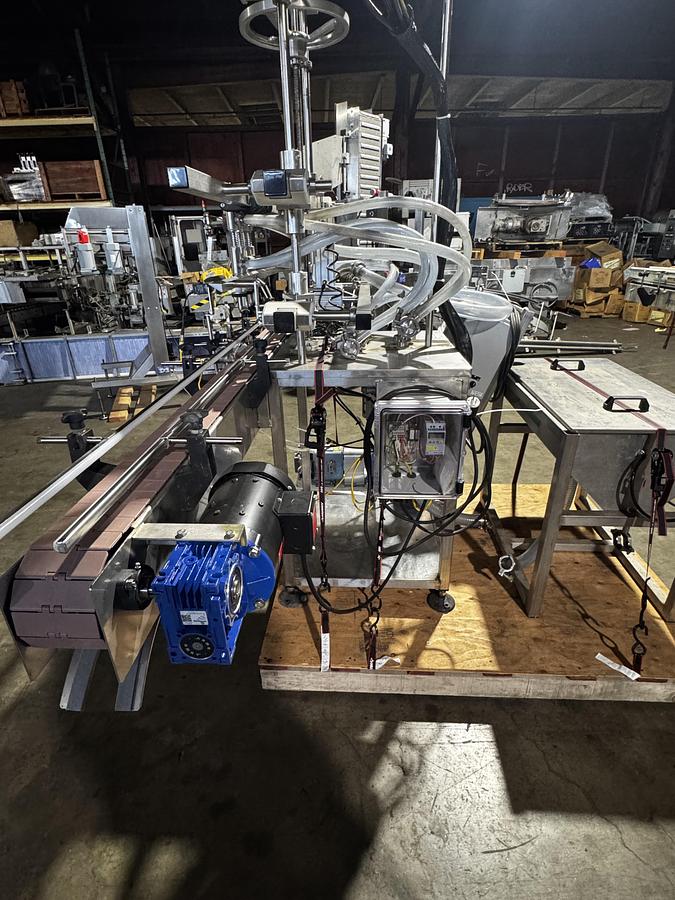

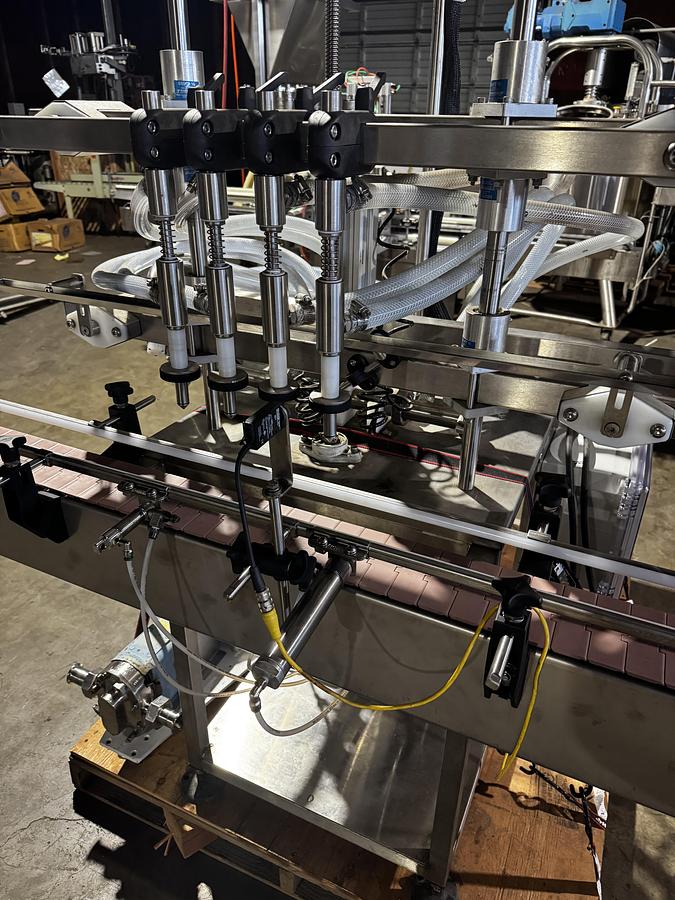

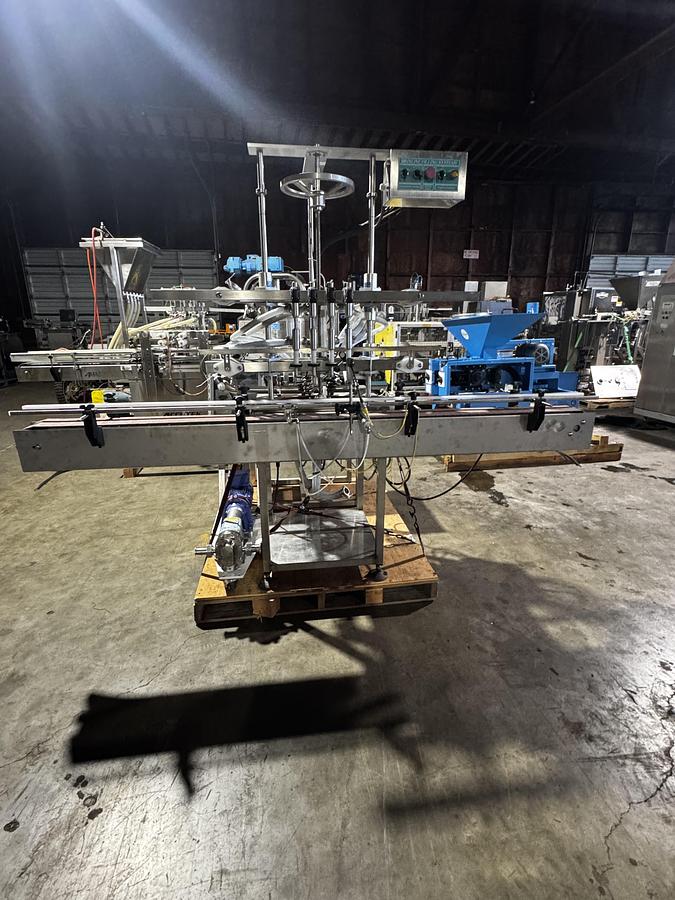

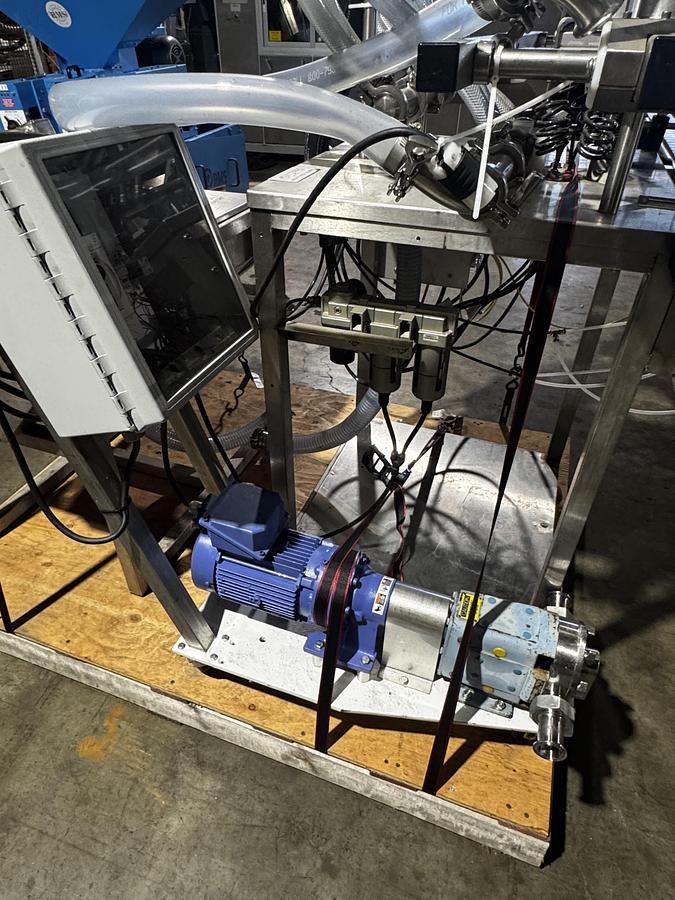

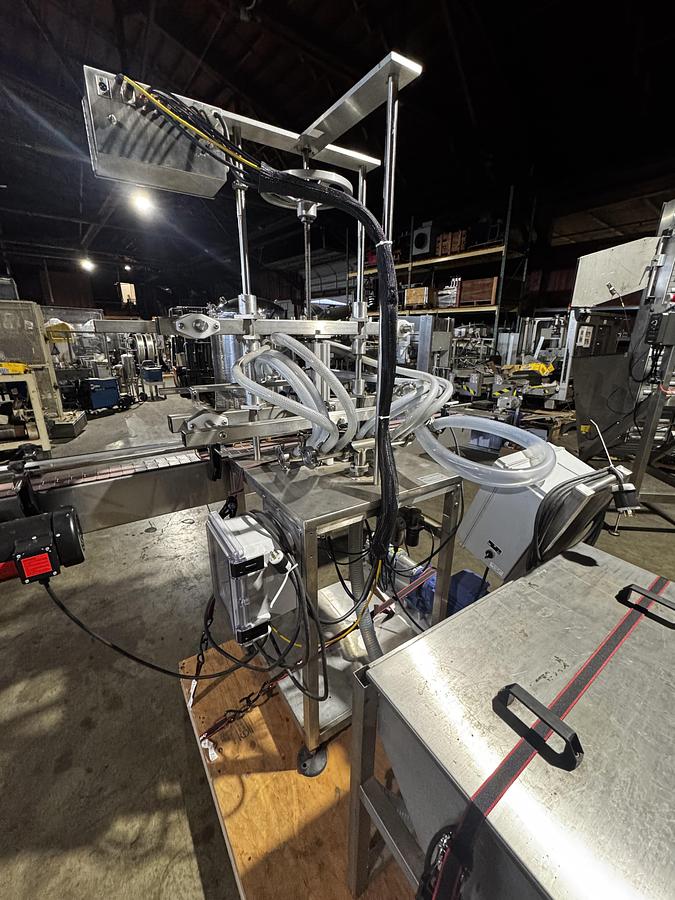

Item is a used, Inline Filling Systems four head, sanitary filler. It is all S/S construction. The machine consists of four, pressure overflow style filling valves. It would be supplied with a NEW - 10' long by 4 1/2" wide table top conveyor with pneumatic container indexing gates to facilitate the filling of 4 bottles per cycle. The filler utilizes a Waukesha positive displacement pump to feed product from the supply tank to the filling nozzles. Product overflow is returned to the supply tank. The four filling nozzles are 5/8" diameter. Machine operates from left to right Power requirement is 120 volt/single phase. Machine requires compressed air.
Specifications
Manufacturer | Inline Filling Systems |
Model | Inline 4 Head Filler |
Condition | Used |
Stock Number | 8314 |
