Used GAI 1301 Monoblock filling line for non carbonated beverage products

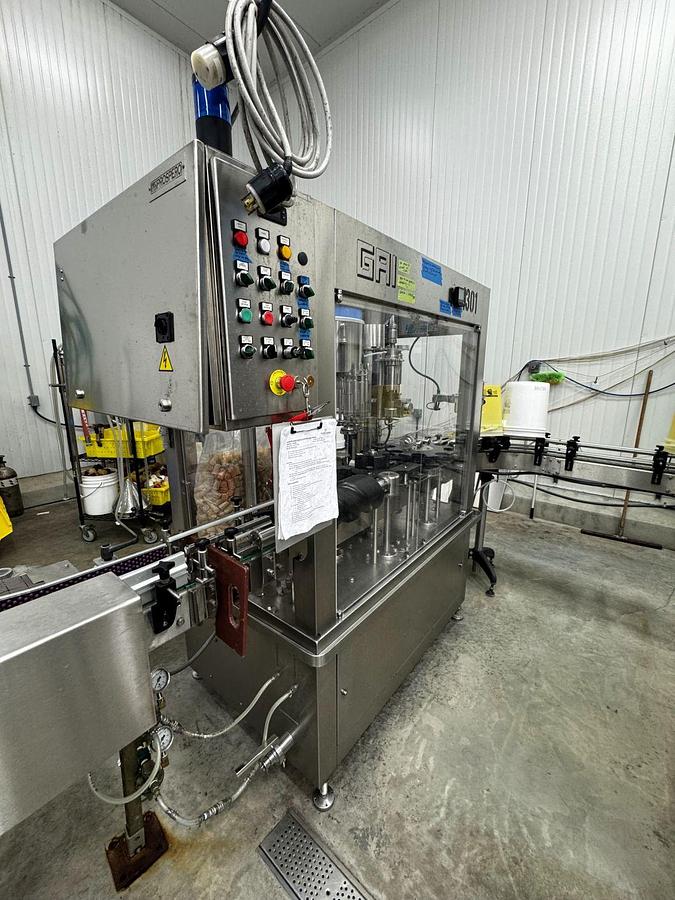

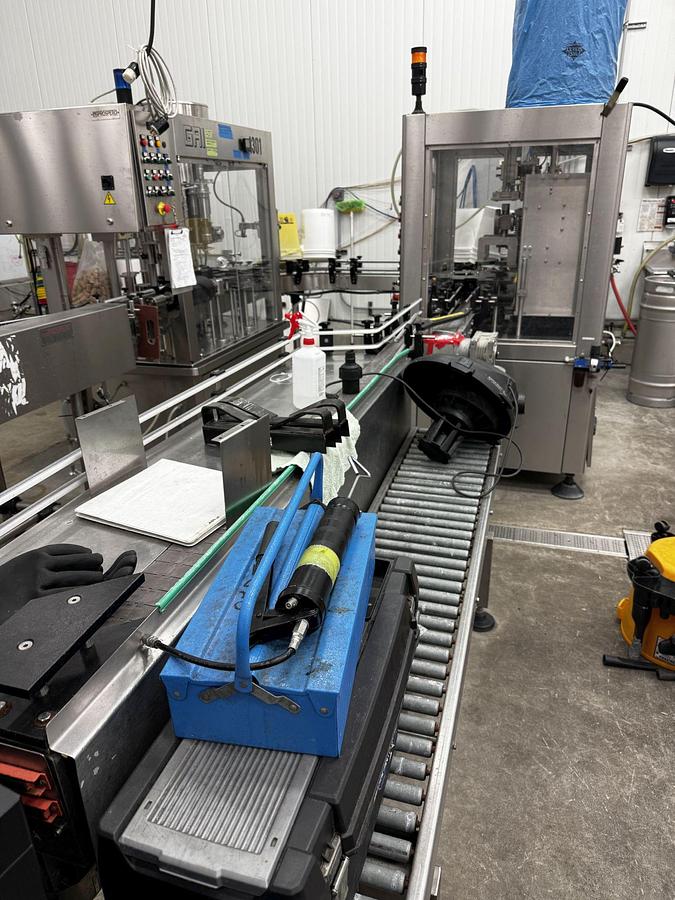

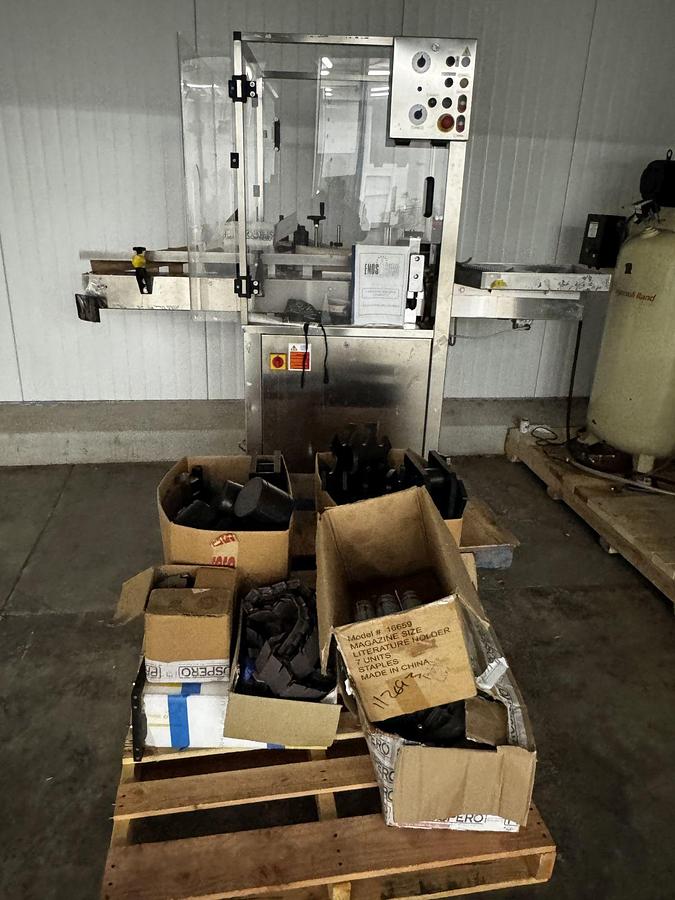

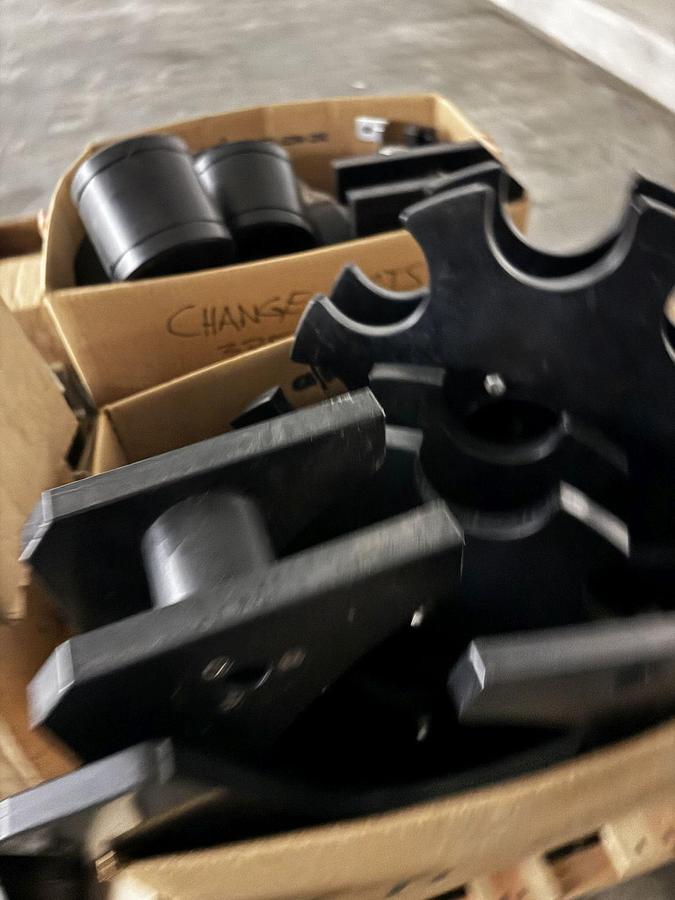

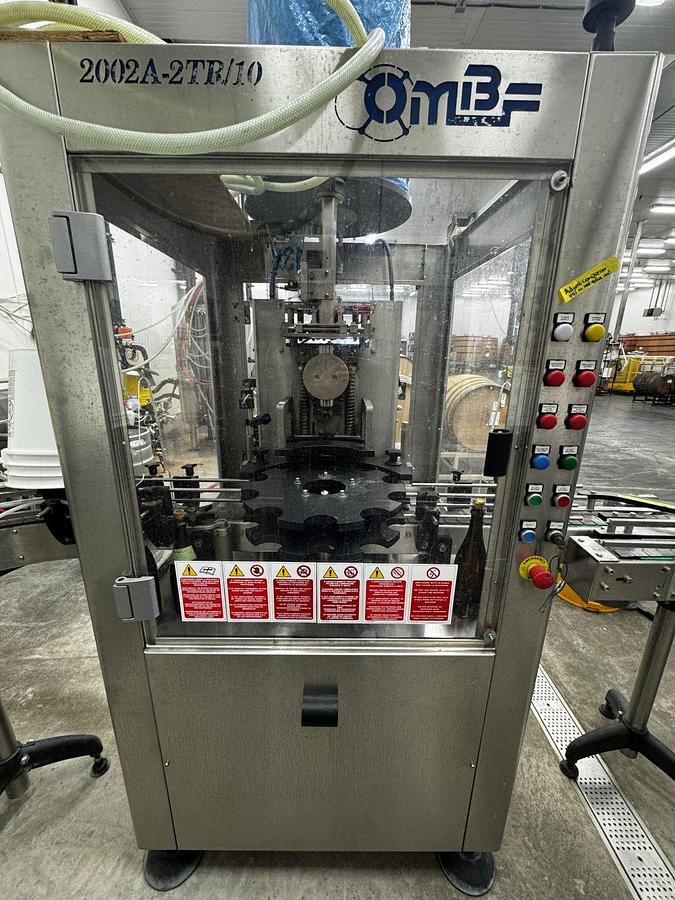

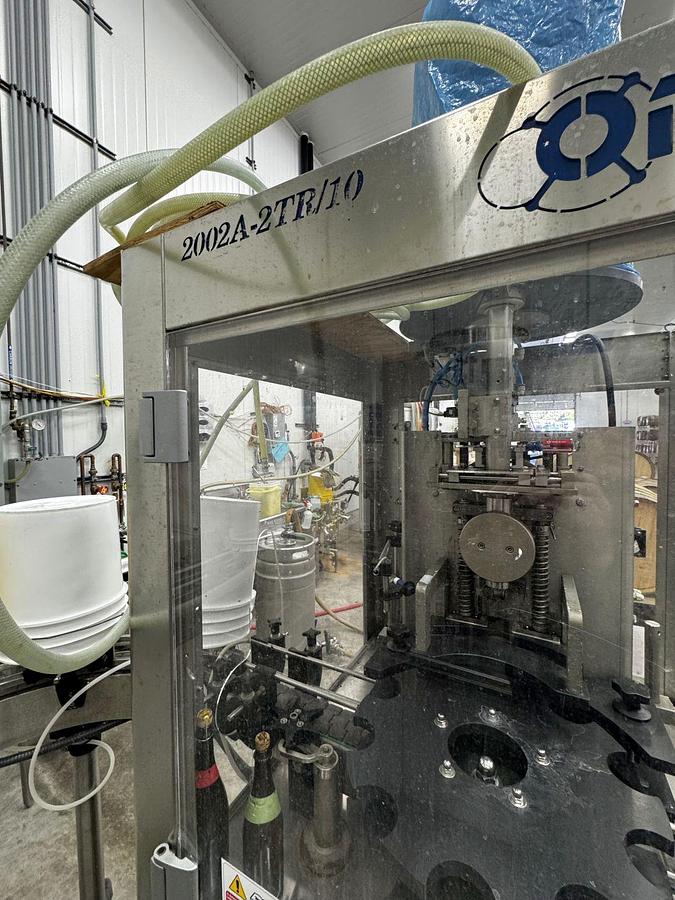

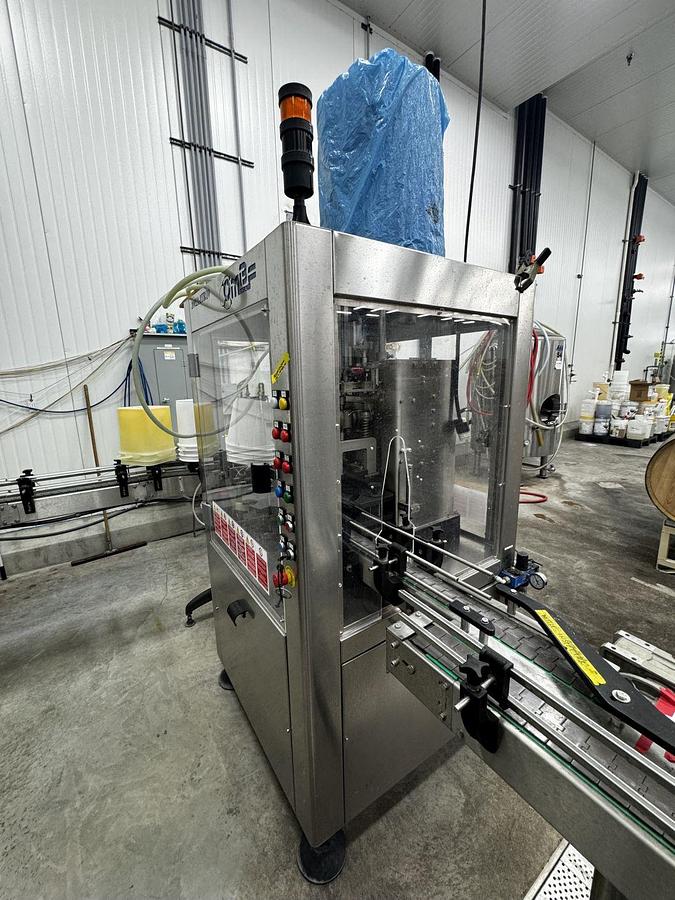

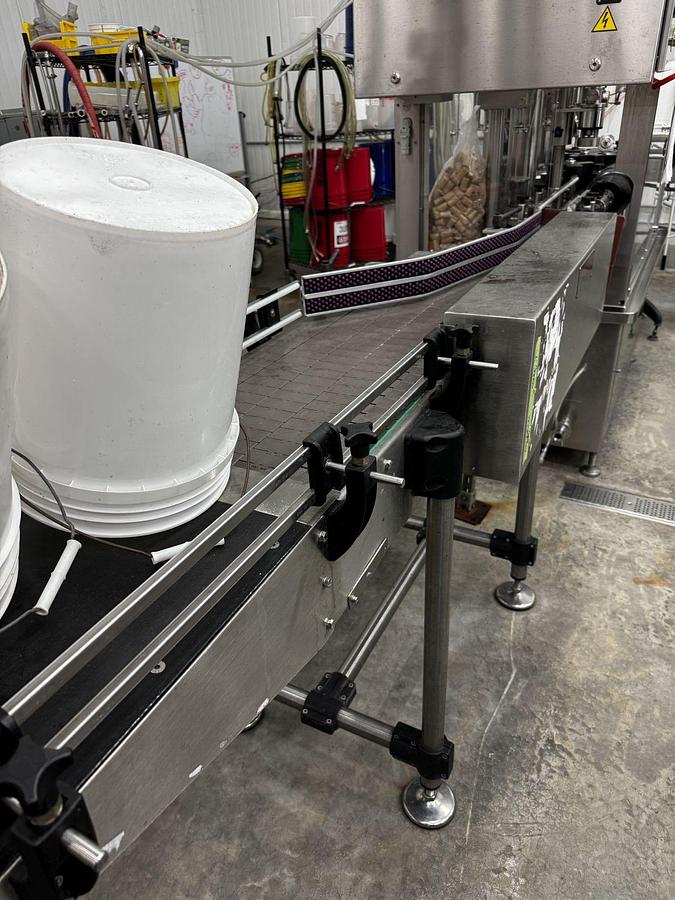

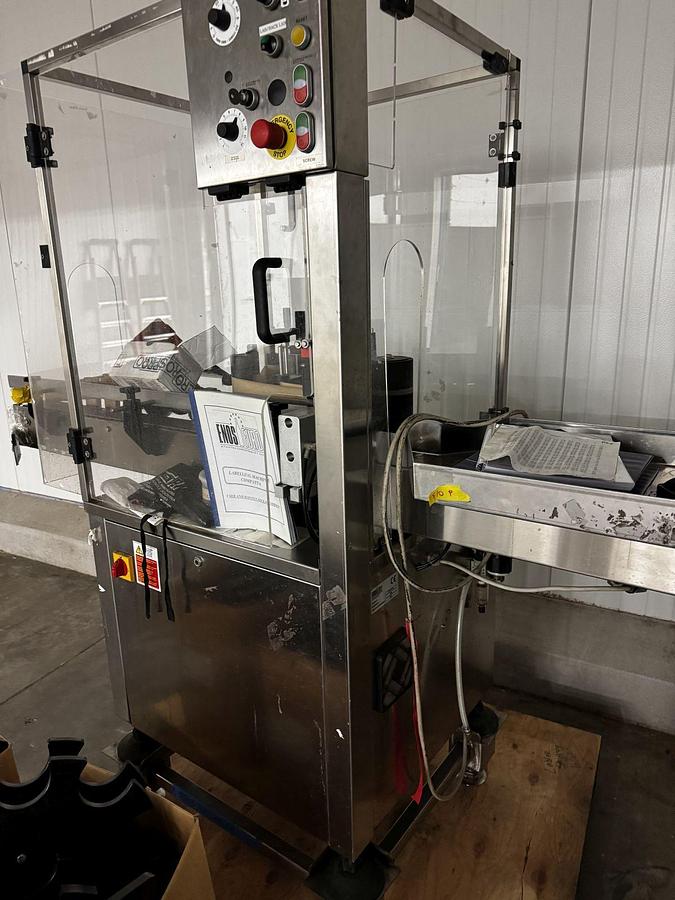

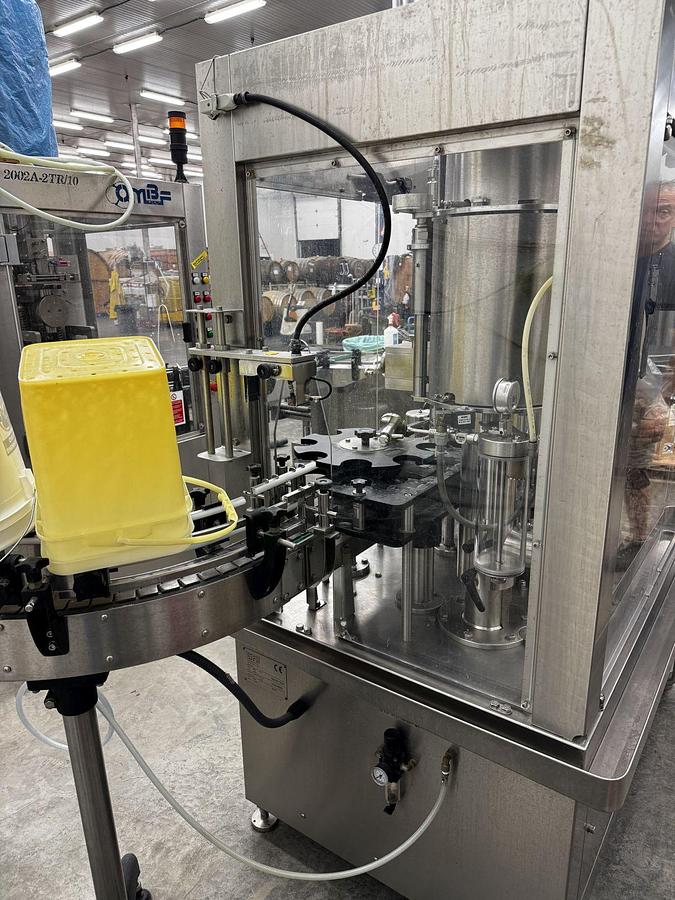

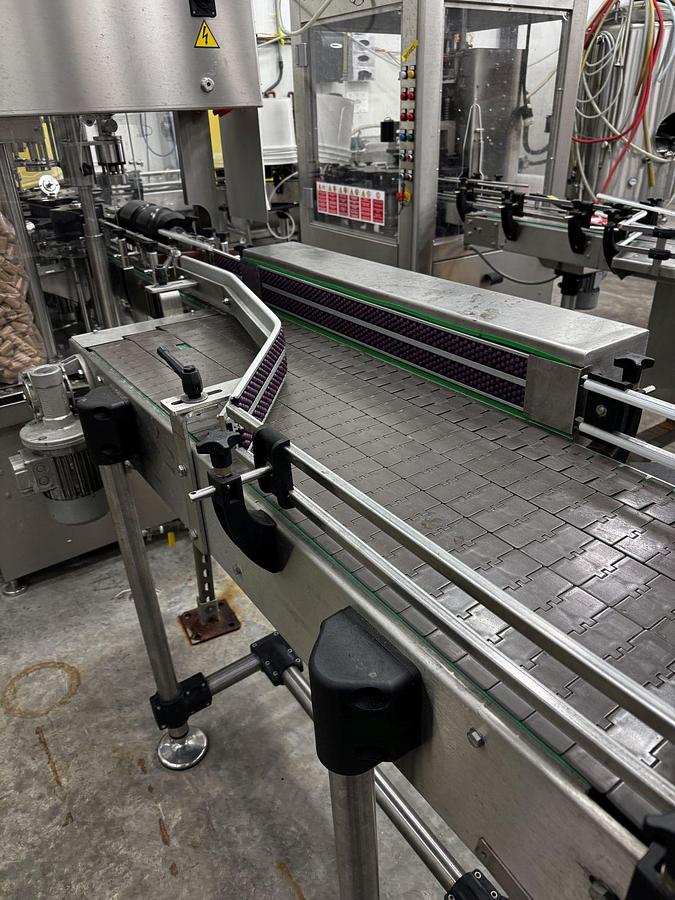

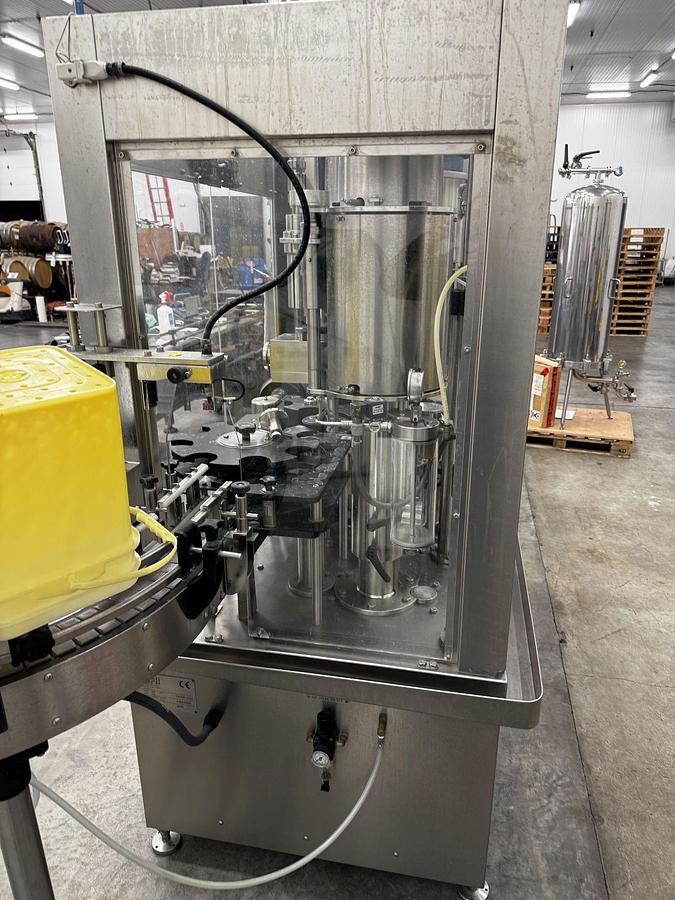

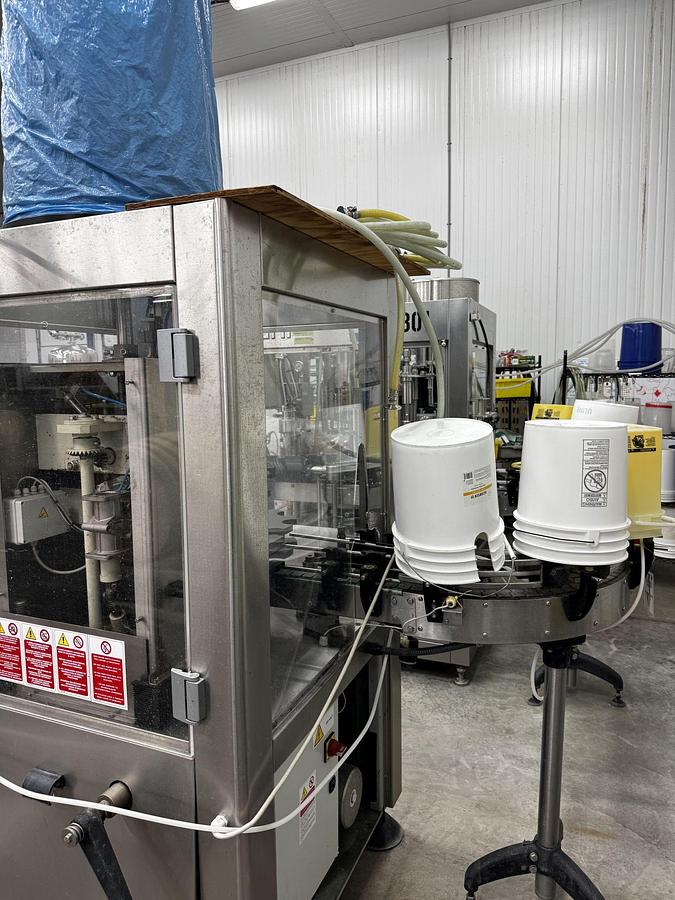

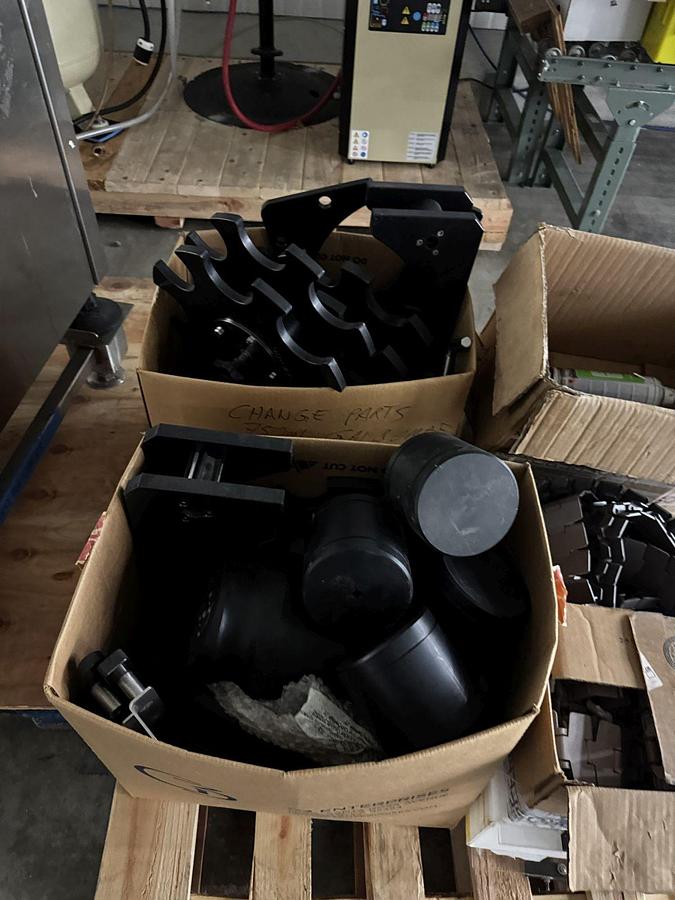

Item is a used GAI1301W-2011 monoblock 8 head filler with single head corker and sparger. The machine was built new in 2013 and has seen light use. Included with the line is the integrated dump table and single filer, u shaped conveyor, OMB automatic cork cage applicator (model 2002A-2TR/10 - 2013) and a pack off table and roller case conveyor. There is also an Enos pressure sensitive labeler Model Compatte - 2012. This is desgend to do a body/wrap pressure sensitive label. There are change parts for 750ml and 375 ml bottles. The manufacturer describes theis line as-

GAI 1301

Automatic Monoblock composed of Stainless steel: 400 – 1,330 Bottles Per Hour

Bottle Deaeration

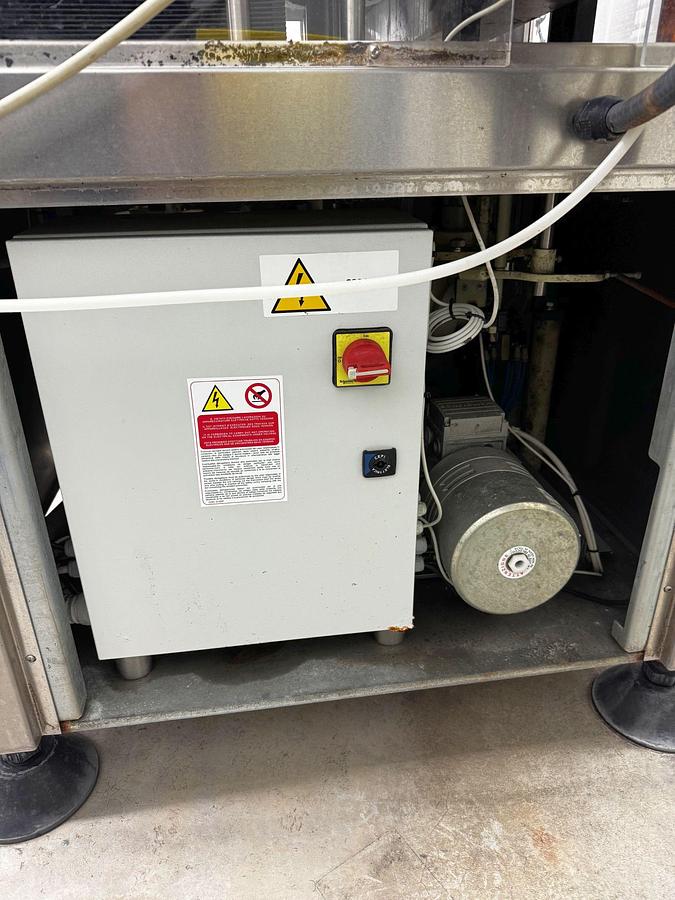

A high vacuum pump takes out about 90% of the air inside the bottle. The bottle is then filled with a neutral gas chosen by the customer (Nitrogen or CO2). The deaeration unit has height adjustment.

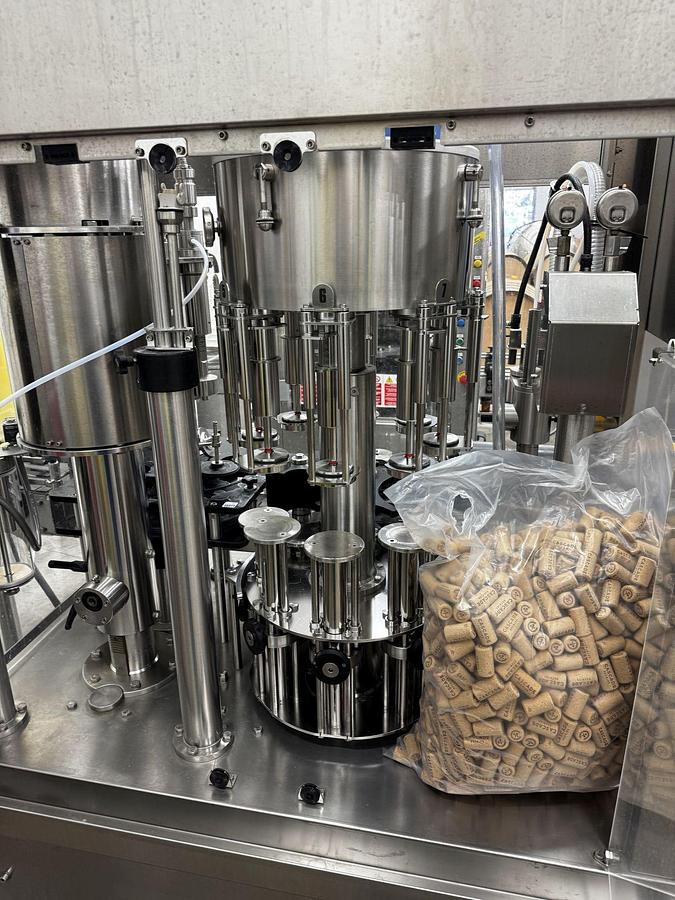

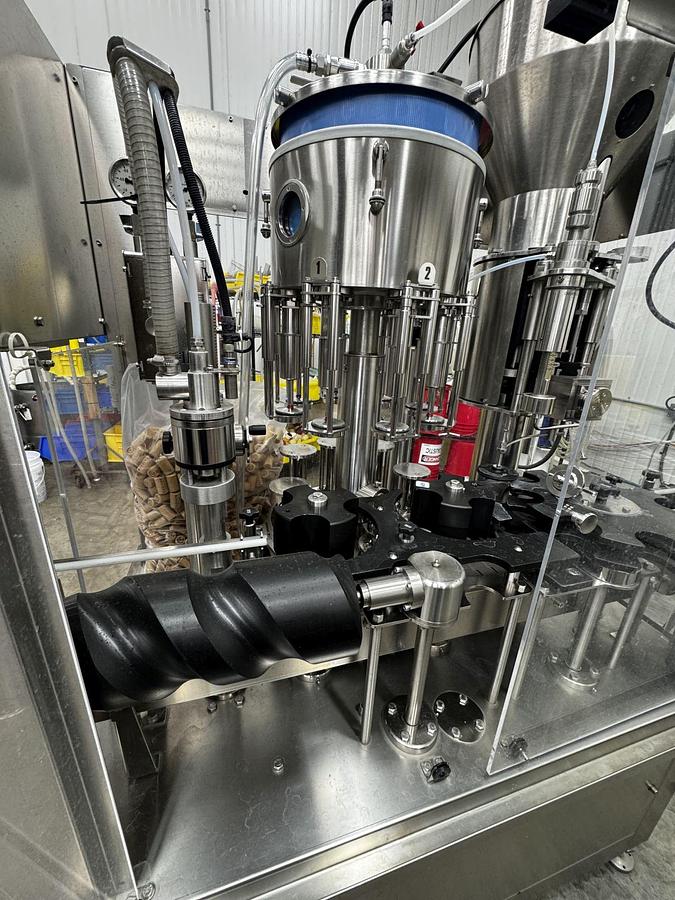

Gravity Filler – 8 spout​

This gravity filler is equipped with 8 filling valves, with light depression. The filling valves (patented) cut off both the wine and the gas return, excluding any contact between the inside of the tank and the environment. The filling level can be changed between 30 and 90mm from the top of the bottle top.

Gas Injector

The injector reduces the oxygen quantity between wine and cork prior to corking (the injector has a dummy bottle for its own sterilization).

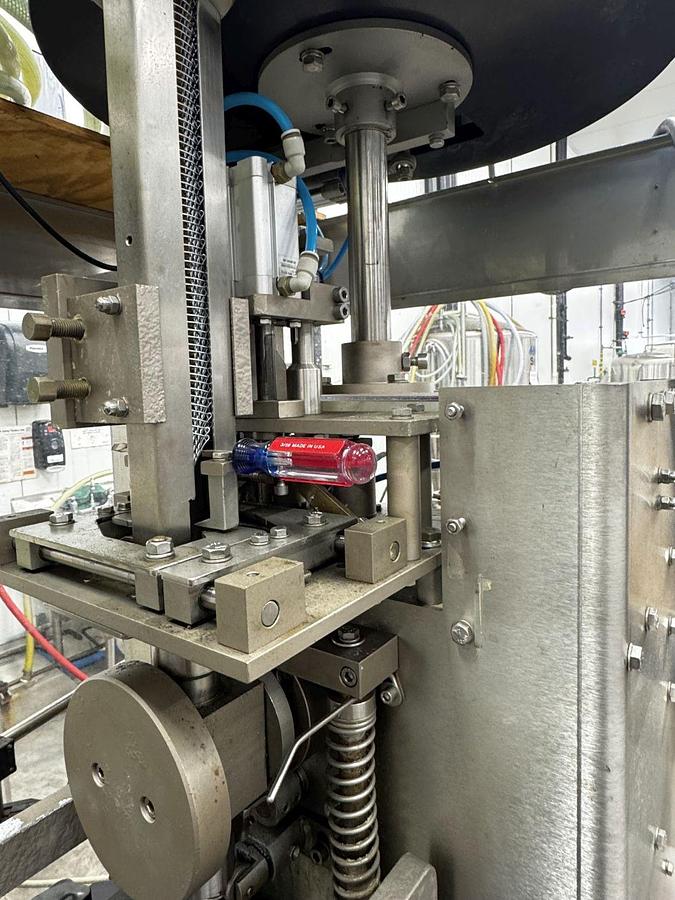

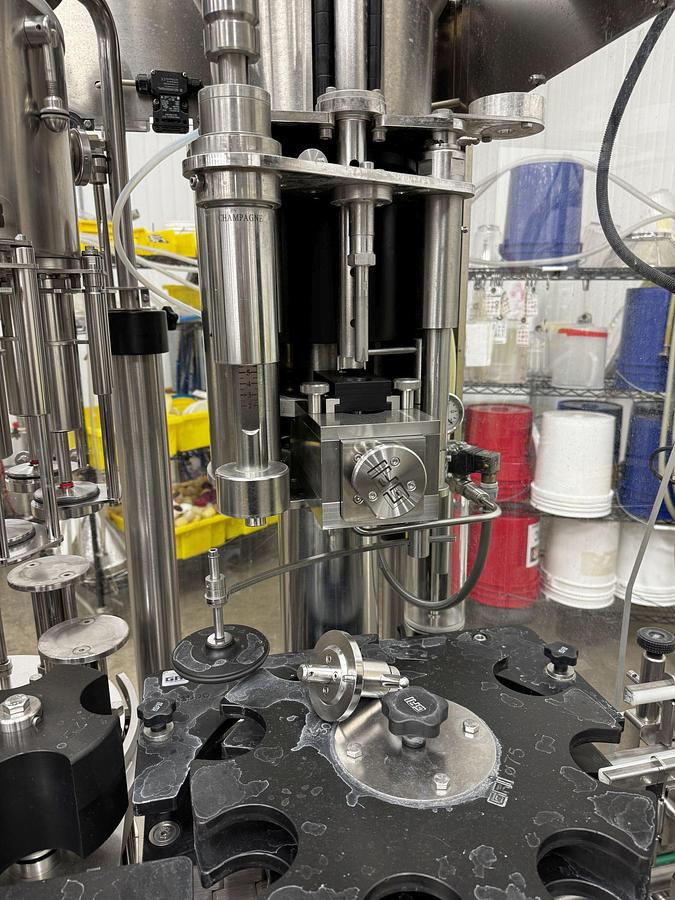

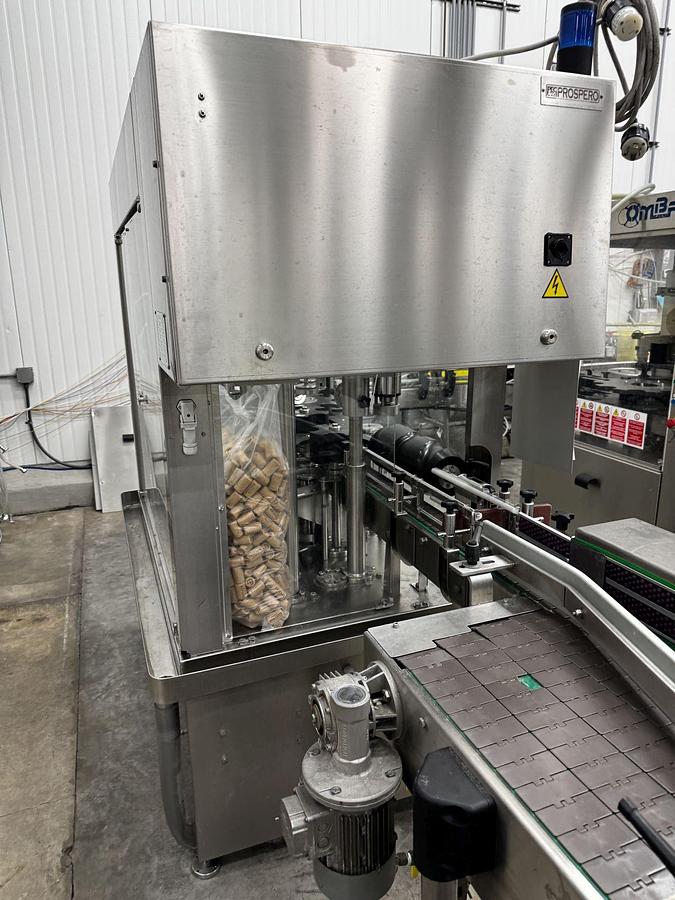

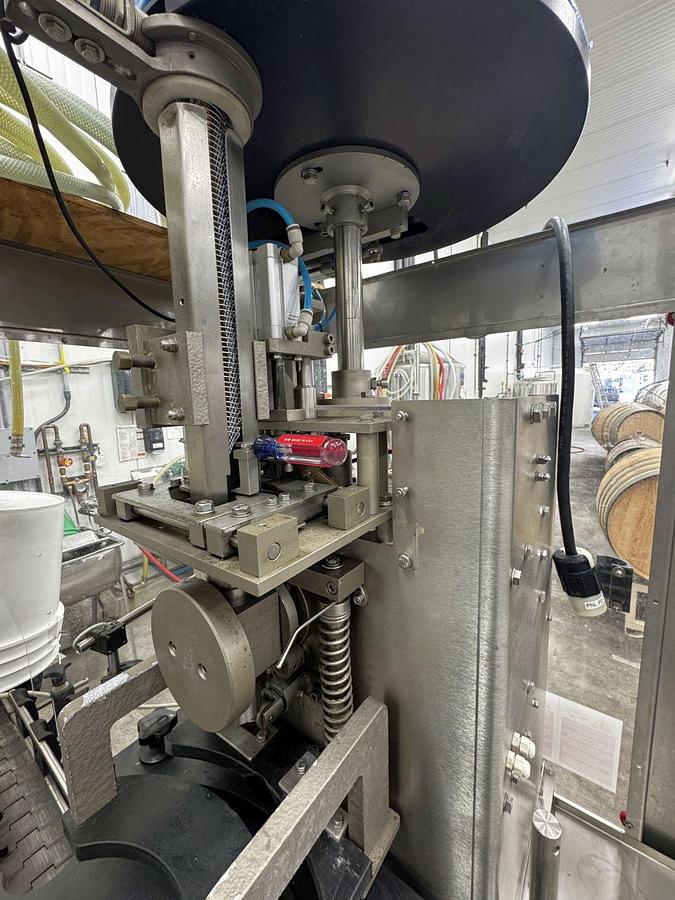

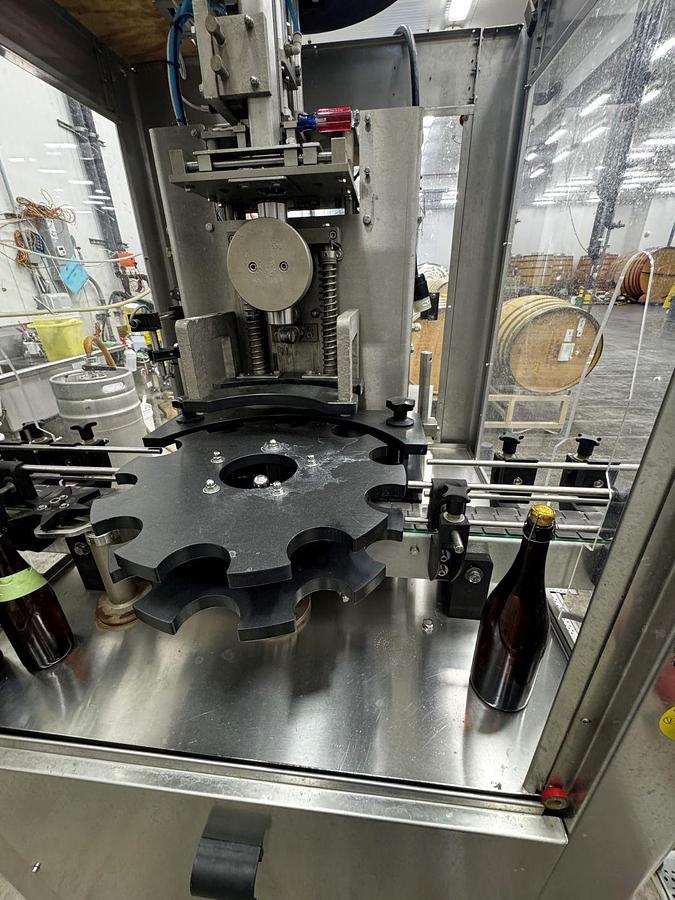

The Corker

The corker closes the cork slowly to a diameter of 16 mm by using 4 Stainless steel prismatic guide jaws that are hardened, ground, and polished. A vacuum is created in the bottle neck by a high vacuum pump so that the introduction of the cork will not create any pressure under the cork. The corker jaws and centering cone are easy to disassemble for regular cleaning and maintenance. The corker has a photocell to detect missed corks. Corker turret can be replaced with alternative closure option, ie: screw cap, crown cap, T-Top, etc.

The line is offered for sale and will ship from our Portland Oregon location. Skidding and loadin for export shipment in a shipping container is available.
