Used Tanktemp portable 5hp chiller

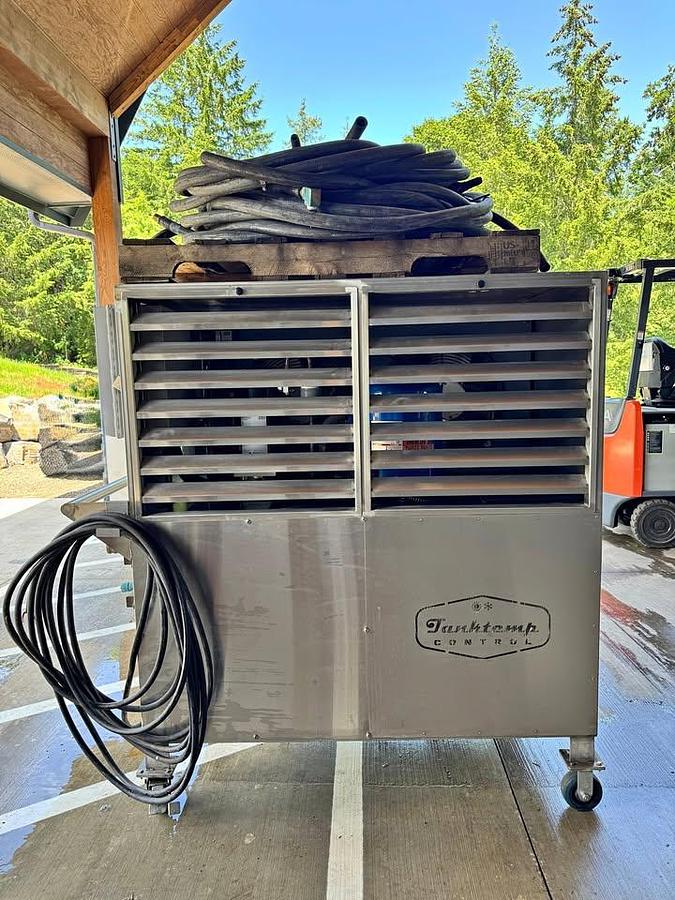

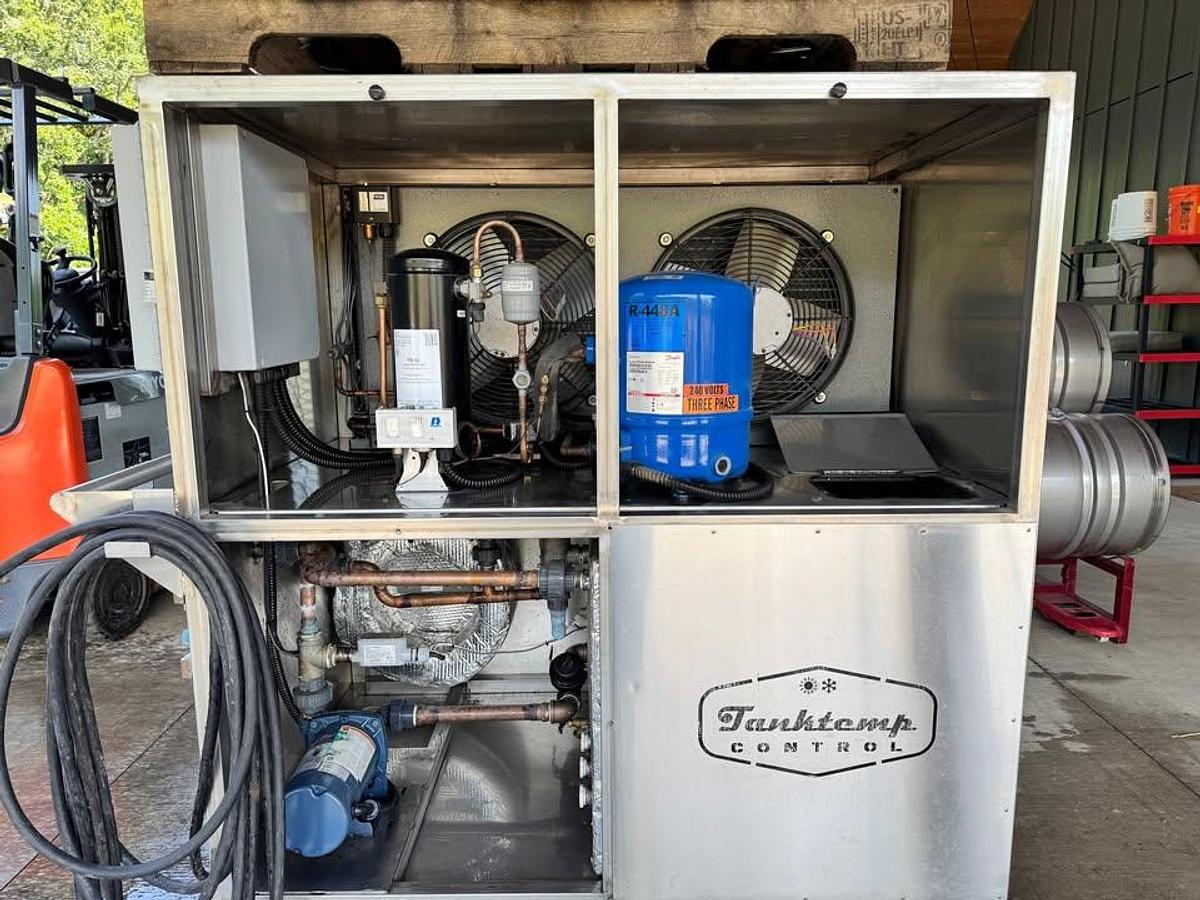

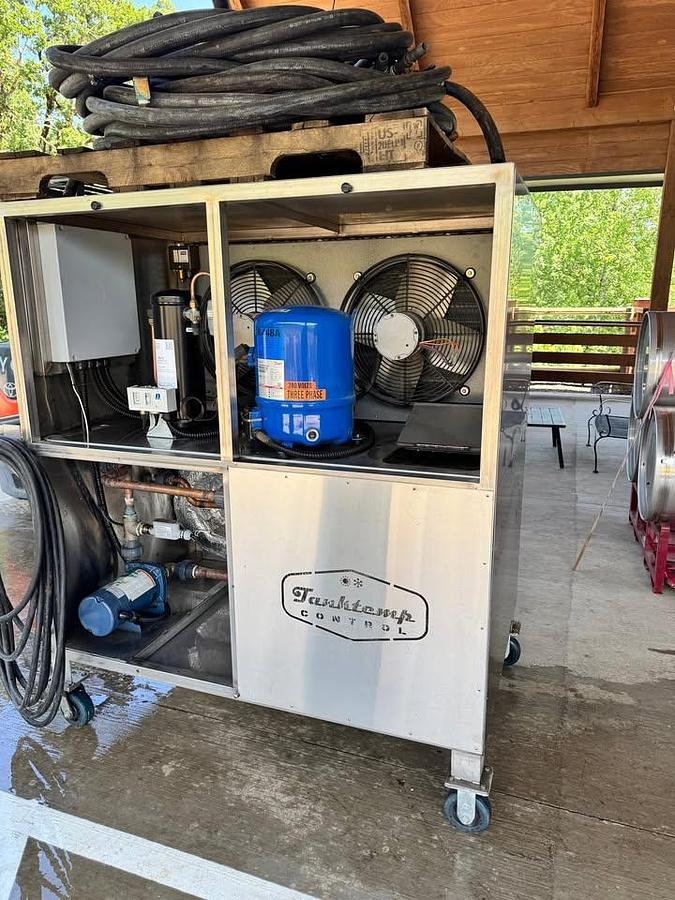

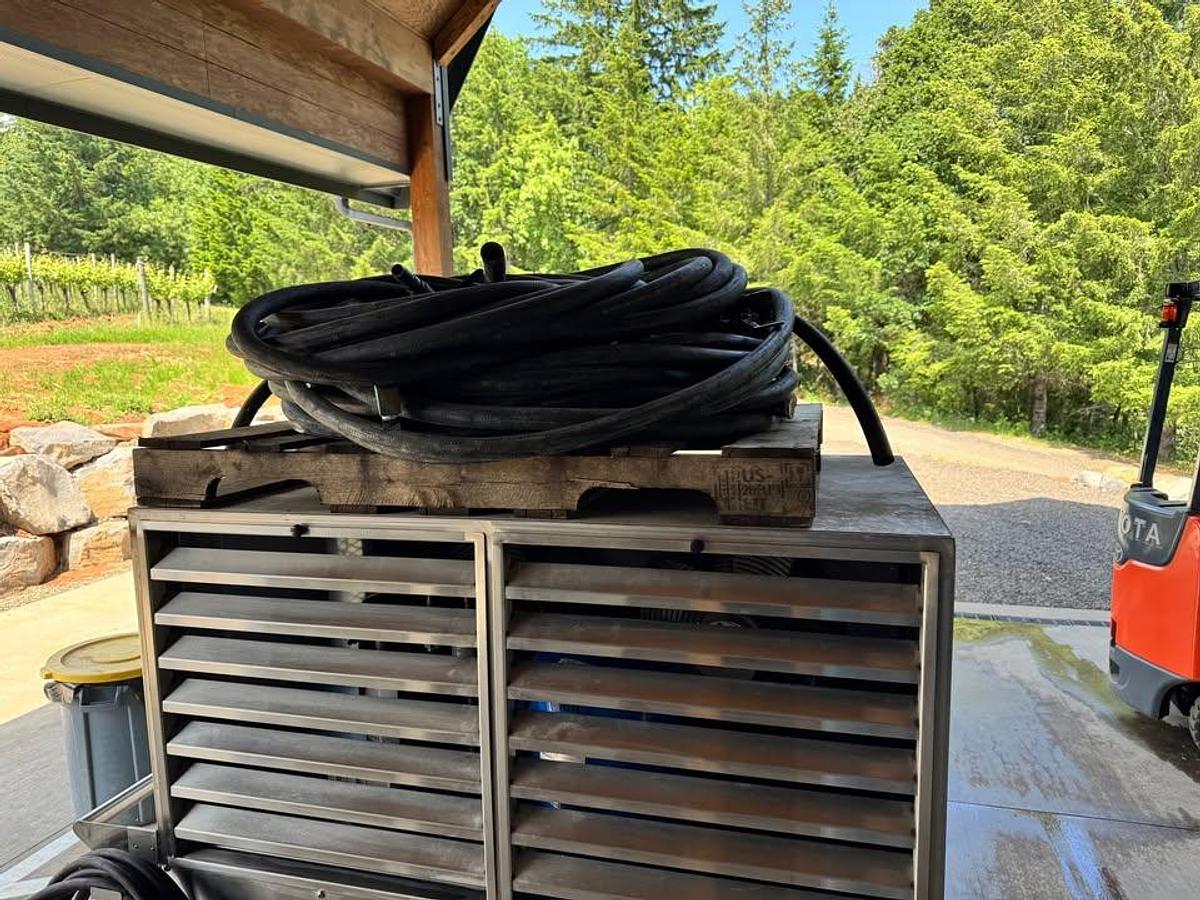

Item is a used Tanktemp Iceberg Solo 53 portable glycol chiller. This unit was built new in 2021 and was used in a small winery but was recently replaced with a larger unit. Specs:

5-Hp

Three Phase -240V

60,000 BTU

Length 64” - Width 36” - Height 52” / 975 LBS ship weight

4 port manifold 3/4" QD standard 1" option / 85gal reservoir / Gas 407A / Adjustable Line PSI / temp range to 0°F

UL LIsted

Delivering up to 60,000BTU with the 5-horsepower model, these units easily meet the high-volume demands of your winery. The manufacturer describes the machine as follows-

• 85-gallon insulated stainless steel reservoir

- Larger reservoirs to allow for constant temperature control for high-capacity needs

• Tanktemp’s custom coaxial high-efficiency heat exchanger for the highest effective BTU transfer

- Counter-flow freon and glycol through the oversized tubing to reduce freezing damage and increase flow and surface contact area.

• Custom oversized condensor/evaporator for fast thermal air exchange

- We exchange more thermal energy with the air, more rapidly, than anyone else - for super-efficient heating OR chilling with one device

• Webtrol™ high-efficiency, corrosion-resistant pump

- Up to 65GPM flow rate, adjustable

- Up to 30psi line pressure to ensure proper flow to your wine tank, adjustable to below 14.9PSI - Fluid bypass valve allows the unit to self control needed flow and pressure

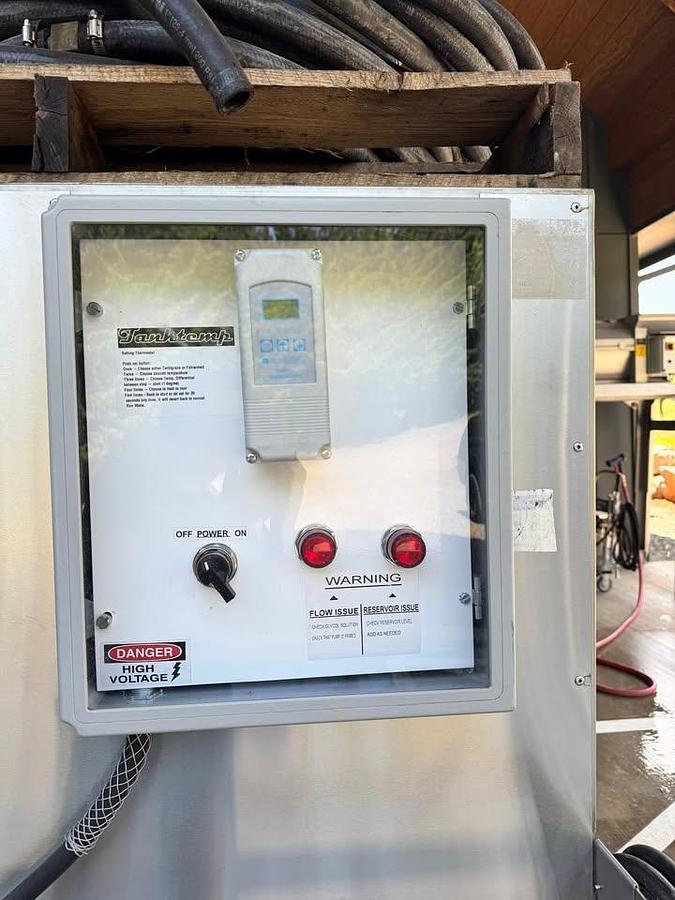

• Dual Ranco™ switched thermostats to control glycol tank temperature

- One for heat, one for cool

- For ease of use, ease of access and simplicity in operation

• Ranco™ dual pressure switch

- Protects the compressor

• Dual fans

- Fast, more effective heat transfer

• ALL-STAINLESS CONSTRUCTION

- Strong, lightweight and rust-free  - Two locking rubber wheeled casters

• Fully portable, mounted on heavy-duty casters, and includes a 25-foot electrical cord

- Maximize available floorspace by minimizing square footage dedicated to non-portable equipment

- Reconfigure your setup quickly and easily

• Solid copper tubing

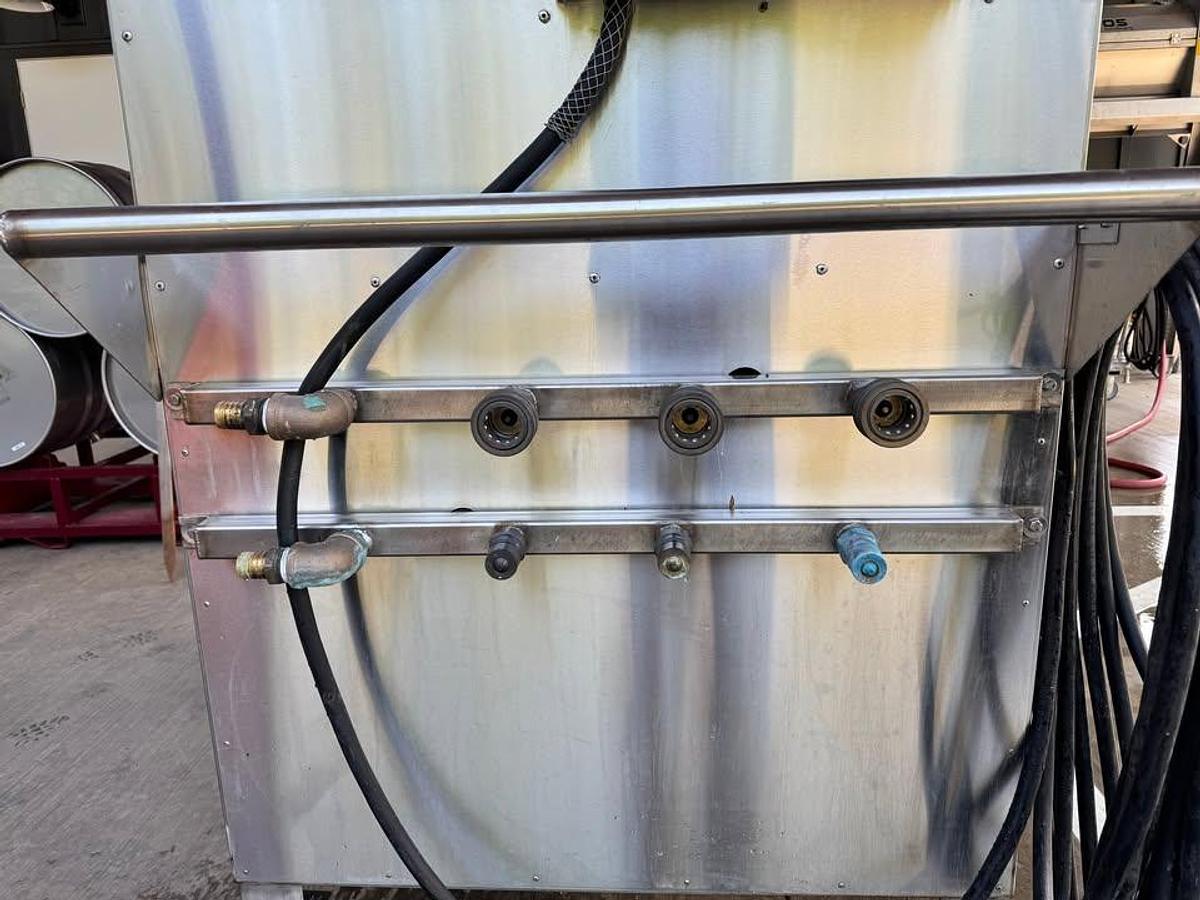

• 4-port manifold with either 3/4” or optional 1” quick disconnect fittings
