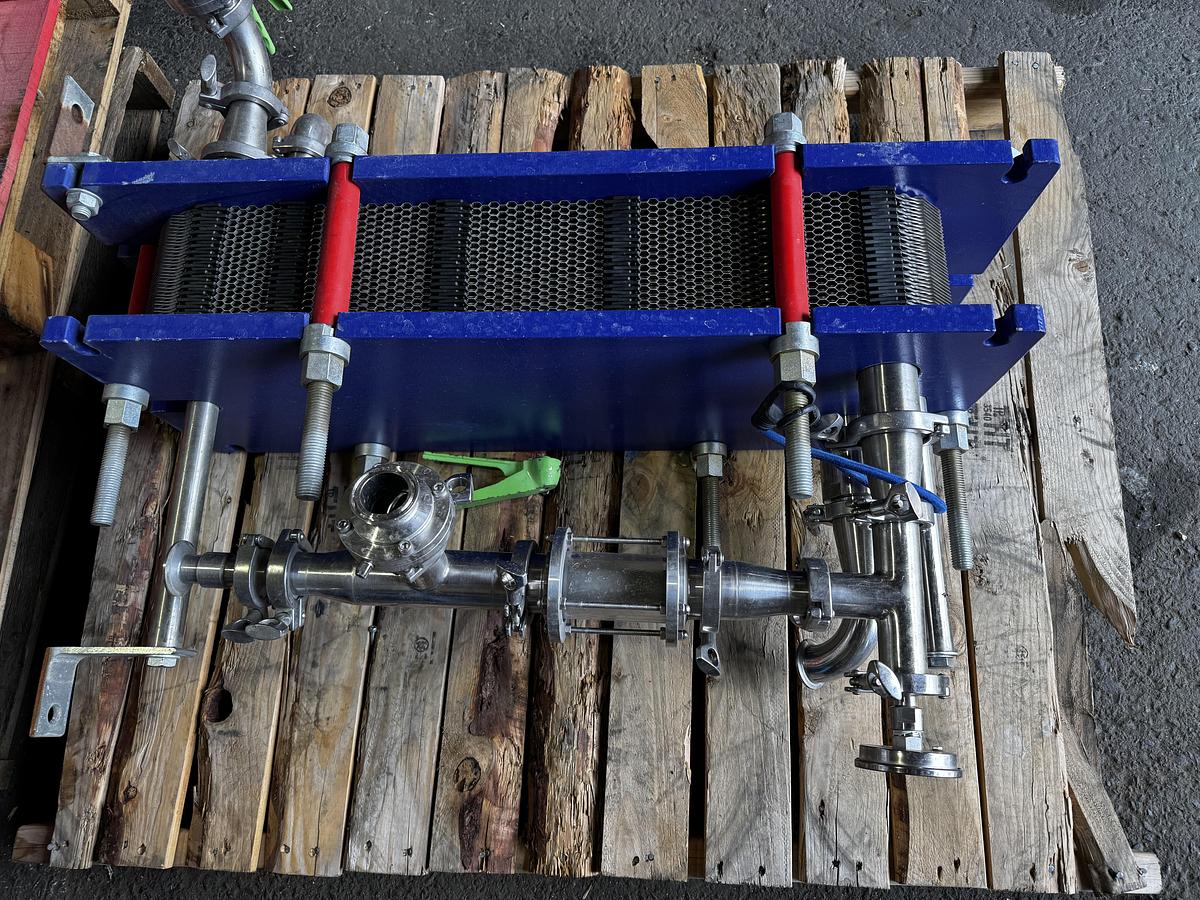

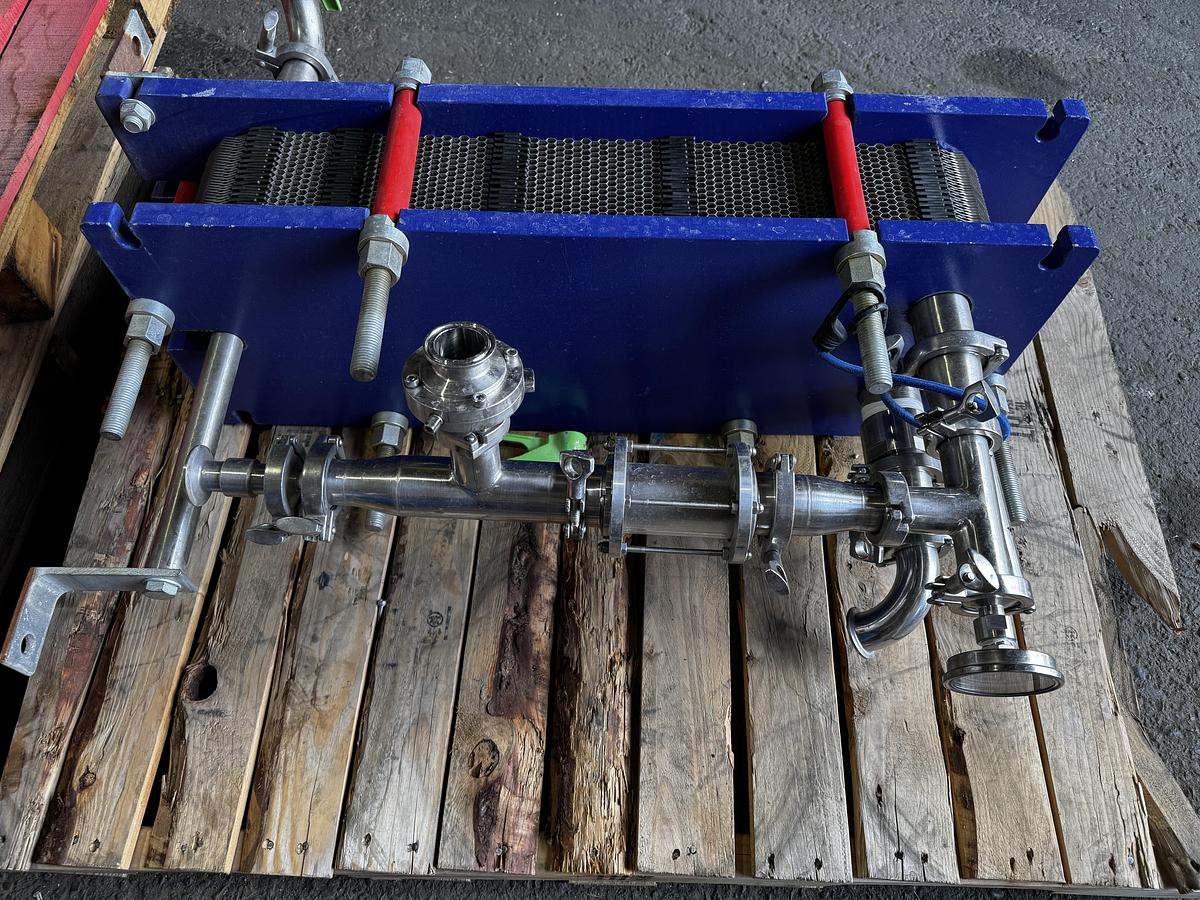

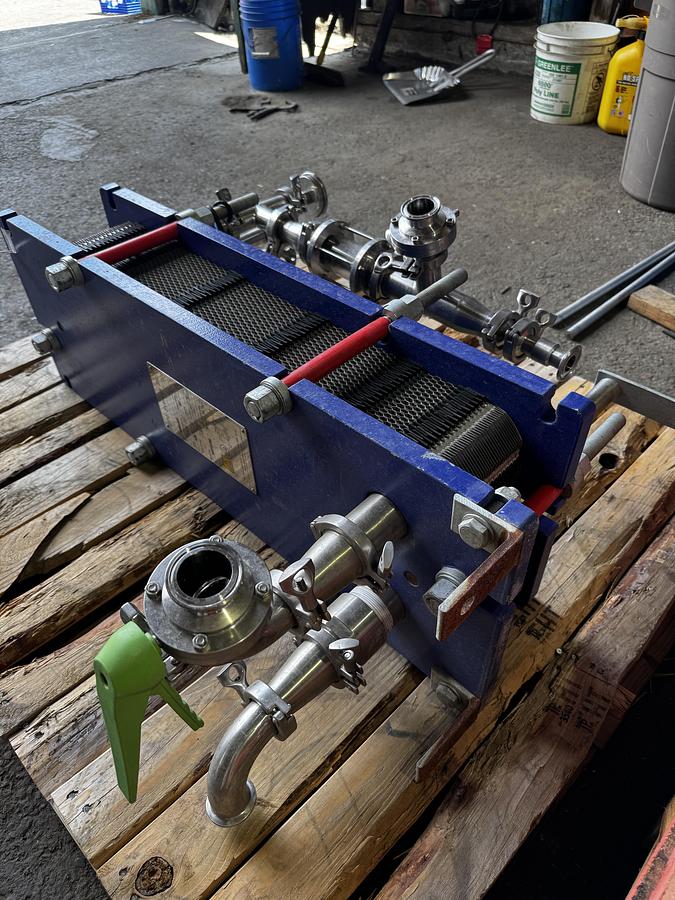

Used CPE 60H heat exchanger

(1) Available - Built March 2020 - CPE BB60H-37D heat exchanger is a gasketed plate and frame heat exchanger manufactured by CPE Systems Inc.. It is primarily designed as a high-efficiency wort chiller for use in breweries or as a means to heat a product utilizing steam as the heat method.

Key specifications and features include:

• Type: Gasketed plate and frame heat exchanger.
• Application: Used in brewing to cool hot wort from approximately 200°F down to about 70°F using city water, typically in about 30 minutes. The design allows the discharged hot water to be collected and reused in the hot liquor tank (HLT) for the next brew.
• Plates: It features 37 plates (as indicated by the "37D" in the model number). The plates are made of 0.5mm 316 stainless steel.
• Gaskets: EPDM clip-on gaskets are used, which are suitable for applications requiring regular cleaning and maintenance.
• Frame Material: The standard frame is made of carbon steel.
• Flow Pattern: Designed with a three-pass flow pattern.Connections: Equipped with 2" water connections and 2" Tri-Clamp wort connections.

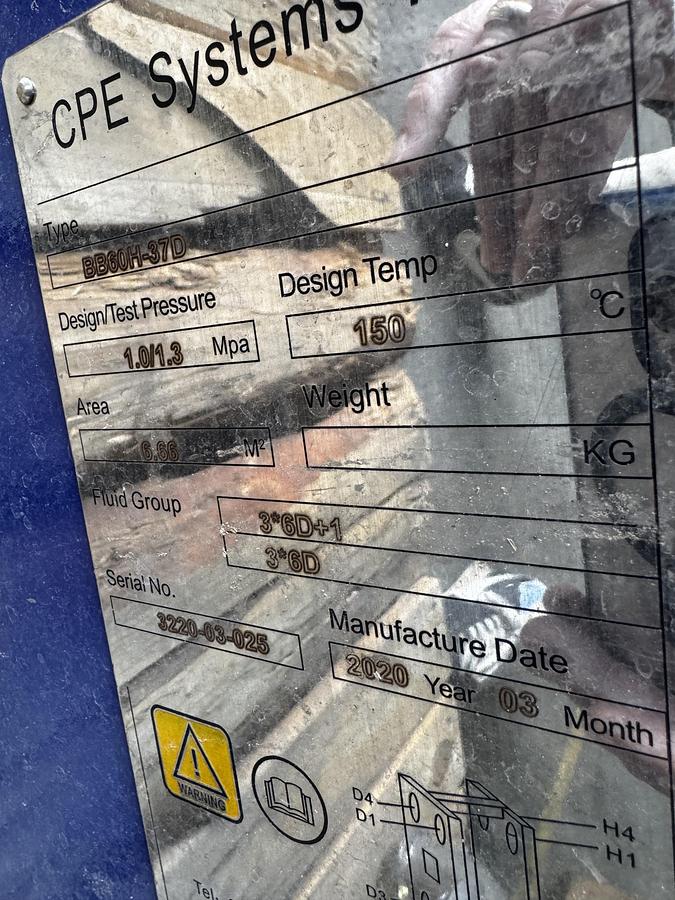

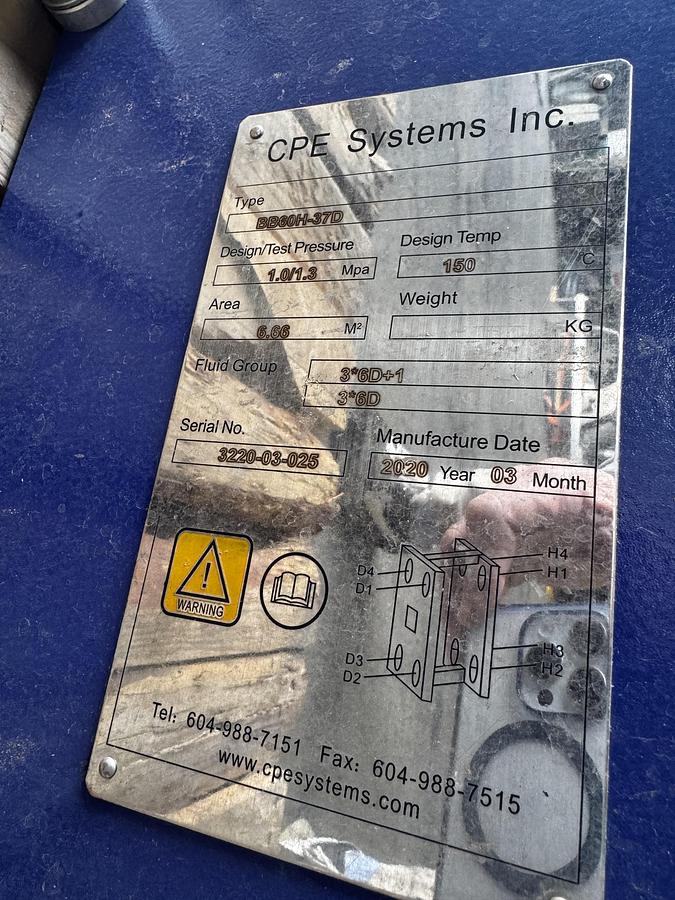

1.0 design pressure - 150deg C
