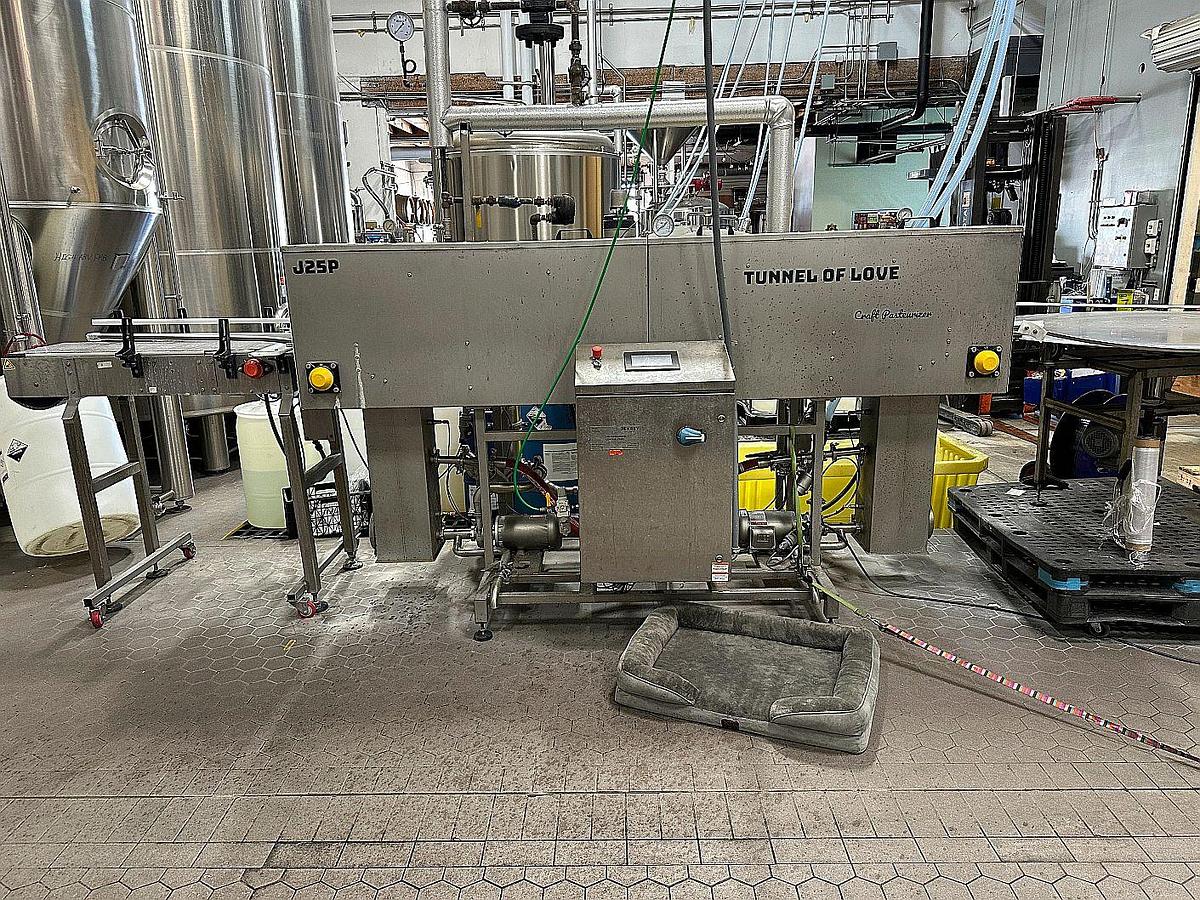

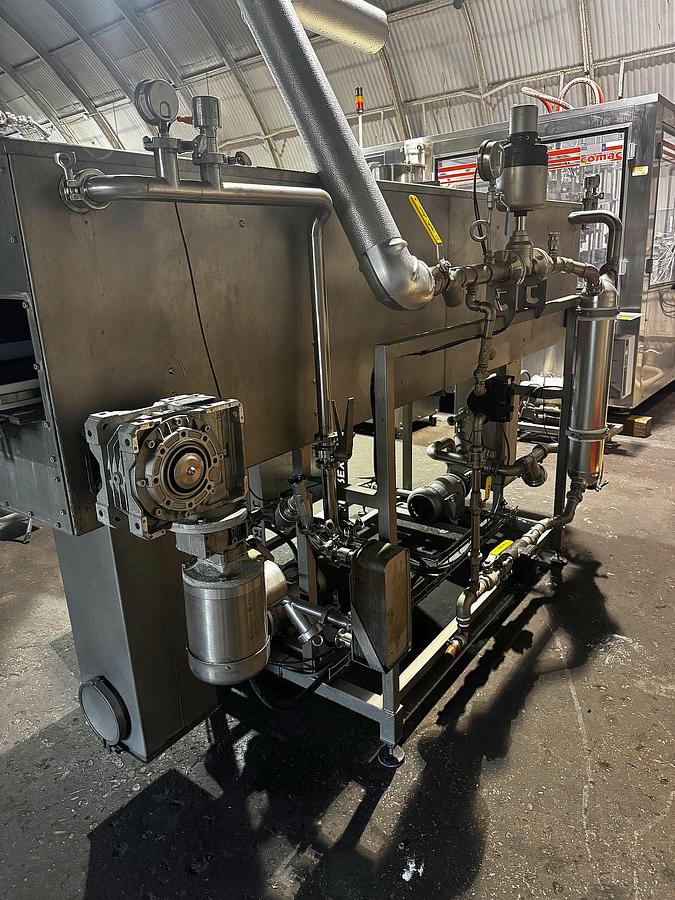

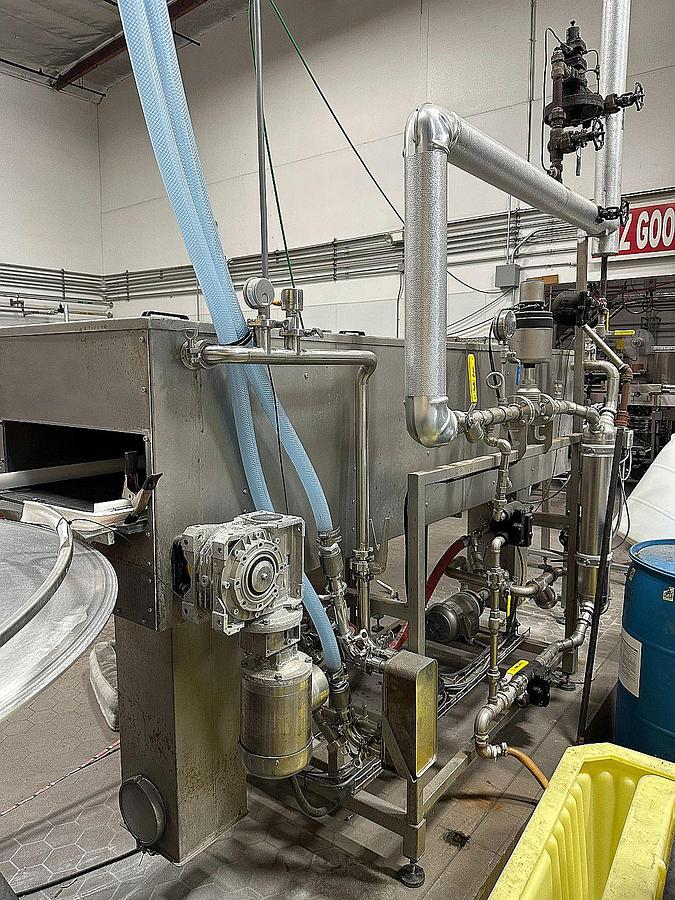

Used Jenrey J25P Tunnel Pasteurizer

(1) Available - Used Jenrey J25P tunnel pasteurizer - built new in 2022 and used sparingly in a brewery. New cost was over $100,000 in 2022.

Throughput 25 CPM, up to 50 PUs

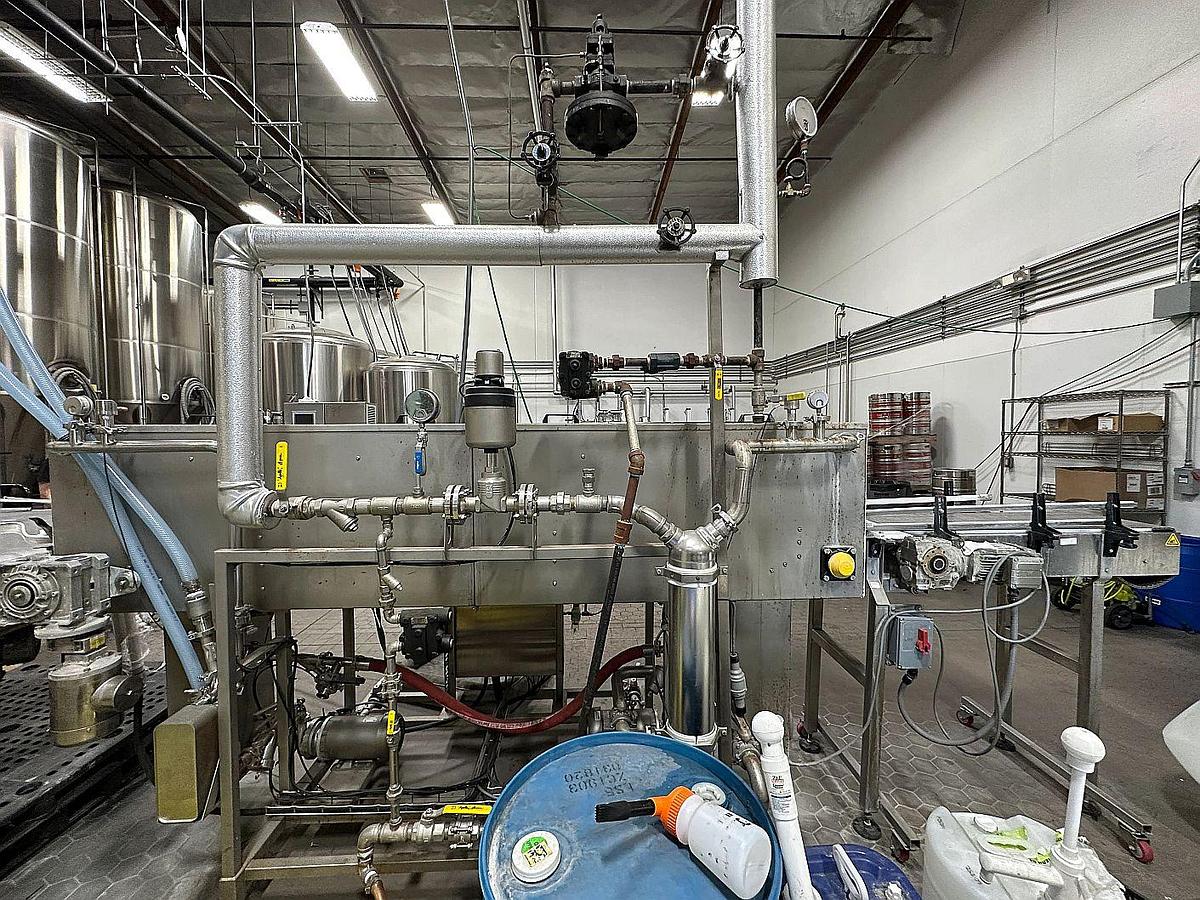

Steam Supply 205,000 BTU/hr - Low pressure steam

Steam Connections 2" Tri Clamp Supply / 1-1/4" NPT condensate return

Glycol Supply 84,000 BTU/hr - 9 USGPM @ 28°F (-2°C)

Glycol Connections 1-1/2" Tri Clamp Supply / 1" NPT Return

Water Supply 1" line at approx. 60 PSI (1" Tri Clamp Connections)

Compressed Air Supply 85 psi (6 bar) - 12 cfm (1/4" NPT connection)

Drains 1-1/2" Tri Clamp

Power Supply 208v, 3ph, 60hz, 18 FLA

Model: J25P

Dimensions: 60” W x 165” L x 65” H

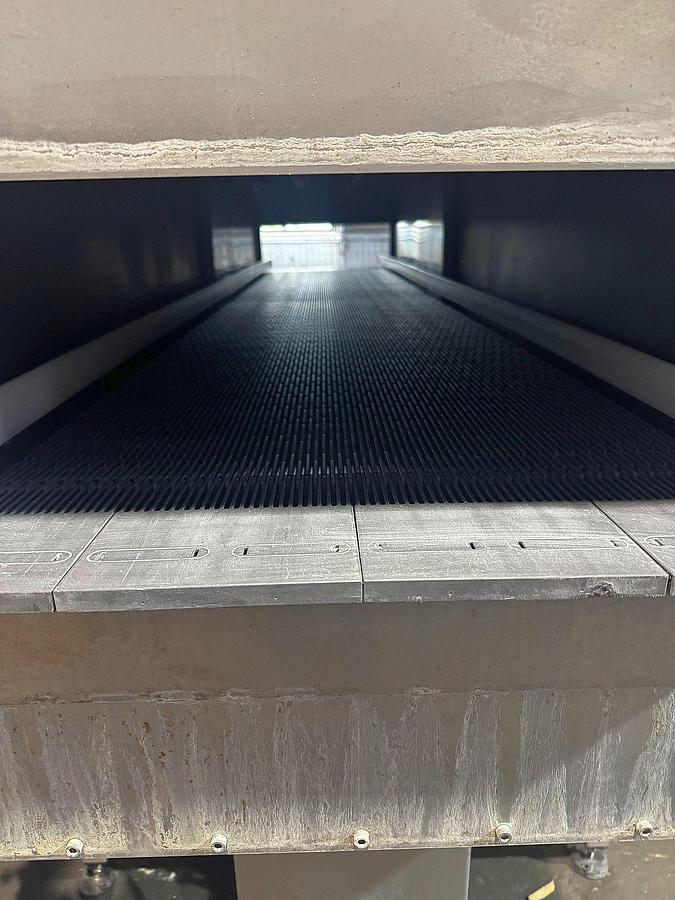

Tunnel length: 115”

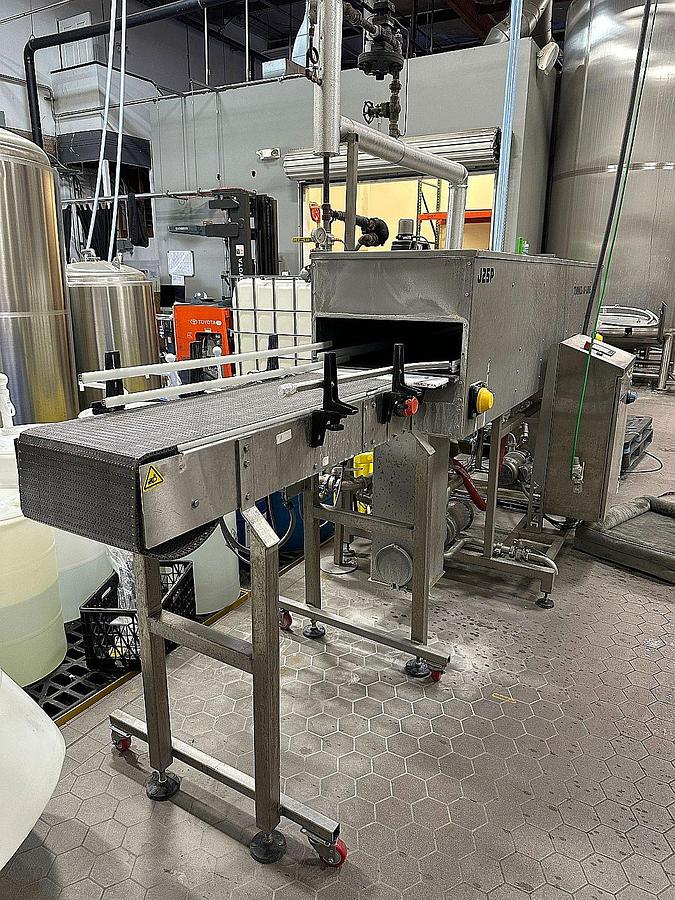

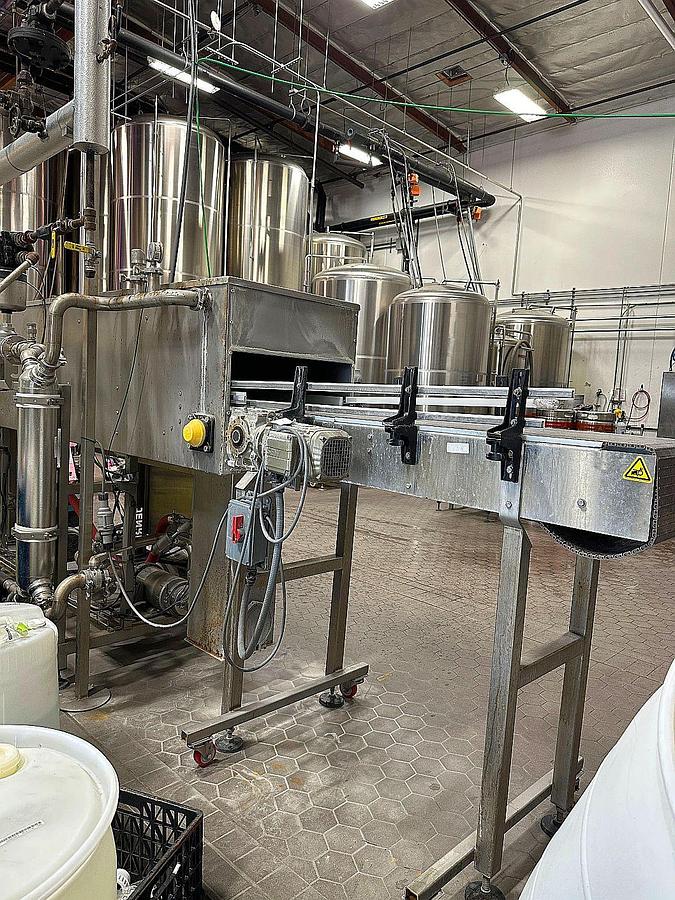

Includes 50" long infeed conveyance

Jenrey Pasteurizers are designed to offer some of the smallest footprints available in the industry today

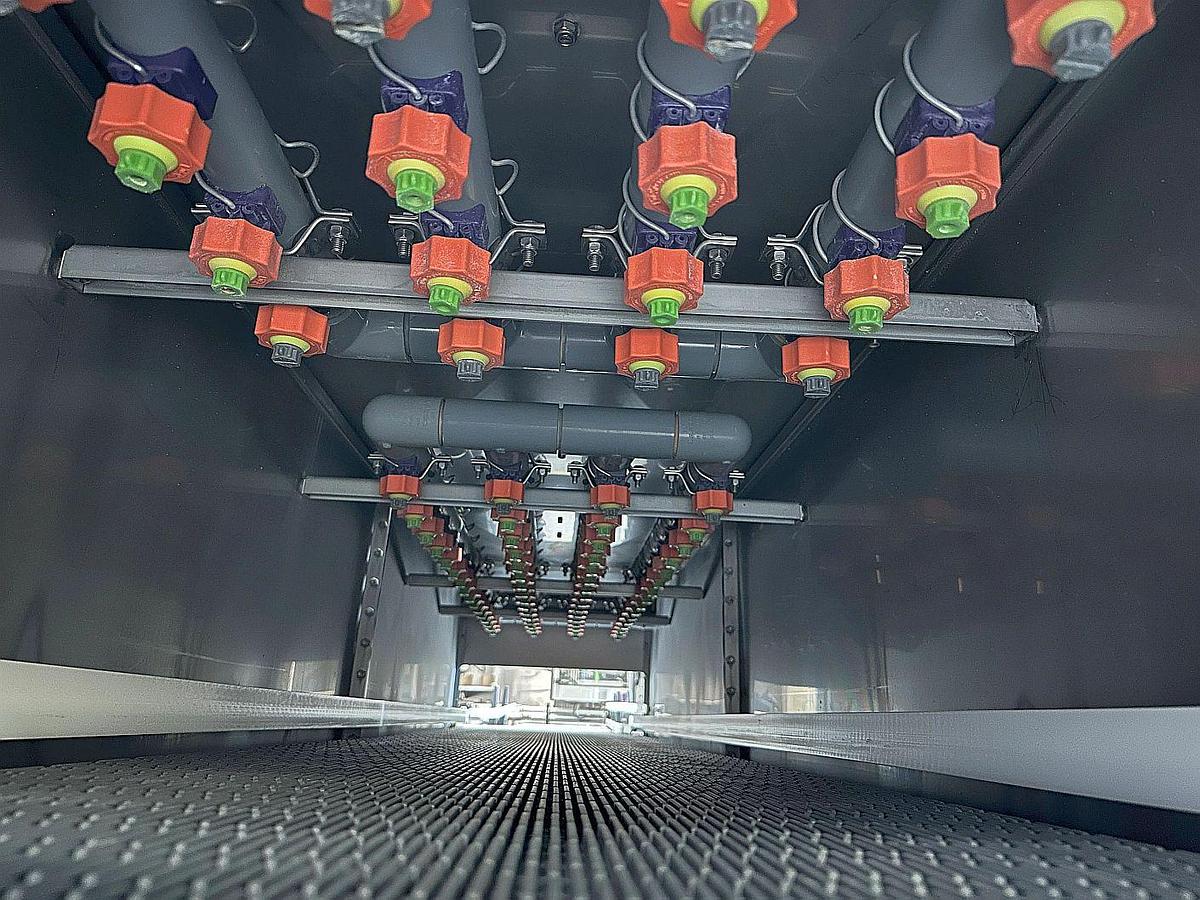

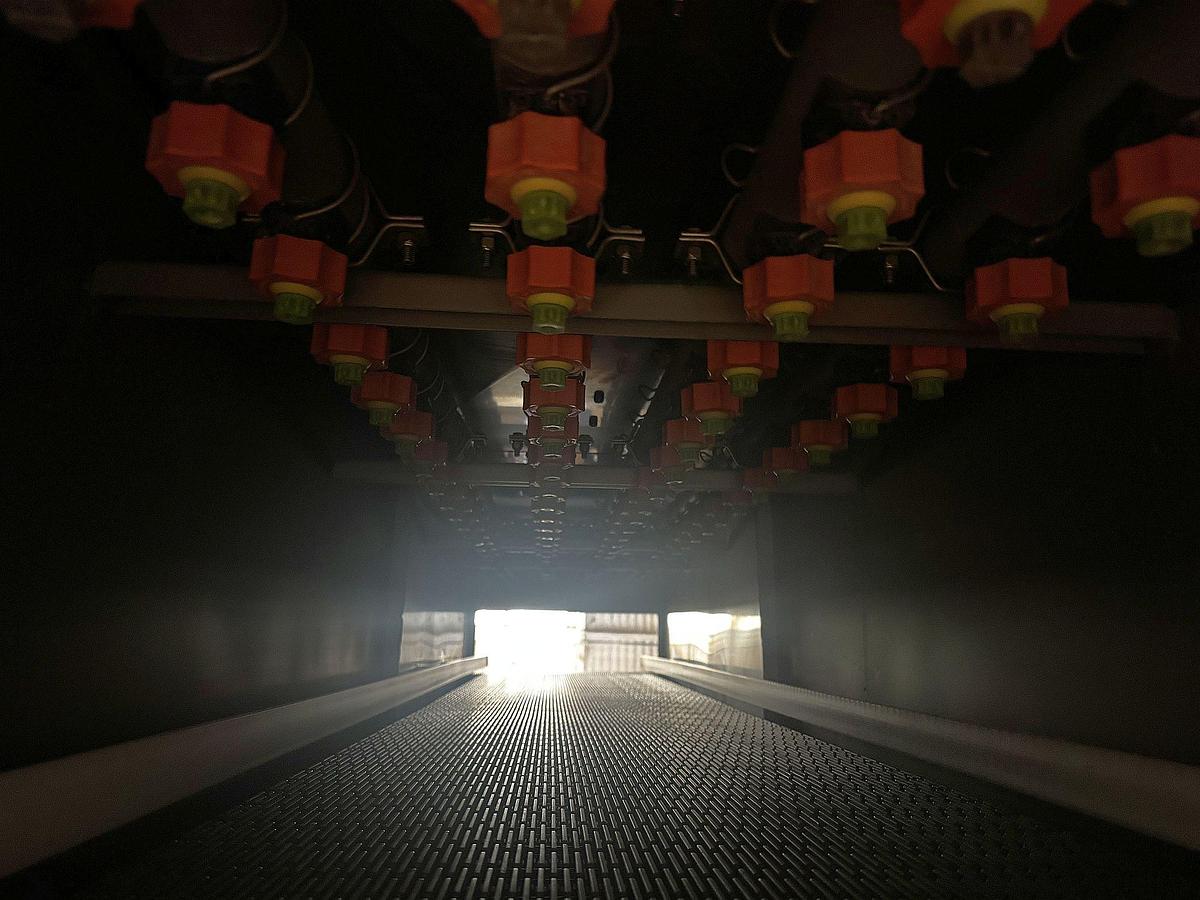

with industry leading quick change, clog resistant spray nozzles for high efficiency continuous

operation.

-    Constructed of 304 SS and equipped with adjustable supporting feet

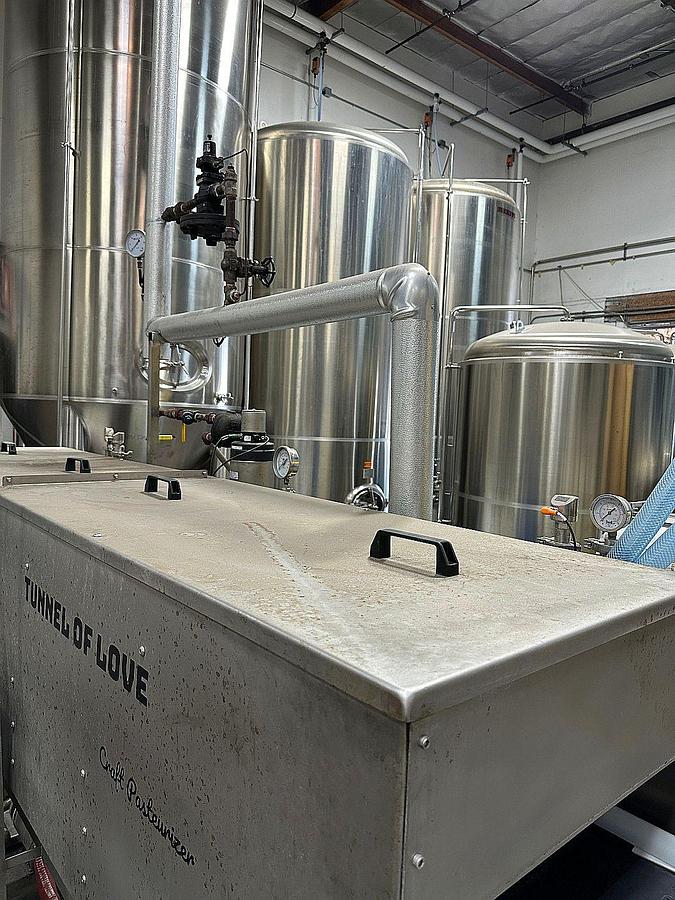

-    Sectional covers can be easily opened for open access to the system, made of 304 SS

-    Quick access SS strainers for ease of cleaning and maintenance

-    Sumps with level sensors and quick access cleanouts

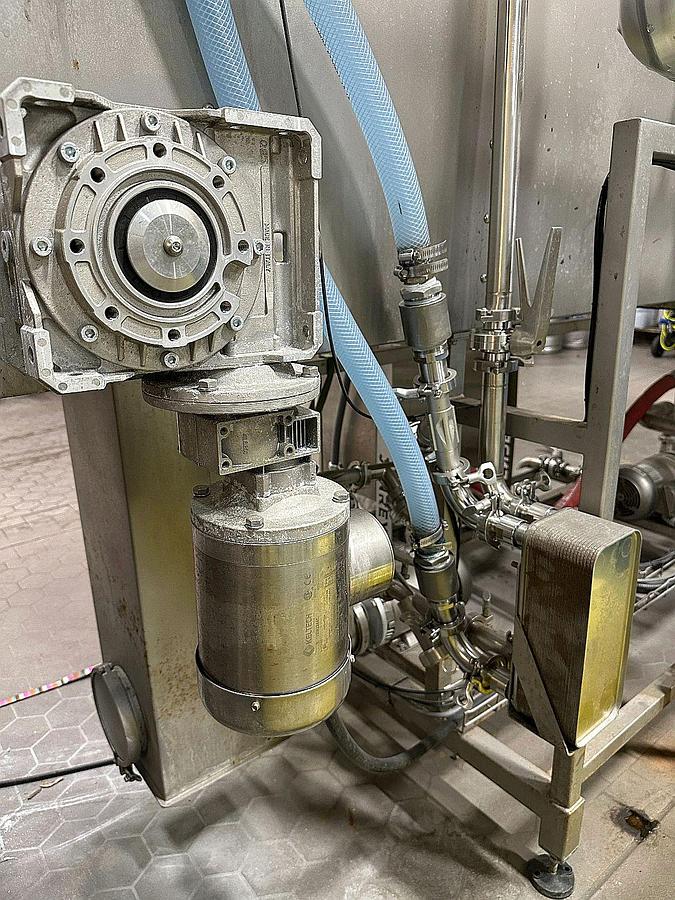

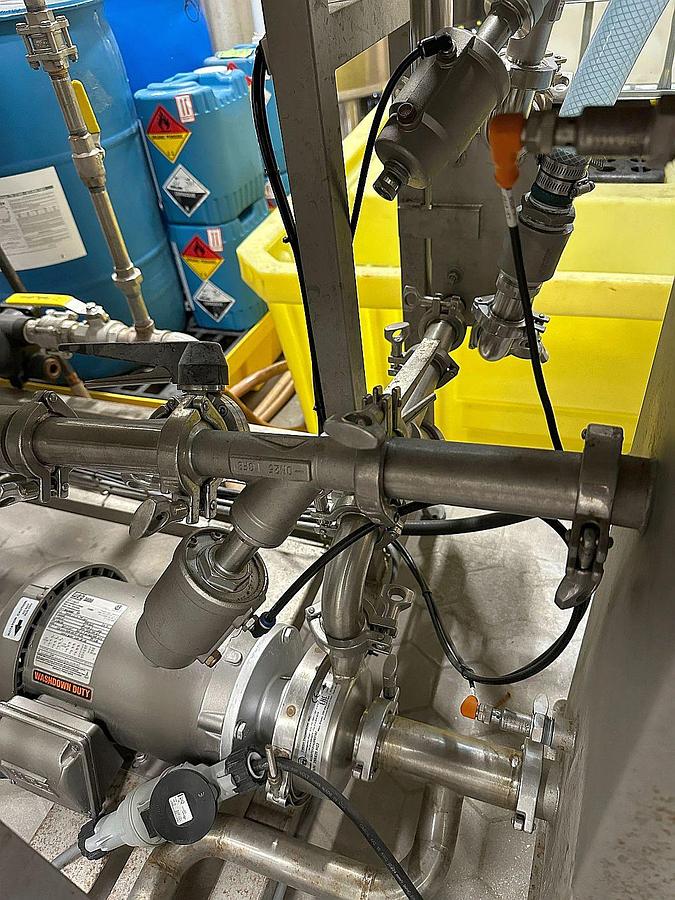

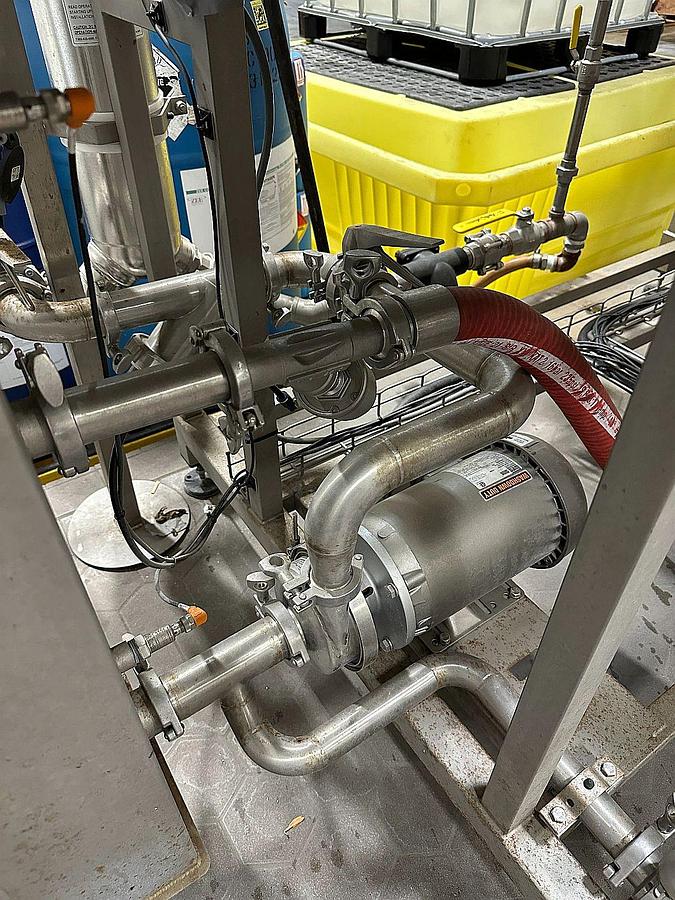

-    Centrifugal pumps for water circulation

-    Temperature transmitters for the control and management of operating parameters

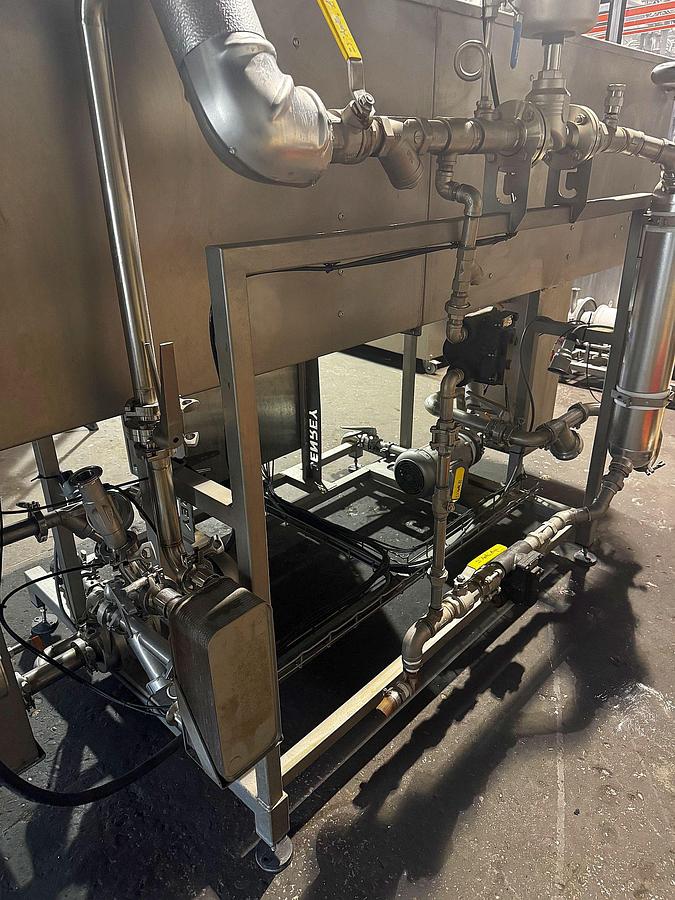

-    Series of automatic valves for water flow control to the tunnel sections

-    Modulating valve for steam or hot water control to heat exchanger for heating section

-    Automatic valve for glycol control to heat exchanger for cooling section

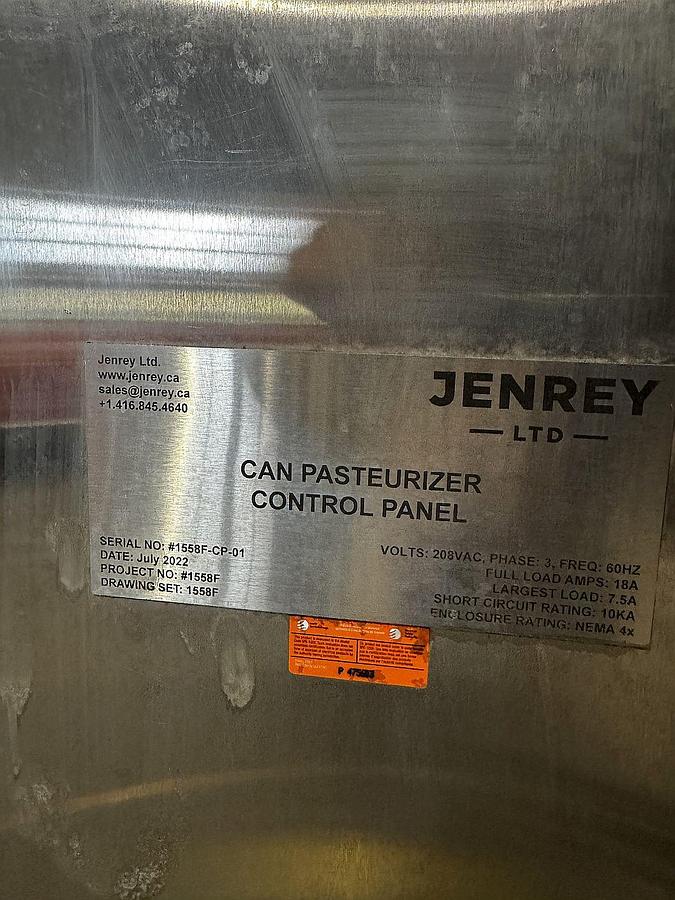

-    Nema 4x Slope top 304 SS control panel (electrical cabinet)

-    Data logger supplied for temperature, time and PU verification / calibration
