Letina T1180L / 312Gal Hich Pressure Sparkling Tank

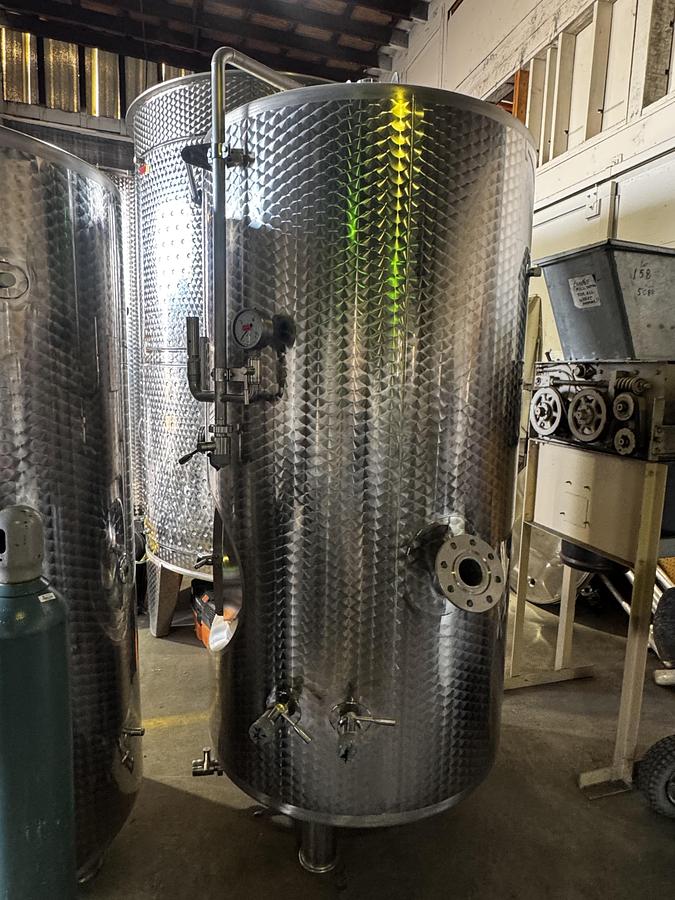

(1) available - never used - Letina T1180 / 312 Gallon hich pressure jacketed tank for carbonating sparkling wine, cider, seltzer, or other beverages.

- 3 legs, height 400 mm, closed

- dished bottom and top

- working pressure 6 bar

- insulation 60 mm, PU foam

- stainless steel clad

- fitting on top

- CIP pipe for cleaning

- ladder support

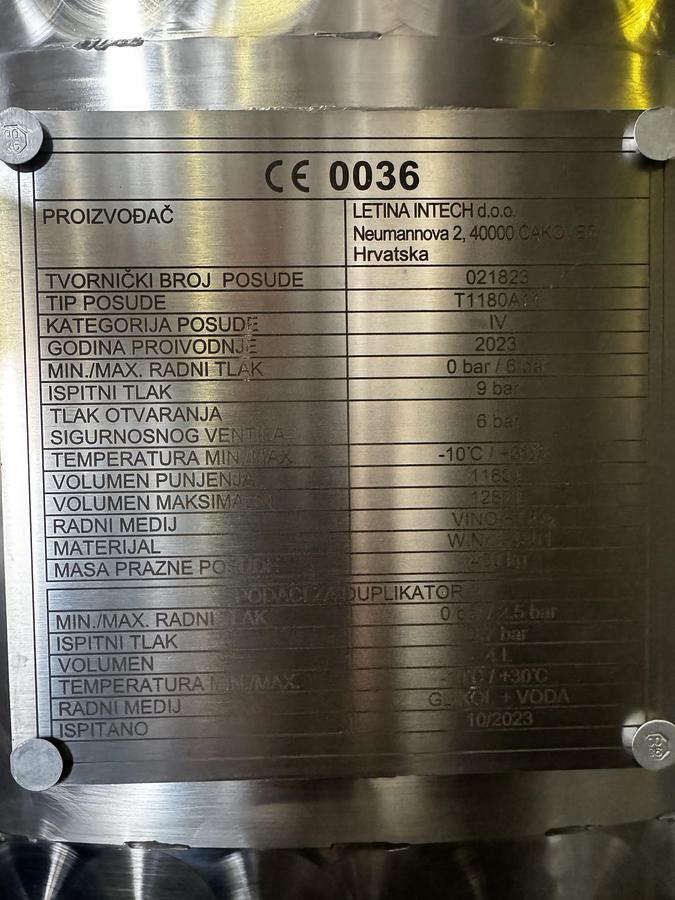

- type plate with note card

- thermometer, analog

- sample tap DIN 15

- manometer

- PRV security valve

- manway door, oval

- level indicator, dia. 16 mm, scaled, closed

- cooling jacket, 1.2 m2, max. 2.5 bar

- thermowell

- ball valve, DIN 32, with carbonation stone

- partial discharge, ball valve, DIN 32, 2 pc

- total discharge, ball valve, DIN 32

- fixed stirrer, 0.75 kW, 1400 rpm

- material AISI 304, BA, mirror inside, circle polished outside

6 Bar pressure rating andf 312 gallon usable capacity. Flange to mount a mixer on the sidewall but mixer is not included.
